Holding Bracket XST D28

Product information "Holding Bracket XST D28"

Delivery Countries:
Worldwide

Description:

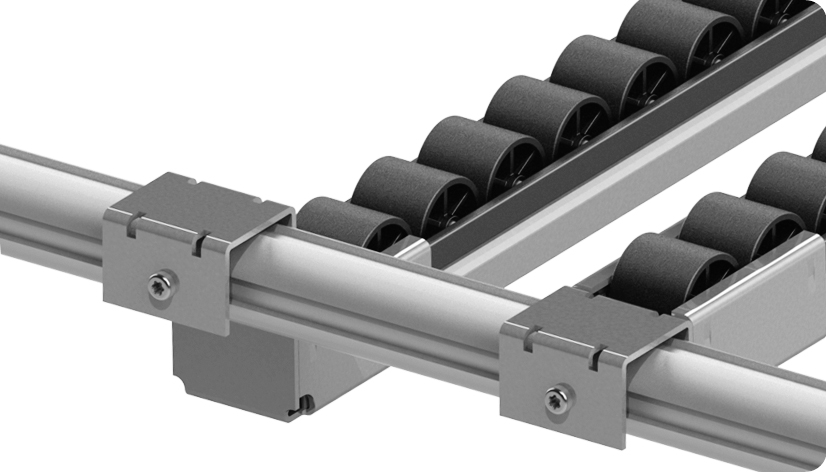

To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping out

Material:
Steel

Specials:
Other surfaces, other colors on request

Surface:
Zinc plated
(ECLASS 6.0): 36120490
(ECLASS 7.0): 36120490
(ECLASS 8.0): 36120490
(ECLASS 9.0): 36120490
(ECLASS 10.0): 36120490
(ECLASS 11.0): 36120492
(ECLASS 12.0): 36120492
(ECLASS 13.0): 36120492
Customs Tariff Number Export: 73269098
Model: For roller tracks XST
Pack Quantity: 10 pieces
Weight (g): 135.8
Zolltarifnummer: 73269098900
pA Number: 127717

Variants

Product ID Fig. Version
062MHD28M Without end stop
062MHSD28M With end stop
