Holding Bracket XST D28
Product number:
062MHSD28M
Product information "Holding Bracket XST D28"
Delivery Countries:
Worldwide
Description:

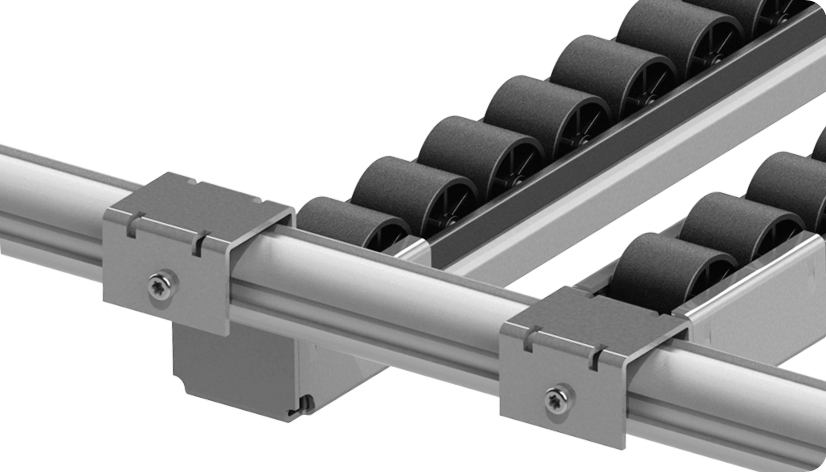

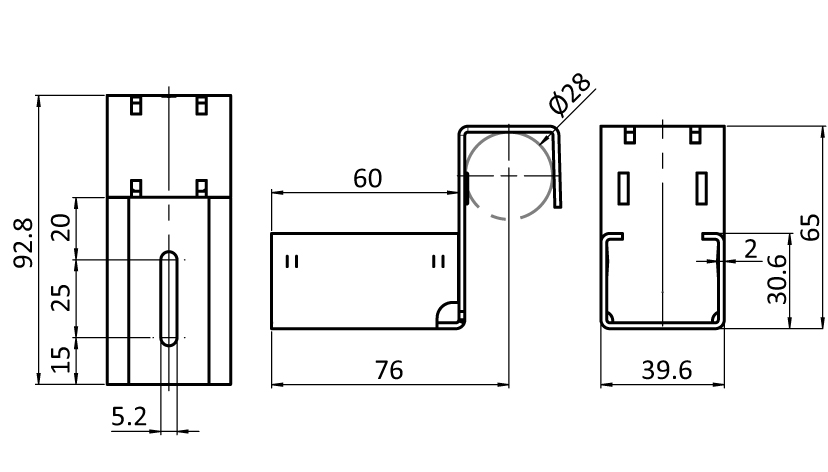

To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping out
Material:
Steel
Specials:
Other surfaces, other colors on request
Surface:
Zinc plated
Worldwide
Description:
To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping out
Material:
Steel
Specials:
Other surfaces, other colors on request
Surface:
Zinc plated
| (ECLASS 6.0): | 36120490 |
|---|---|
| (ECLASS 7.0): | 36120490 |
| (ECLASS 8.0): | 36120490 |
| (ECLASS 9.0): | 36120490 |
| (ECLASS 10.0): | 36120490 |
| (ECLASS 11.0): | 36120492 |
| (ECLASS 12.0): | 36120492 |
| (ECLASS 13.0): | 36120492 |
| Customs Tariff Number Export: | 73269098 |
| Model: | For roller tracks XST |
| Pack Quantity: | 10 pieces |
| Weight (g): | 156.1 |
| Zolltarifnummer: | 73269098900 |
| pA Number: | 127716 |
