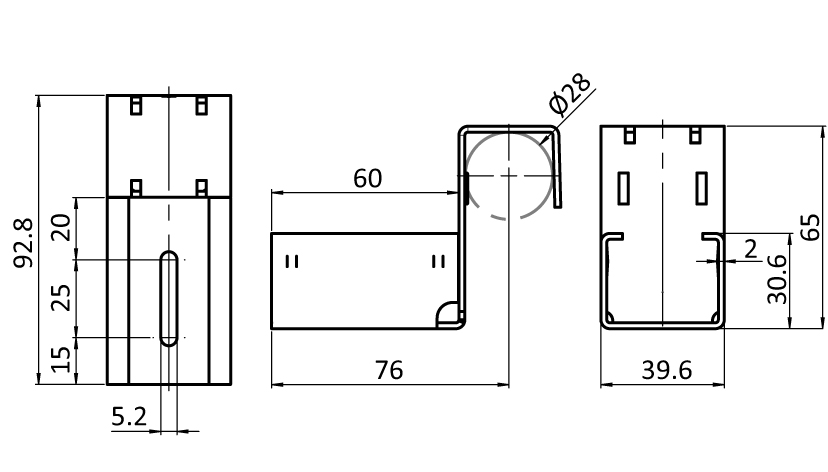

Holding Bracket XST D28

Description:

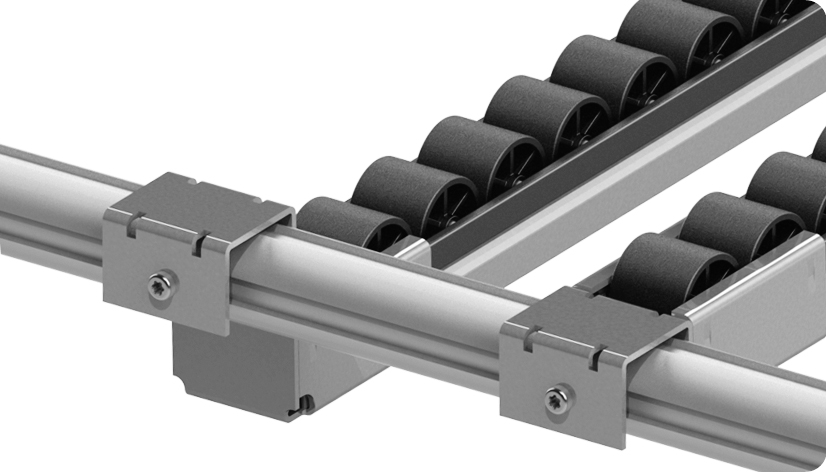

To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping out
Material:
Steel

Surface:
Zinc plated

Specials:
Other surfaces, other colors on request

Delivery Countries:
Worldwide
Pack Quantity: 20 Stück
Model: For roller tracks XST
Weight (g): 135.8
ERP Number: 127717

Variants

Part # Version Fig. CAD
Without end stop ①
With end stop ②

Classifications

Zolltarifnummer
73269098900

Certificates

Tags

Profile Type Profile Type B
Modular Dimension Modular Dimension D28
Profile Form Round Tubular Profiles
Application Area Industrial Work Stations, Intralogistics
