Holding Bracket XST D30
Regular price:
€0.00
Part #:
062MHD30MS01
Pack Quantity:
10 pieces
Description:

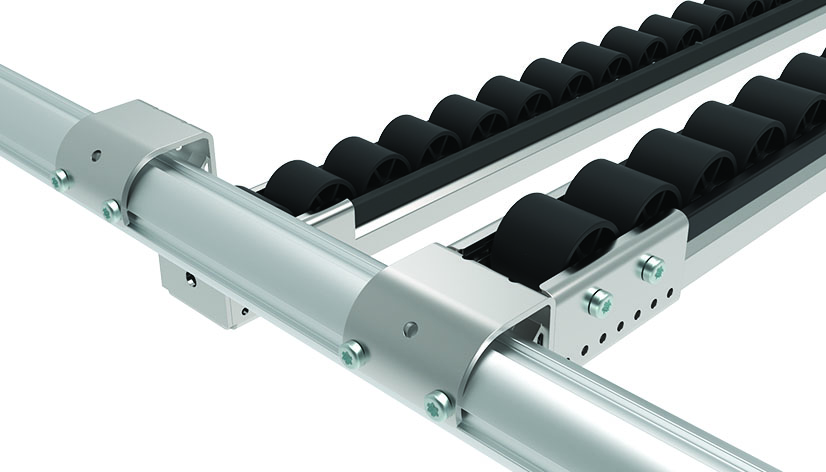

To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping out
To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping out
Material:
Steel
Surface:
Zinc plated
Assembly Set:
6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
Specials:
Other surfaces, other colors on request
Delivery Countries:
Worldwide
Steel
Surface:
Zinc plated
Assembly Set:
6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
Specials:
Other surfaces, other colors on request
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | For roller tracks XST |
| Weight (g): | 161.0 |
| ERP Number: | 146521 |
Product Portraits
Classifications
- ECLASS 6.0
- 36120490
- ECLASS 7.0
- 36120490
- ECLASS 8.0
- 36120490
- ECLASS 9.0
- 36120490
- ECLASS 10.0
- 36120490
- ECLASS 11.0
- 36120492
- ECLASS 12.0
- 36120492
- ECLASS 13.0
- 36120492
- Zolltarifnummer
- 73269098900
- Customs Tariff Number Export
- 73269098
Certificates
