Holding Bracket XST D30

Product information "Holding Bracket XST D30"

Assembly Set:
6 self-drilling screws DIN 7504 Form N - 3.9 x 16

Delivery Countries:
Worldwide

Description:

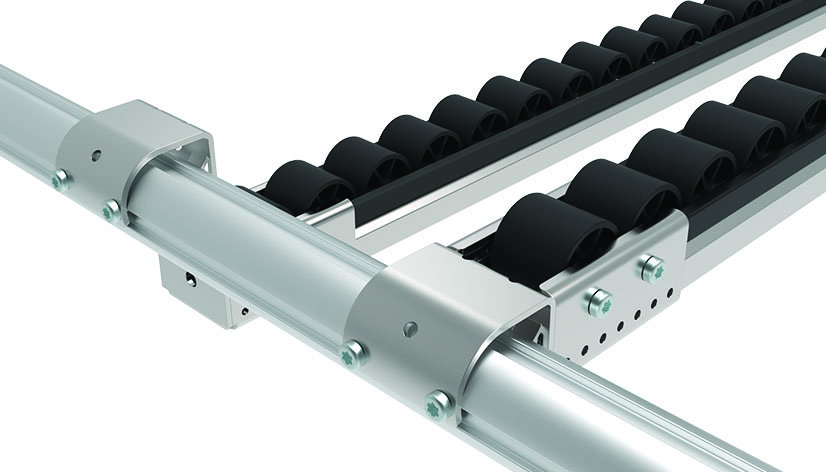

To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping out

Material:
Steel

Specials:
Other surfaces, other colors on request

Surface:
Zinc plated
(ECLASS 6.0): 36120490
(ECLASS 7.0): 36120490
(ECLASS 8.0): 36120490
(ECLASS 9.0): 36120490
(ECLASS 10.0): 36120490
(ECLASS 11.0): 36120492
(ECLASS 12.0): 36120492
(ECLASS 13.0): 36120492
Customs Tariff Number Export: 73269098
Model: For roller tracks XST
Pack Quantity: 10 sets
Weight (g): 161.0
Zolltarifnummer: 73269098900
pA Number: 146521

Variants

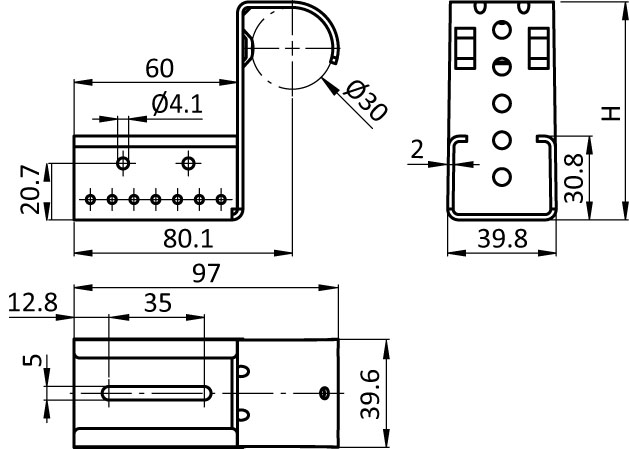

Product ID H (mm) Fig. Version
062MHD30MS01 30.8 Without end stop
062MHSD30MS01 80.0 With end stop
062MHSD30MS03 65.5 With end stop
