Leveling Caster with Bolt Hole Thread (Set)

Product information "Leveling Caster with Bolt Hole Thread (Set)"

Color:
Housing: White aluminum ≈ RAL 9006
Adjustment wheel: Orange ≈ RAL 2004
Stamp: Black
Roller: Black

Delivery Countries:
Worldwide

Description:

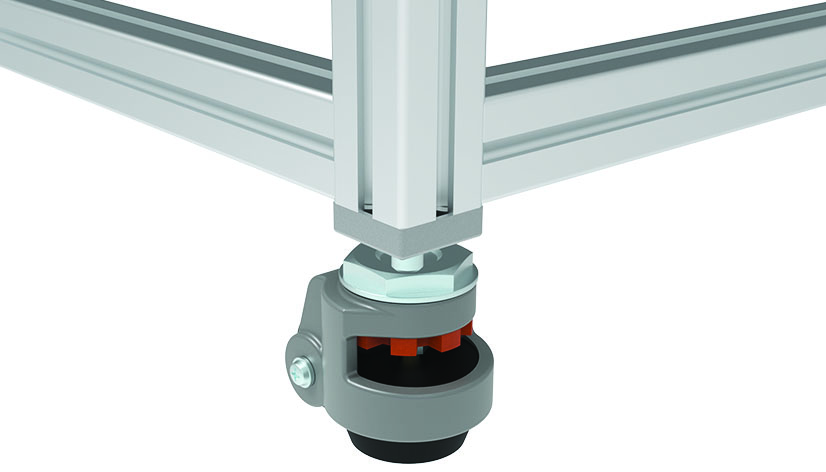

Reliable leveling caster with bolt hole thread M12
For fixation to transport and base plates, threaded sleeves or threaded bushes;

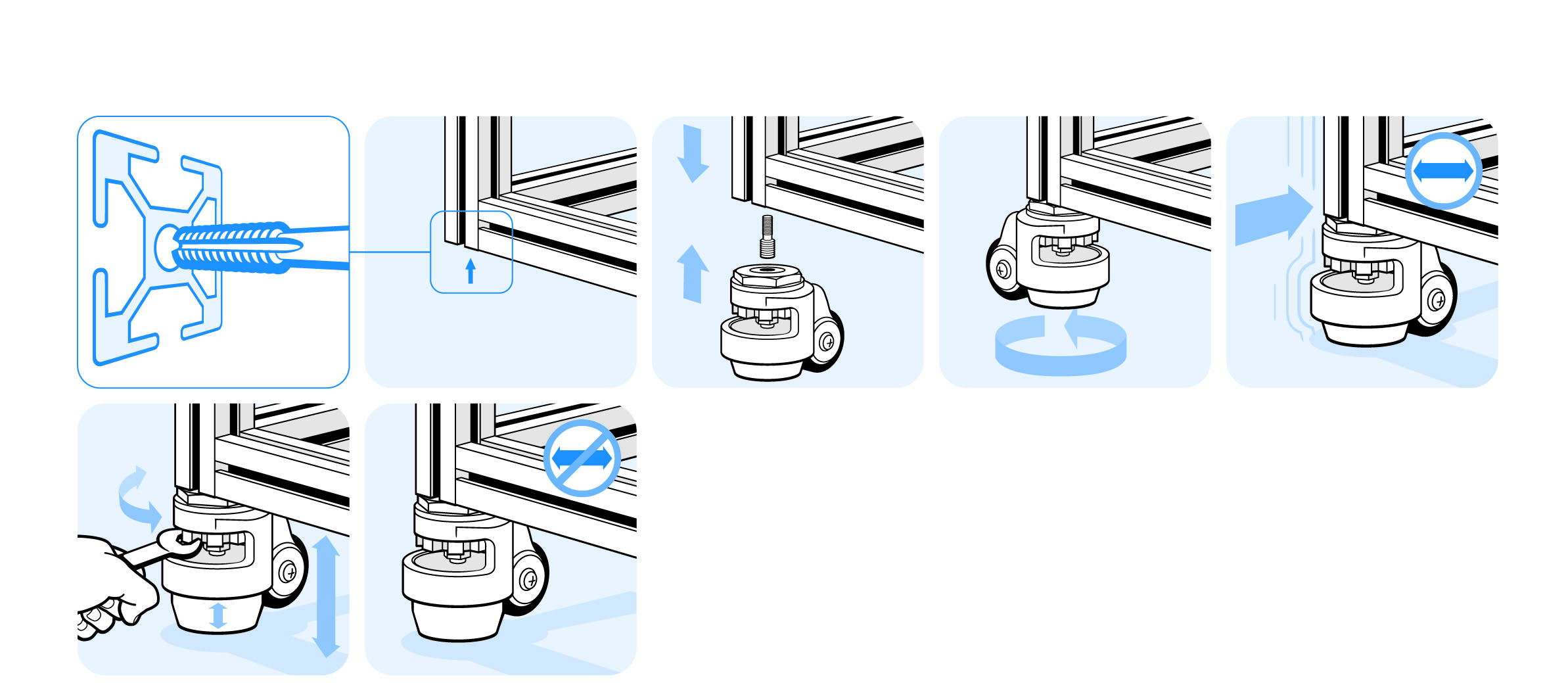

Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrench

Material:
Bolt hole plate: Steel
Housing: Aluminum die-cast
Adjustment wheel: Plastic PA
Stamp: Rubber NBR
Roller: Plastic PA

Set:
1 leveling casters with bolt hole thread
1 double threaded bolts M8/M12
1 double threaded bolts M12/M12
1 open-end wrench

Surface:
Bolt hole plate: Zinc plated
Housing: Powder coated

Tip:
Compatible Transport and Base Plates with thread M8 or M12 on request

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23370290
(ECLASS 7.0): 23370290
(ECLASS 8.0): 23370290
(ECLASS 9.0): 23370290
(ECLASS 10.0): 23370290
(ECLASS 11.0): 23370290
(ECLASS 12.0): 23370290
(ECLASS 13.0): 23370290
Model: With bolt hole thread
Pack Quantity: 1 set
Weight (g): 2588.0

Variants

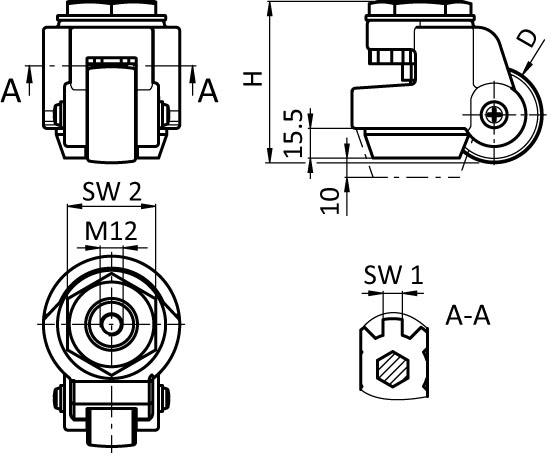

Product ID SW 2 Max. Load per Lifting Unit (kg) D (mm) H (mm) SW 1
098LF050AF46S01 46 250 (M8/M12) 250 (M12/M12) 50 84 11
098LF062AF65S01 65 350 (M8/M12) 500 (M12/M12) 62 103 12
