Leveling Caster with Bolt Hole Thread (Set)
Regular price:
€0.00
Part #:
098LF062AF65S01
Pack Quantity:
1 set
Product information "Leveling Caster with Bolt Hole Thread (Set)"
Color:
Housing: White aluminum ≈ RAL 9006
Adjustment wheel: Orange ≈ RAL 2004
Stamp: Black
Roller: Black
Delivery Countries:
Worldwide
Description:

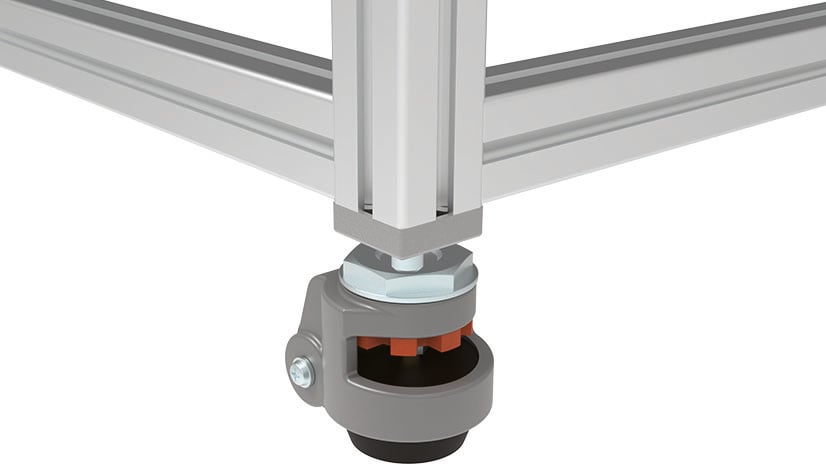

Reliable leveling caster with bolt hole thread M12
For fixation to transport and base plates, threaded sleeves or threaded bushes;

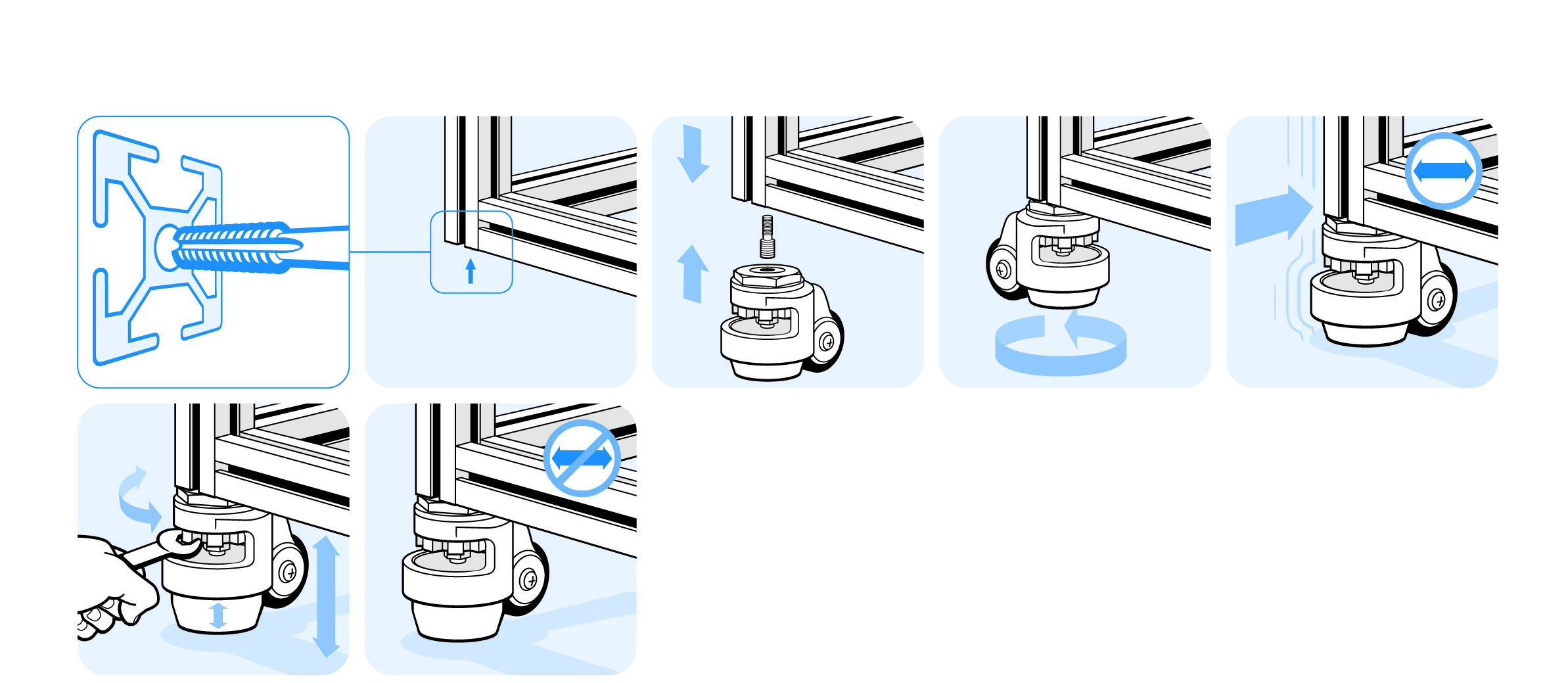

Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrench
Material:
Bolt hole plate: Steel
Housing: Aluminum die-cast
Adjustment wheel: Plastic PA
Stamp: Rubber NBR
Roller: Plastic PA
Set:
1 leveling casters with bolt hole thread
1 double threaded bolts M8/M12
1 double threaded bolts M12/M12
1 open-end wrench
Surface:
Bolt hole plate: Zinc plated
Housing: Powder coated
Tip:
Compatible Transport and Base Plates with thread M8 or M12 on request
Housing: White aluminum ≈ RAL 9006
Adjustment wheel: Orange ≈ RAL 2004
Stamp: Black
Roller: Black
Delivery Countries:
Worldwide
Description:
Reliable leveling caster with bolt hole thread M12
For fixation to transport and base plates, threaded sleeves or threaded bushes;
Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrench
Material:
Bolt hole plate: Steel
Housing: Aluminum die-cast
Adjustment wheel: Plastic PA
Stamp: Rubber NBR
Roller: Plastic PA
Set:
1 leveling casters with bolt hole thread
1 double threaded bolts M8/M12
1 double threaded bolts M12/M12
1 open-end wrench
Surface:
Bolt hole plate: Zinc plated
Housing: Powder coated
Tip:
Compatible Transport and Base Plates with thread M8 or M12 on request
| Pack Quantity: | 1 set |
|---|---|
| Model: | With bolt hole thread |
| Weight (g): | 4688.0 |
| ECLASS 6.0: | 23370290 |
| ECLASS 7.0: | 23370290 |
| ECLASS 8.0: | 23370290 |
| ECLASS 9.0: | 23370290 |
| ECLASS 10.0: | 23370290 |
| ECLASS 11.0: | 23370290 |
| ECLASS 12.0: | 23370290 |
| ECLASS 13.0: | 23370290 |
| Zolltarifnummer: | 76169910990 |
| Customs Tariff Number Export: | 76169910 |
| ERP Number: | 150348 |
