Magnifying Lamp D160 with Jointed Arm (Set)

Product information "Magnifying Lamp D160 with Jointed Arm (Set)"

Color:
Housing: Gray
Cover: Gray

Delivery Countries:
Worldwide

Description:
For fatigue-free and ergonomic precision work without irritating shading; LED ring lamp of energy efficiency class A++ with push button for stepless dimming, color temperature neutral white 5000 K, color rendering Ra >80, power consumption 15 W, protection class IP20;
Large field of vision thanks to plastic lens ⌀ 160 mm with 3.5 diopters for distortion-free magnification of 190%, a cover prevents scratches and damages caused by focused light;

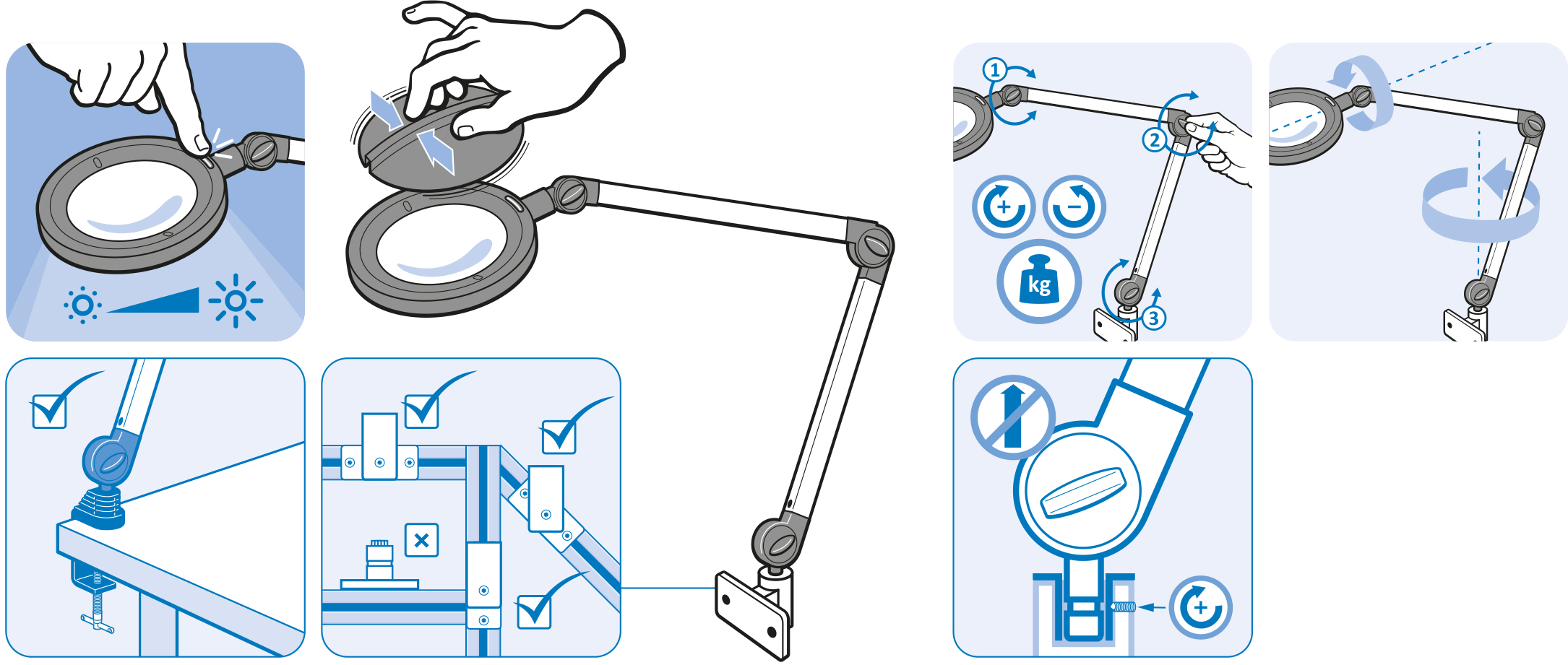

Well-balanced jointed arm with adjustable friction and large swivel range, 360° vertically rotatable; head joint 270° horizontally pivotable;
Mounting with optional adapter

Material:
Jointed Arm: Aluminum
Housing: Plastic
Lens: Acrylic glass PMMA
Cover: Plastic PC

Set:
1 magnifying lamp
1 plug-in power supply protection class II 100-240V, 50/60 Hz with 3 m connecting cable
3 interchangeable adapter EU/UK/US

Surface:
Jointed Arm: Anodized

Tip:
Compatible Side Adapter see 069A4090ZN1635,
Compatible Table Clamp Adapter on request
(ECLASS 6.0): 27110390
(ECLASS 7.0): 27110390
(ECLASS 8.0): 27110390
(ECLASS 9.0): 27110390
(ECLASS 10.0): 27110390
(ECLASS 11.0): 27110390
(ECLASS 12.0): 27110390
(ECLASS 13.0): 27110390
Customs Tariff Number Export: 94052140
Model: With adjustable friction
Pack Quantity: 1 set
Weight (g): 1600.0
Zolltarifnummer: 94052140000
pA Number: 147288

Variants

Product ID ØD (mm)
063MAL50D16035 160
