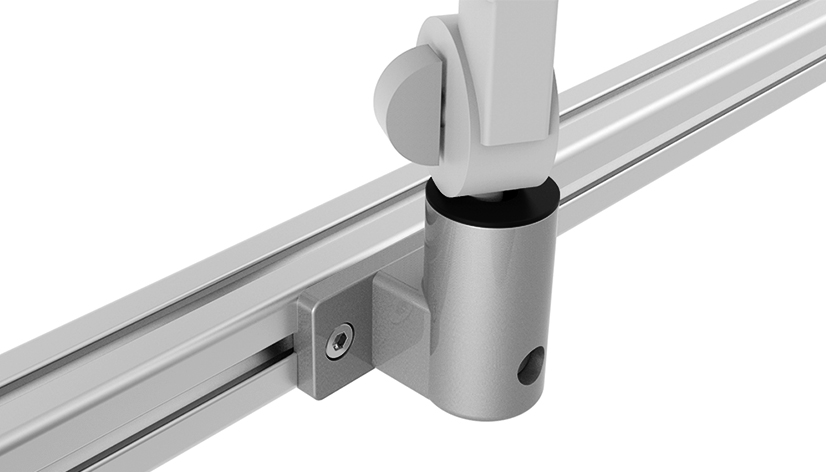

Side Adapter for Magnifying Lamp D160 with Jointed Arm (Set)

Product information "Side Adapter for Magnifying Lamp D160 with Jointed Arm (Set)"

Color:
Bearing bush: Black
Mounting flange: Alu color
Mounting adapter: Alu color

Delivery Countries:
Worldwide

Description:
for side mounting on profiles, posts, beams and walls; adapter rotatable for horizontal positioning before mounting; friction adjustable on horizontal axis

Material:
Bearing bush: Plastic POM
Mounting flange: Aluminum die-cast
Mounting adapter: Aluminum die-cast
Screws: Steel

Set:
1 bearing bush
1 mounting flange
1 mounting adapter
1 mounting screw DIN 6912 - M8 x 25
2 mounting screw DIN 6912 - M8 x16
1 threaded pin DIN 914 - M6 x 8

Surface:
Mounting flange: Lacquered
Mounting adapter: Lacquered
Screws: Zinc plated

Tip:
Compatible Magnifying Lamp see 063MAL50D16035
(ECLASS 6.0): 27110390
(ECLASS 7.0): 27110390
(ECLASS 8.0): 27110390
(ECLASS 9.0): 27110390
(ECLASS 10.0): 27110390
(ECLASS 11.0): 27110390
(ECLASS 12.0): 27110390
(ECLASS 13.0): 27110390
Customs Tariff Number Export: 76169910
Model: Profile 40 and up
Pack Quantity: 1 set
Weight (g): 410
Zolltarifnummer: 76169910990
pA Number: 147306

Variants

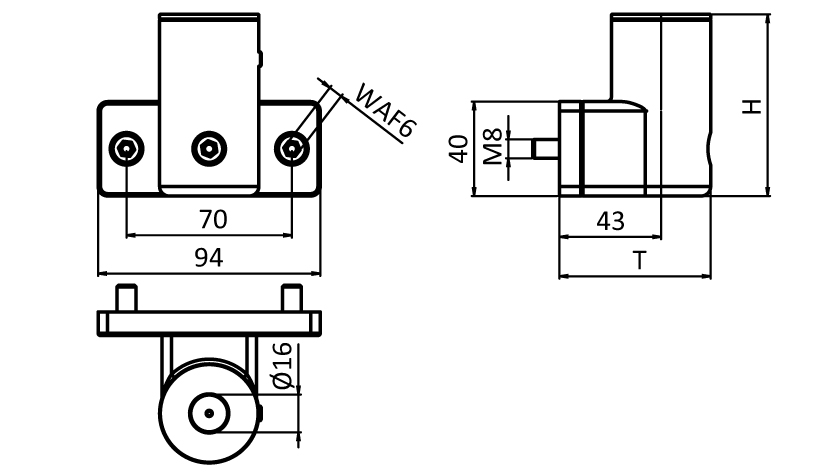

Product ID ØD (mm) H (mm) T (mm)
069A4090ZN1635 16 77 64
