Mini Hinge

Skip image gallery
Mini Hinge 095023R – product image
Mini Hinge – product image of all versions

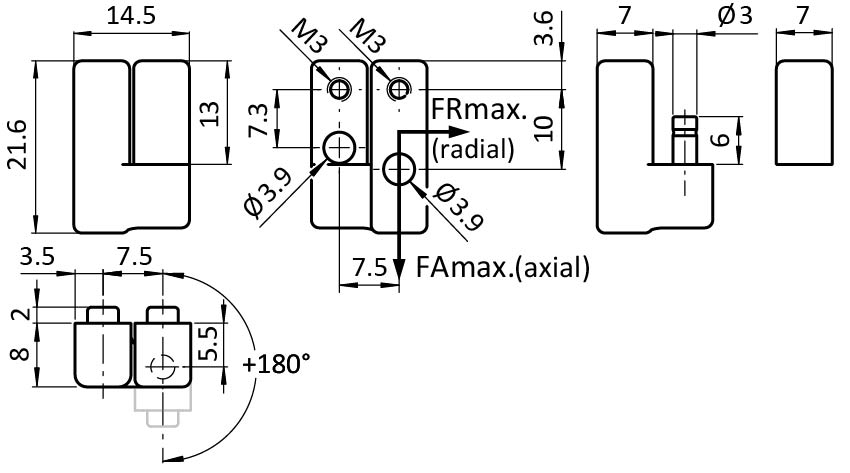

Mini Hinge – technical drawing

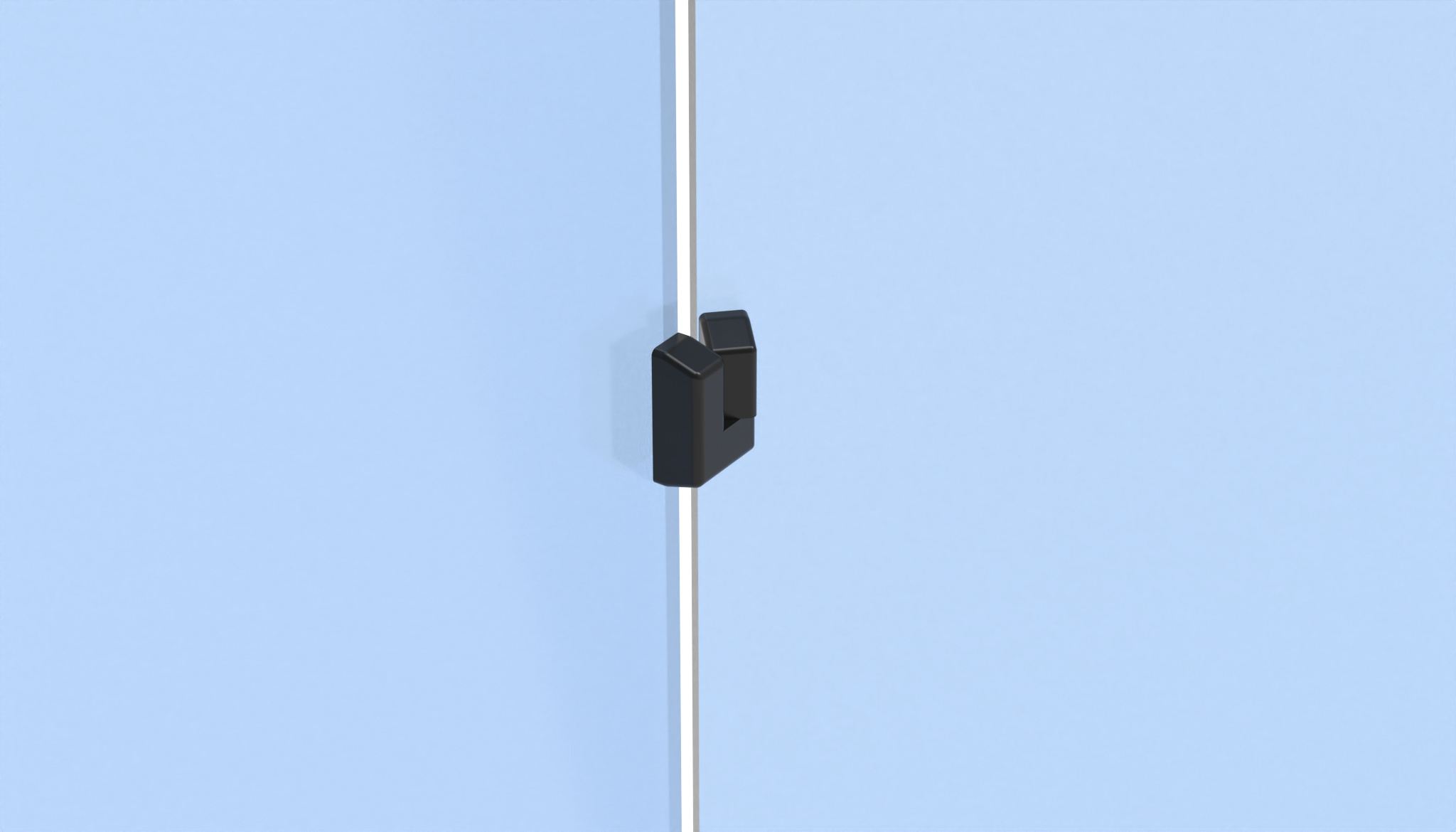

Mini Hinge – application example
Mini Hinge 095023R – product image
Mini Hinge – product image of all versions
Mini Hinge – technical drawing
Mini Hinge – application example

€0.00

Version
FAmax (N)
FRmax (N)
Part #: 095023R
Pack Quantity: 10 pieces
Description:
Mini hinge for various applications, especially in limited space
Material:
Wings: Zinc die-cast
Axle: Stainless steel

Surface:
Laquered

Color:
Black

Fastening:
From the back, using M3 screws

Delivery Countries:
Worldwide
Pack Quantity: 10 pieces
Model: Zinc die-cast, detachable
Weight (g): 12.0
ERP Number: 101538

Variants

Part # Version FAmax (N) FRmax (N) CAD
095023L
Left Hand, Lift off 100 100
095023R
Right Hand, Lift off 100 100

Product Portraits

Combi Hinges

Combi Hinges

FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leaves 25, 30, 35, 40, 45, 50 and 60, to your application.

To Product Portrait

Classifications

ECLASS 6.0
23219090
ECLASS 7.0
23219090
ECLASS 8.0
23219090
ECLASS 9.0
23219090
ECLASS 10.0
23219090
ECLASS 11.0
23219090
ECLASS 12.0
23219090
ECLASS 13.0
23219090
Zolltarifnummer
83021000900
Customs Tariff Number Export
83021000

Certificates

RoHS Certificate
REACH Certificate
POP Certificate
Conflict Minerals Certificate

Tags

Profile Type Profile Type B, Profile Type I
Profile Form T-slot Profiles
Application Area Machinery & Plant Engineering
