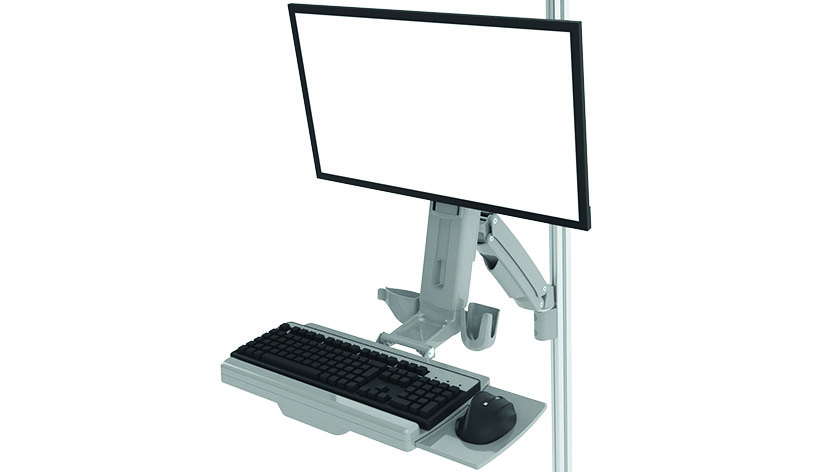

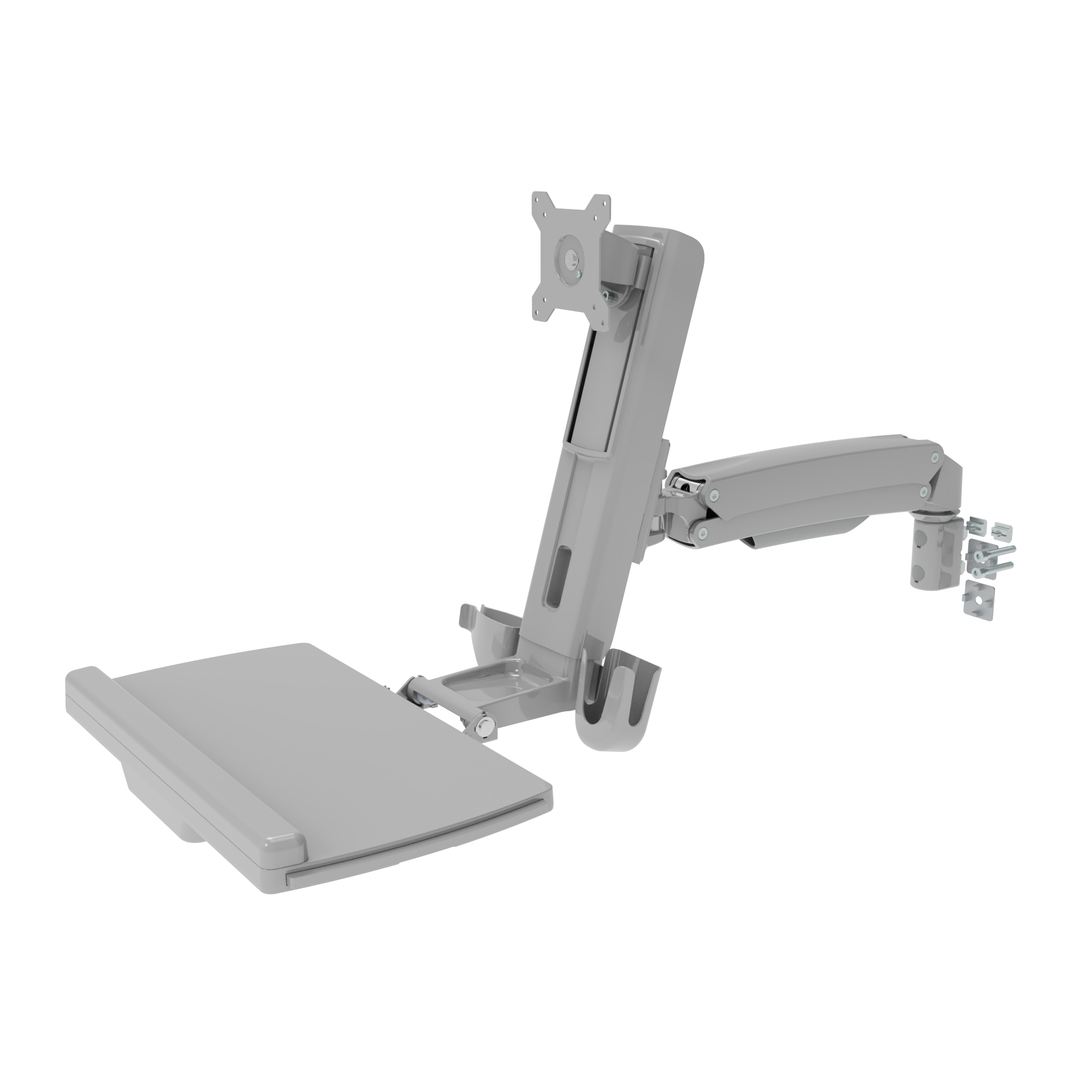

Monitor Work Station SIT / STAND 4-axis, Profile Attachment (Set)

Product information "Monitor Work Station SIT / STAND 4-axis, Profile Attachment (Set)"

Color:
Monitor Work Station: Gray
Cable management cover: Gray
Mounting flange: Alu color

Delivery Countries:
Worldwide

Description:

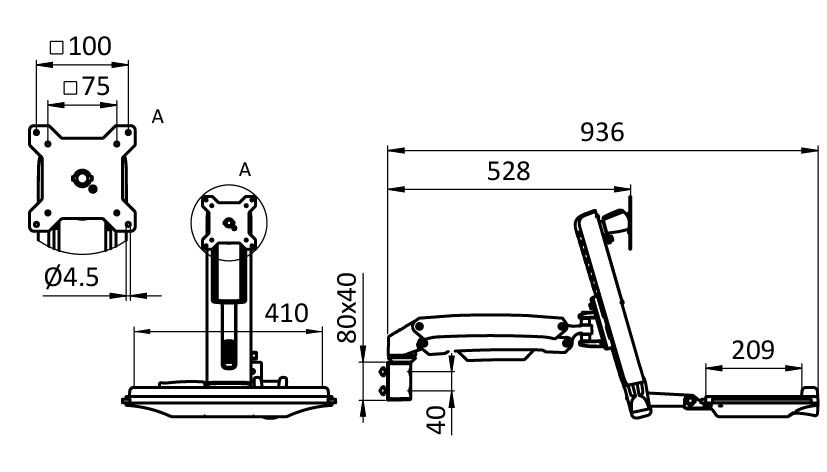

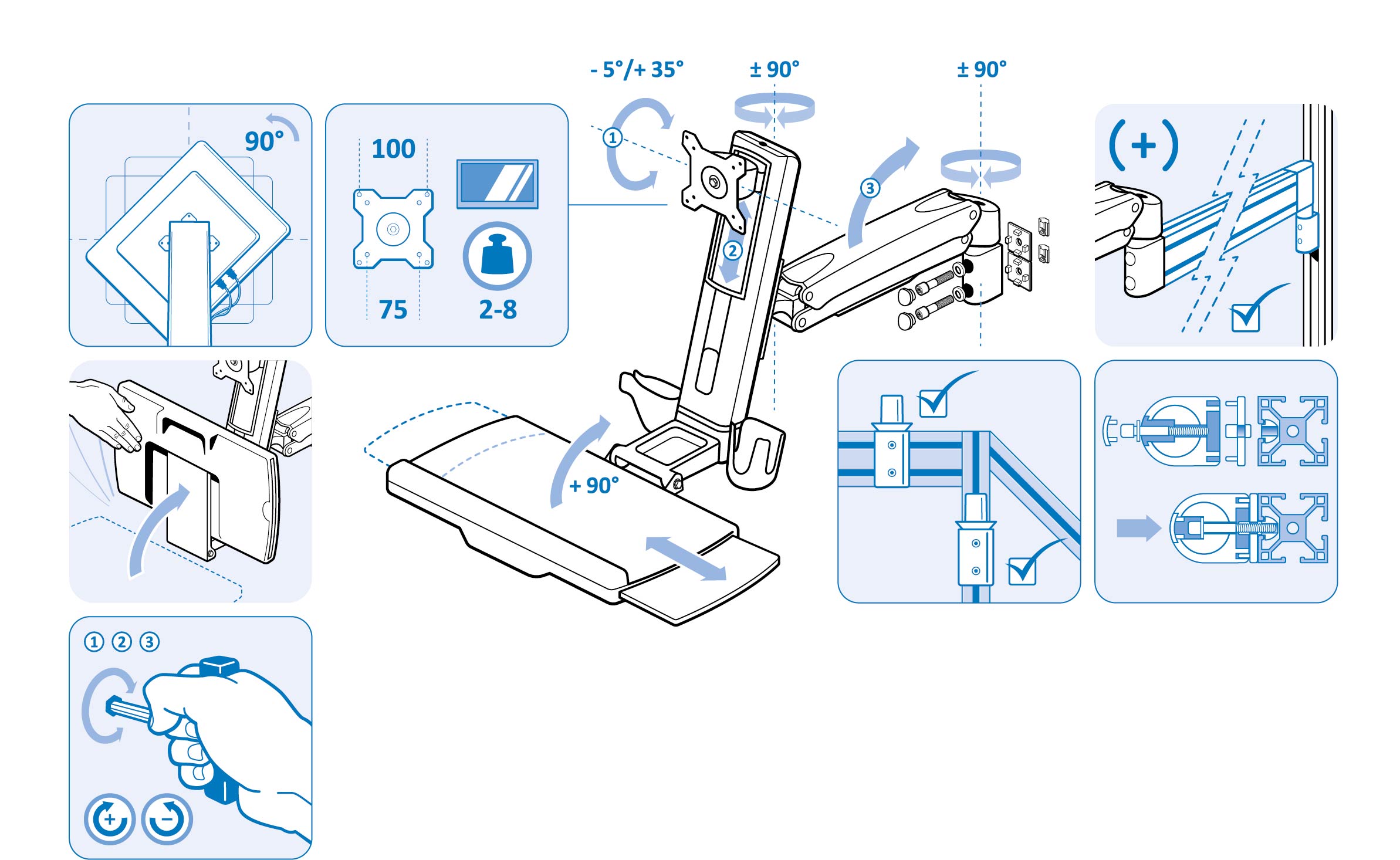

For mounting of monitors with 2 - 8 kg, mounting plate VESA MIS-D 75/100 compatible, adjustable viewing angle and height;
Fold-up holder with wrist rest for keyboard up to 2.5 kg, incl. left or right pull-out shelf for mouse, as well as holders for hand scanner and mouse;
360° mounting flange can be attached lateral, transverse, or on the face of the profile, if attached on the front face, the core hole of the respective profile must be M8 threaded

Material:
Monitor Work Station: Steel / aluminum / plastic
Cable management cover: Plastic
Mounting flange: Aluminum die-cast
Screws: Steel

Set:
1 monitor work station incl. keyboard holder and cable management cover
1 mounting flange incl. bolt and cover cap
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut)
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole)
2 washers 8-FSt
2 centering plates - slot 8
2 centering plats - slot 10
2 T-slot nuts - slot 8 - M8
2 T-slot nuts - slot 10 - M8

Surface:
Monitor Work Station: Powder coated
Mounting flange: Powder coated
Screws: Zinc plated

Zolltarifnummer:
73269098900
(ECLASS 6.0): 19140390
(ECLASS 7.0): 19140390
(ECLASS 8.0): 19140390
(ECLASS 9.0): 19140390
(ECLASS 10.0): 19140390
(ECLASS 11.0): 19140392
(ECLASS 12.0): 19140392
(ECLASS 13.0): 19140392
Model: 4-axis
Pack Quantity: 1 set
Weight (g): 9520.0

Variants

Product ID Slot N (mm) Profile
6MHM75100S40IT 8 / 10 I / B
