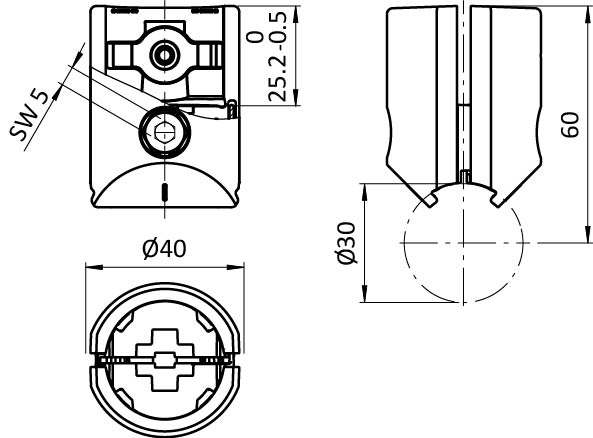

Outer T-Connector D30 (Set)
Regular price:
€0.00
Part #:
099RV3090LS01
Pack Quantity:
10 pieces
Description:

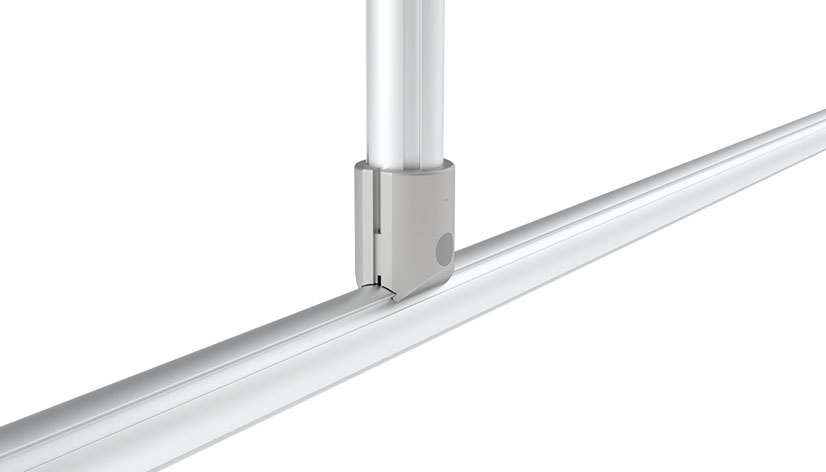

To connect two tubular frame profiles with Ø 30 mm outer diameter at right angles
To connect two tubular frame profiles with Ø 30 mm outer diameter at right angles
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Surface:
Assembly set: Zinc plated
Set:
2 components for outer T-connector D30,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28,
1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6
Tip:
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Delivery Countries:
Worldwide
Connector: Aluminum die-cast
Assembly set: Steel
Surface:
Assembly set: Zinc plated
Set:
2 components for outer T-connector D30,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28,
1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6
Tip:
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | For tubular frame profiles |
| Weight (g): | 94.6 |
| ERP Number: | 146441 |
Product Portraits
Classifications
- Zolltarifnummer
- 76169910990
Certificates
Skip product gallery
Matching accessories
Cover Cap for Tubular Frame Connectors D30
Regular price:
€0.00
Profile:
I
Fig.:
①
Description:To cover the screw hole of connectors for tubular frame profiles with Ø 30 mm outer diameterMaterial:Plastic PA, glass fiber reinforcedColor:Gray ≈ RAL 7042Delivery Countries:Worldwide
