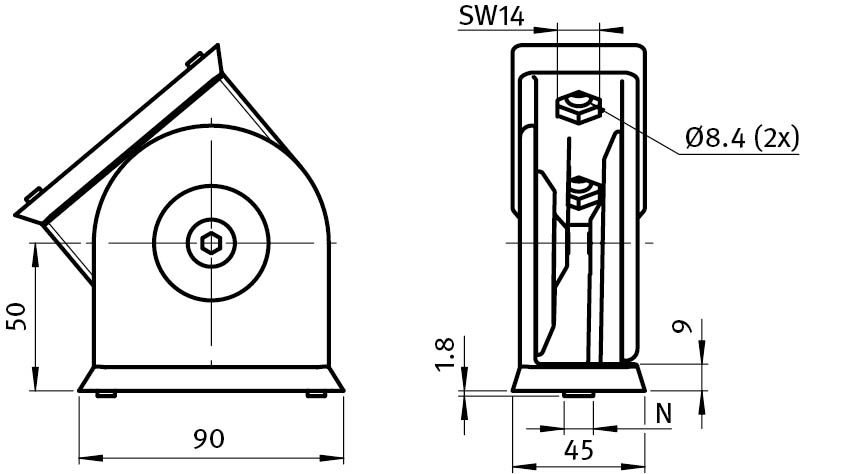

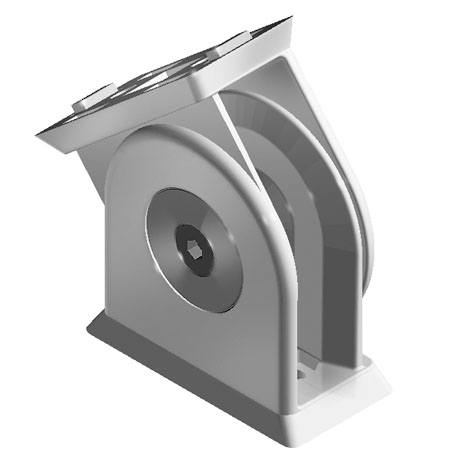

Pivot Joint 45 x 90

Product information "Pivot Joint 45 x 90"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

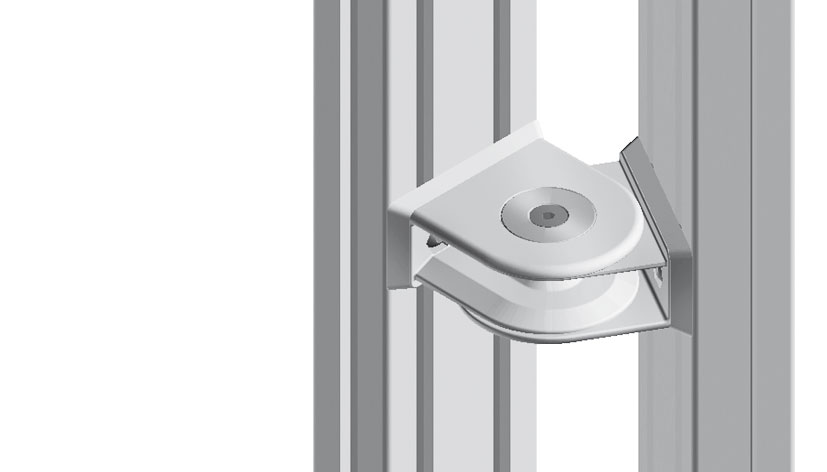

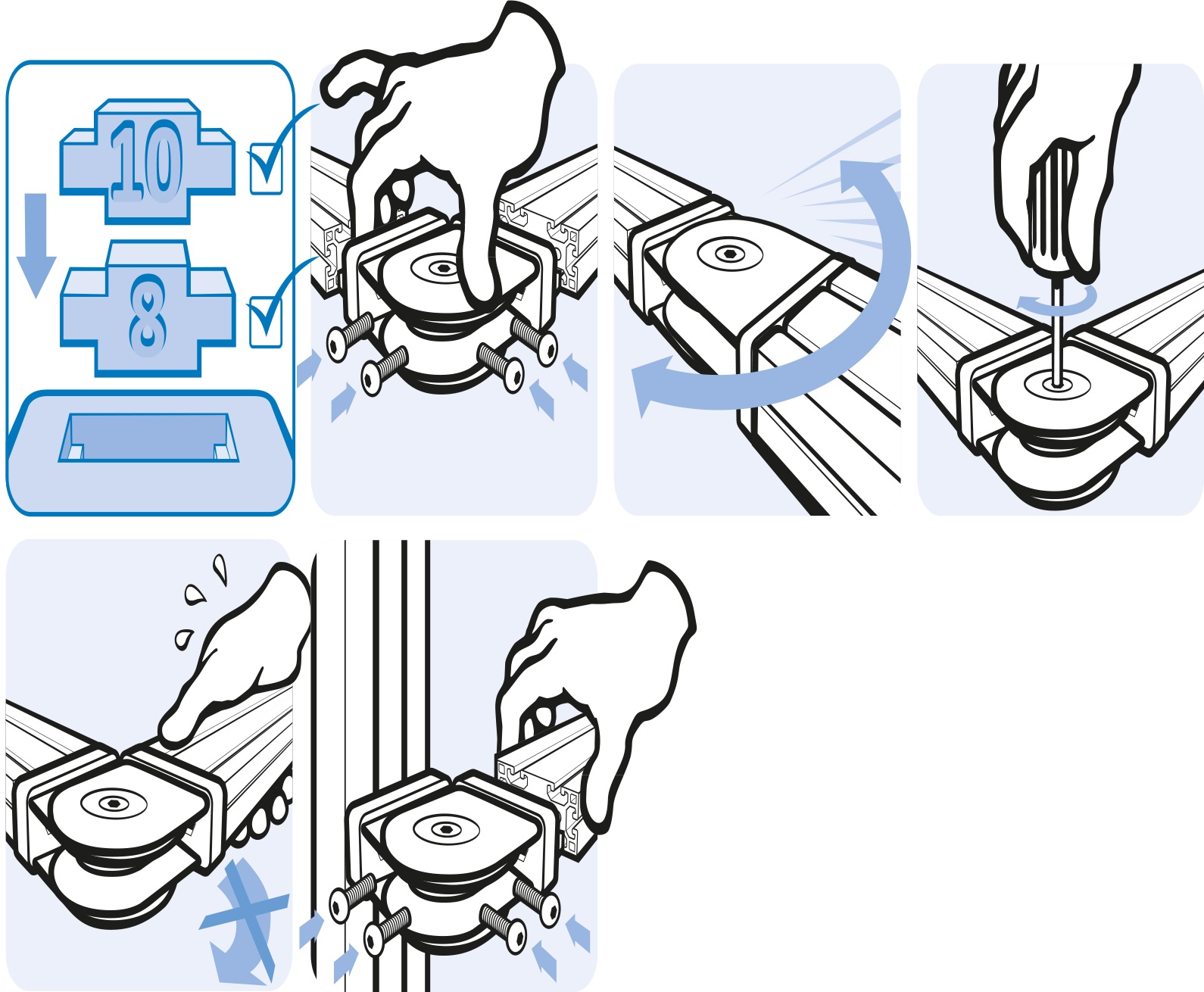

To make a pivoting connection between two profiles or panels; with separate locating pins for slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Aluminum die-cast

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): #N/A
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Model: With adjustable friction, aluminum die-cast
Pack Quantity: 10 pieces
Weight (g): 504.5

Variants

Product ID Slot N (mm) Opening Angle
093GA4590AN 8 / 10 184°
