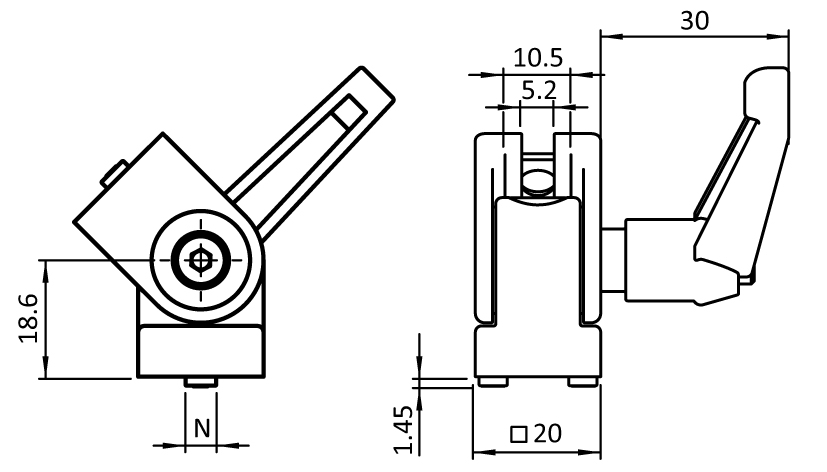

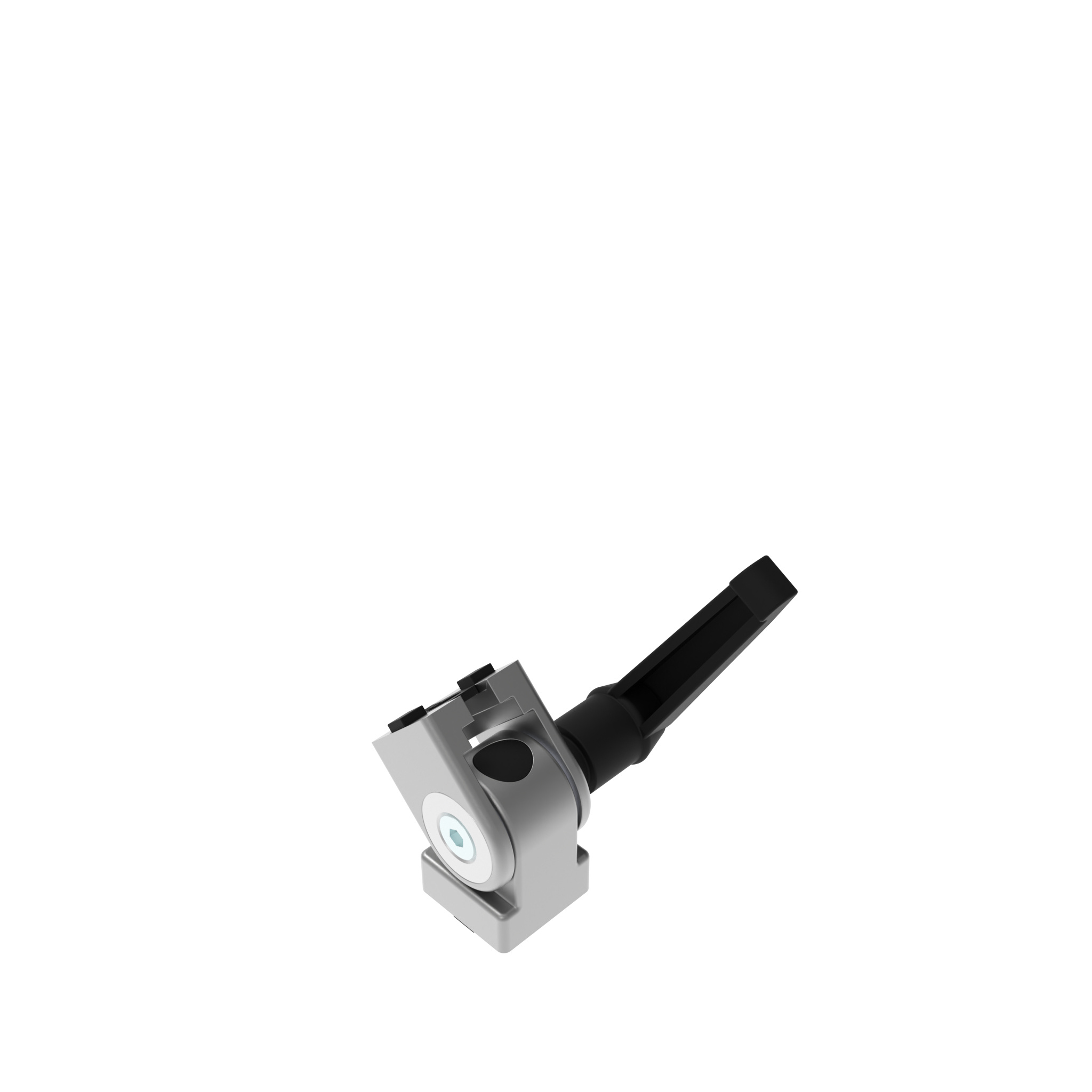

Pivot Joint B 20 with Locking Lever

Product information "Pivot Joint B 20 with Locking Lever"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

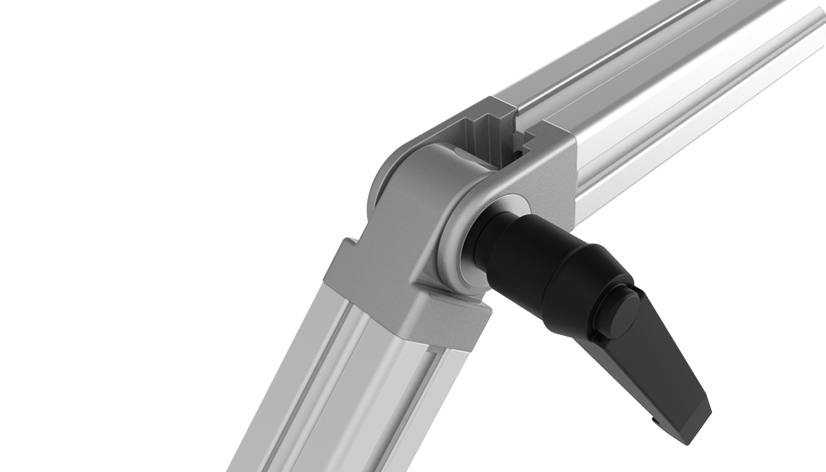

For connection of two profiles or panels, with attachment at any angle, fixed locating pins for slot 5 or 6 optional; by tightening or loosening the screws and the KIPP-locking lever you can adjust the frictional resistance of the joint continuously, or you can fix it at a defined position; thicker walls for stronger locking

Material:
Joint: Aluminum die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Tip:

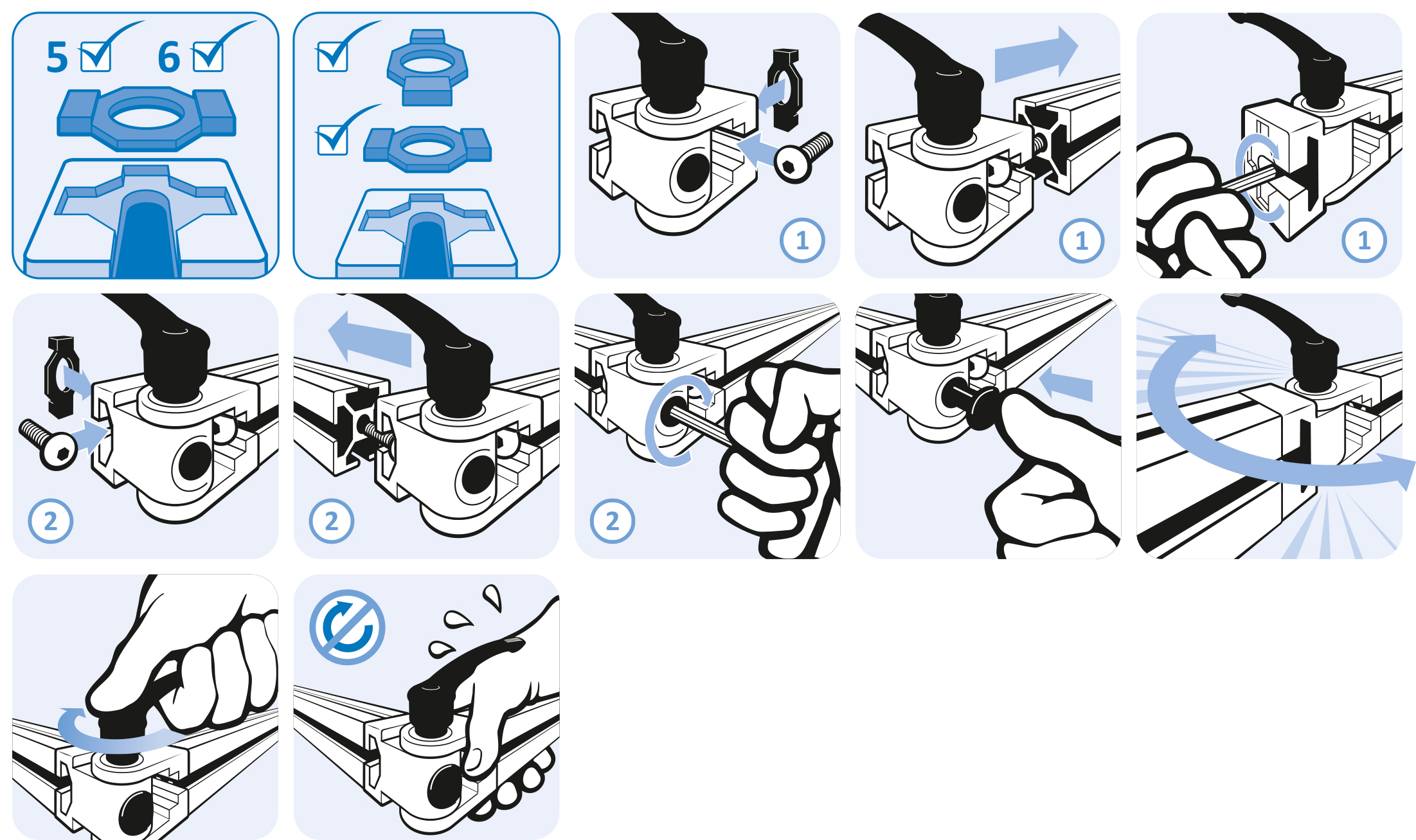

Screw of the pivot joint fork must be mounted first in the straight position of the joint through the hole in the bearing block.

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Model: Bearing block, with adjustable friction, aluminum die-cast
Pack Quantity: 10 pieces
Weight (g): 47.0

Variants

Product ID Opening Angle Profile Slot N (mm)
093GABF20AN05 185° I 5
093GABF20AN06 185° B 6
