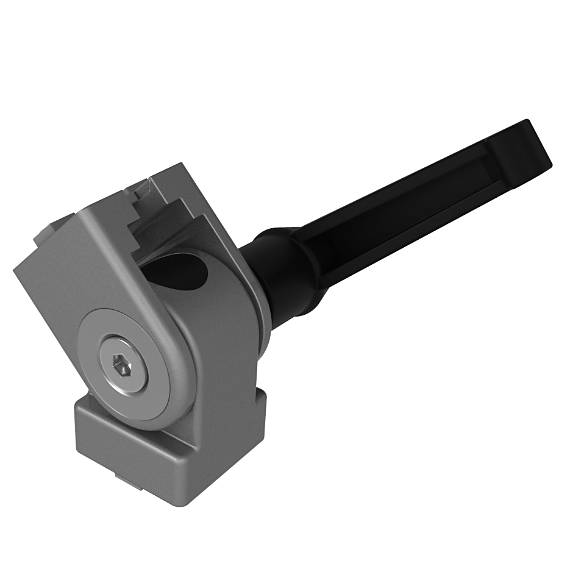

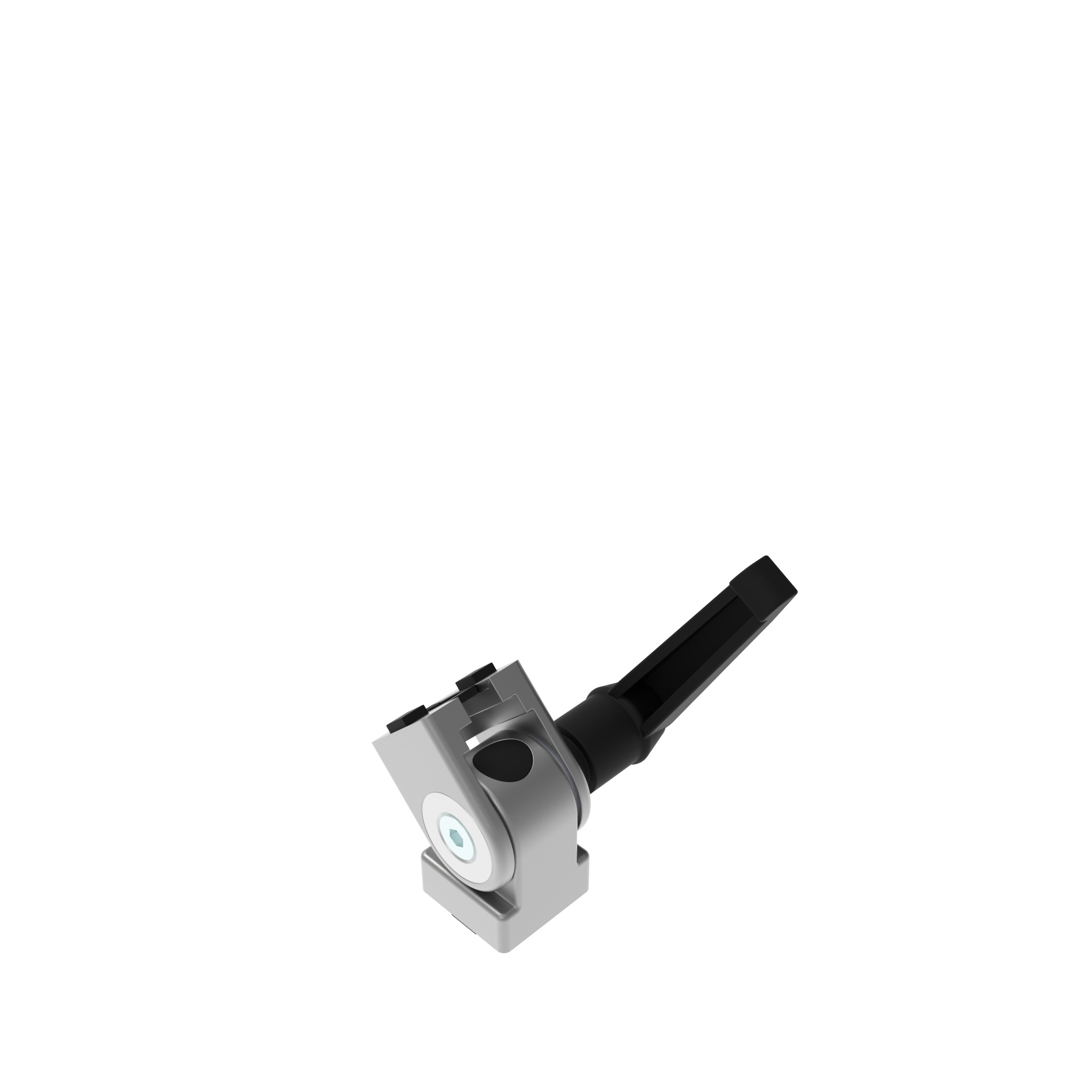

Pivot Joint B 20 with Locking Lever
Regular price:
€0.00
Part #:
093GABF20AN06
Pack Quantity:
10 pieces
Product information "Pivot Joint B 20 with Locking Lever"
Color:
Alu color
Delivery Countries:
Worldwide
Description:

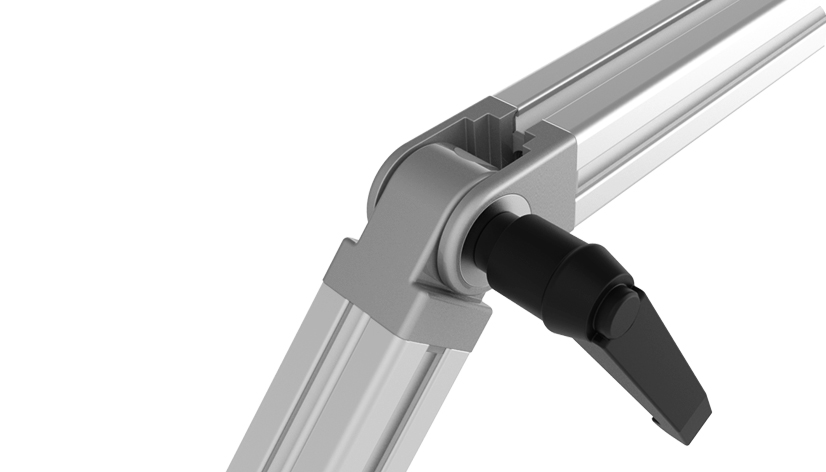

For connection of two profiles or panels, with attachment at any angle, fixed locating pins for slot 5 or 6 optional; by tightening or loosening the screws and the KIPP-locking lever you can adjust the frictional resistance of the joint continuously, or you can fix it at a defined position; thicker walls for stronger locking
Material:
Joint: Aluminum die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced
Specials:
Other surfaces, other colors on request
Surface:
Powder coated
Tip:

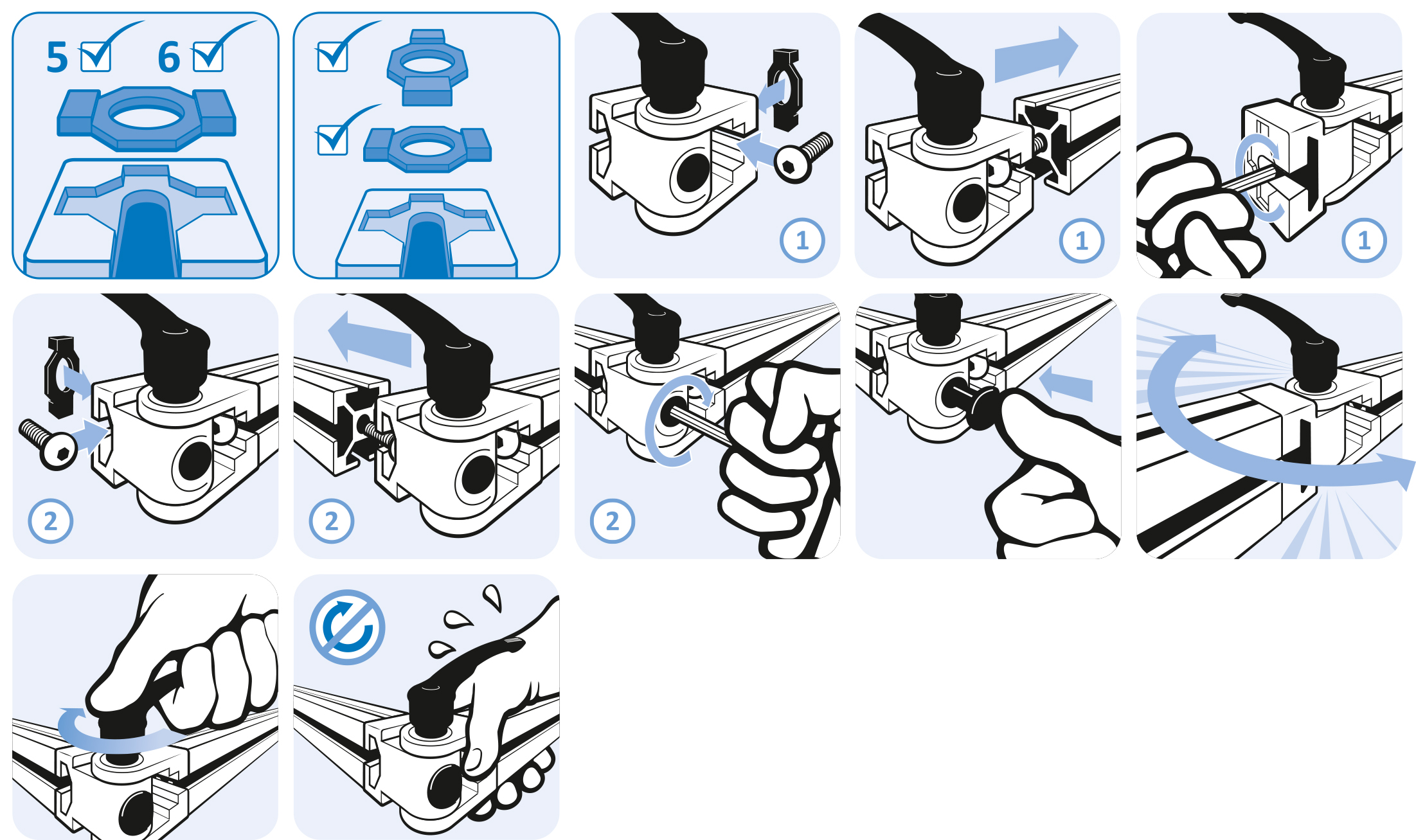

Screw of the pivot joint fork must be mounted first in the straight position of the joint through the hole in the bearing block.
Alu color
Delivery Countries:
Worldwide
Description:
For connection of two profiles or panels, with attachment at any angle, fixed locating pins for slot 5 or 6 optional; by tightening or loosening the screws and the KIPP-locking lever you can adjust the frictional resistance of the joint continuously, or you can fix it at a defined position; thicker walls for stronger locking
Material:
Joint: Aluminum die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced
Specials:
Other surfaces, other colors on request
Surface:
Powder coated
Tip:
Screw of the pivot joint fork must be mounted first in the straight position of the joint through the hole in the bearing block.
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Bearing block, with adjustable friction, aluminum die-cast |
| Weight (g): | 47.0 |
| ECLASS 6.0: | 23360301 |
| ECLASS 7.0: | 23360301 |
| ECLASS 8.0: | 23360301 |
| ECLASS 9.0: | 23360301 |
| ECLASS 10.0: | 23360301 |
| ECLASS 11.0: | 23360301 |
| ECLASS 12.0: | 23360301 |
| ECLASS 13.0: | 23360301 |
| Zolltarifnummer: | 76169910990 |
| Customs Tariff Number Export: | 76169910 |
| ERP Number: | 138312 |
