Pivot Joint B 40

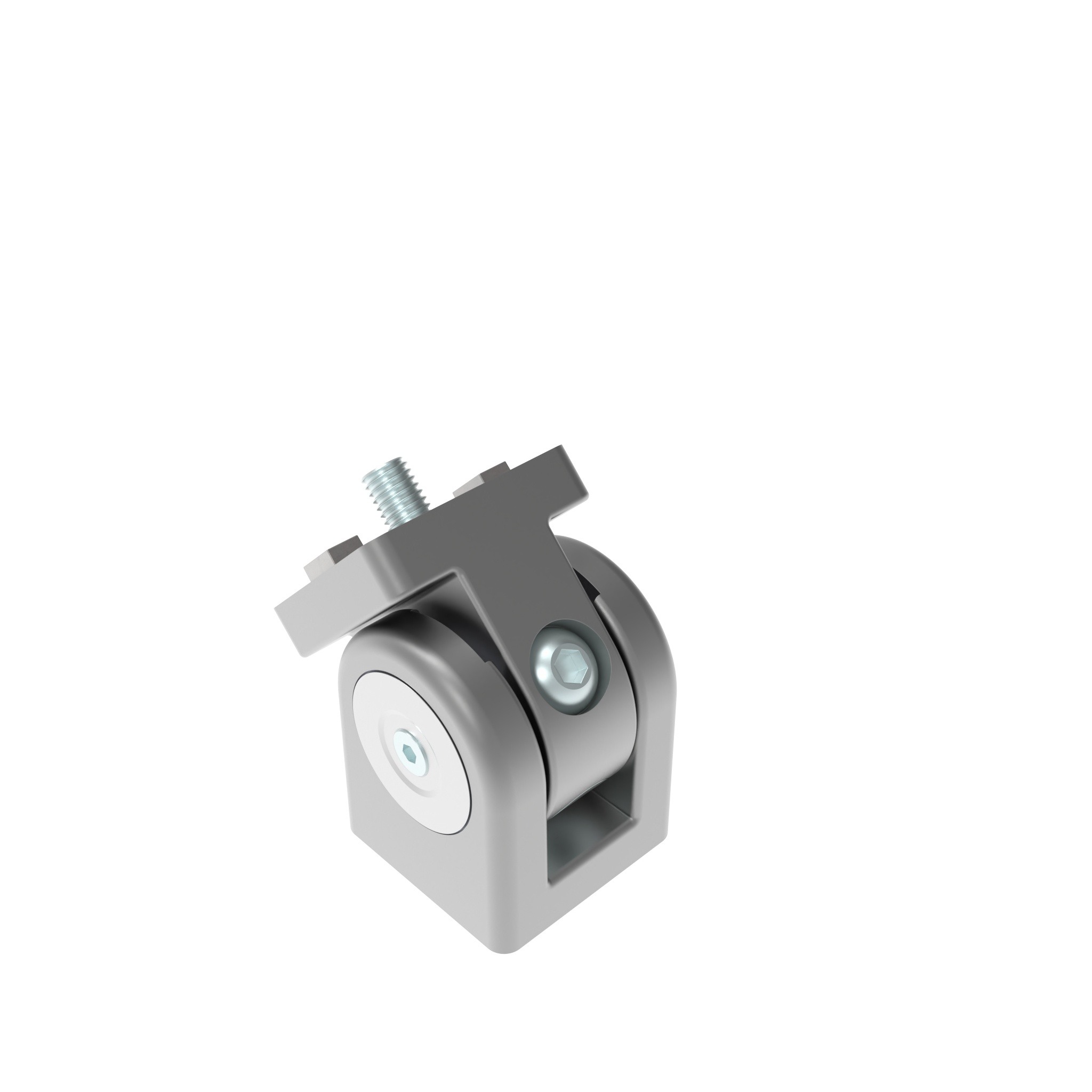

Product information "Pivot Joint B 40"

Color:
Pivot bearing: White aluminum ≈ RAL 9006
Cover cap: Gray ≈ RAL 7042

Delivery Countries:
Worldwide

Description:

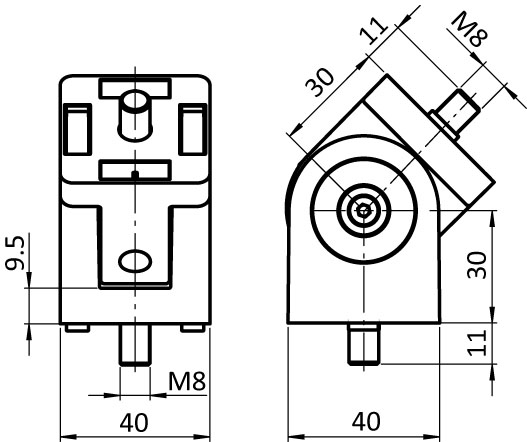

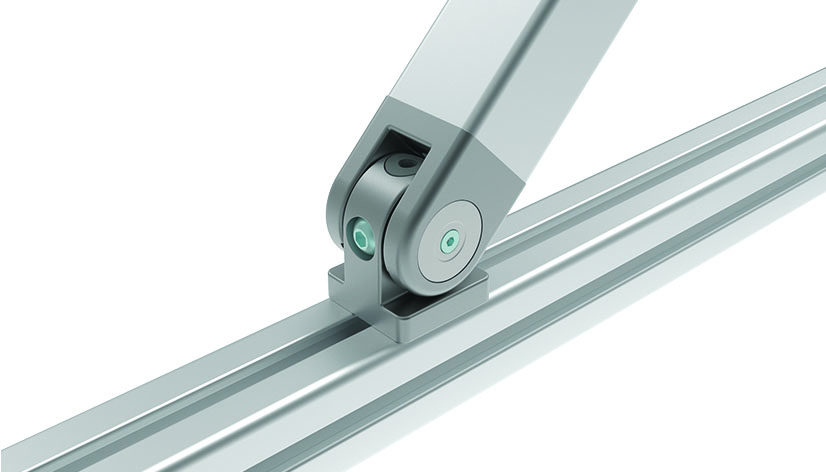

To make a pivoting connection between two profiles, with separate locating pins for slot 8 and slot 10

Material:
Pivot bearing: Aluminum die-cast
Bearing shims: Steel
Ball bearings: Steel
Screws: Steel
Cover cap: Plastic PA

Set:
1 pivot bearing
4 locating pins slot 8 / slot 10
2 screws M8 (pre-assembled)

Surface:
Pivot bearing: Powder coated,
Bearing shims: Zinc plated
Ball bearings: Zinc plated
Screws: Zinc plated

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Model: V_Bearing block, with ball bearings, aluminum die-cast
Pack Quantity: 10 pieces
Weight (g): 267.5

Variants

Product ID Opening Angle Slot N (mm)
093GBA40 180° - / 8 / 10
