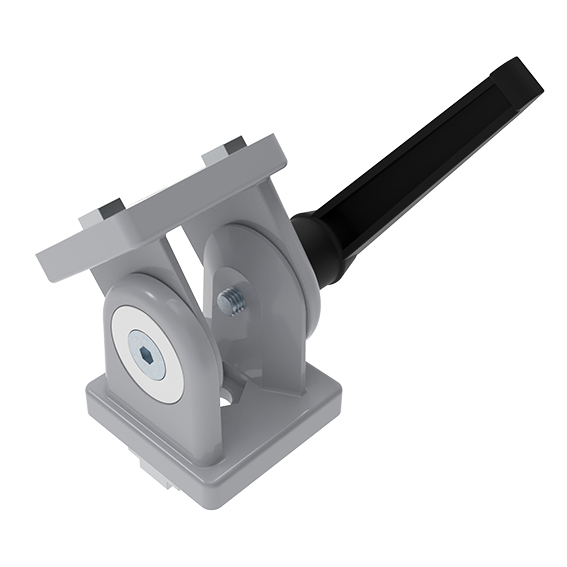

Pivot Joint ZN 45 with Locking Lever

Product information "Pivot Joint ZN 45 with Locking Lever"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

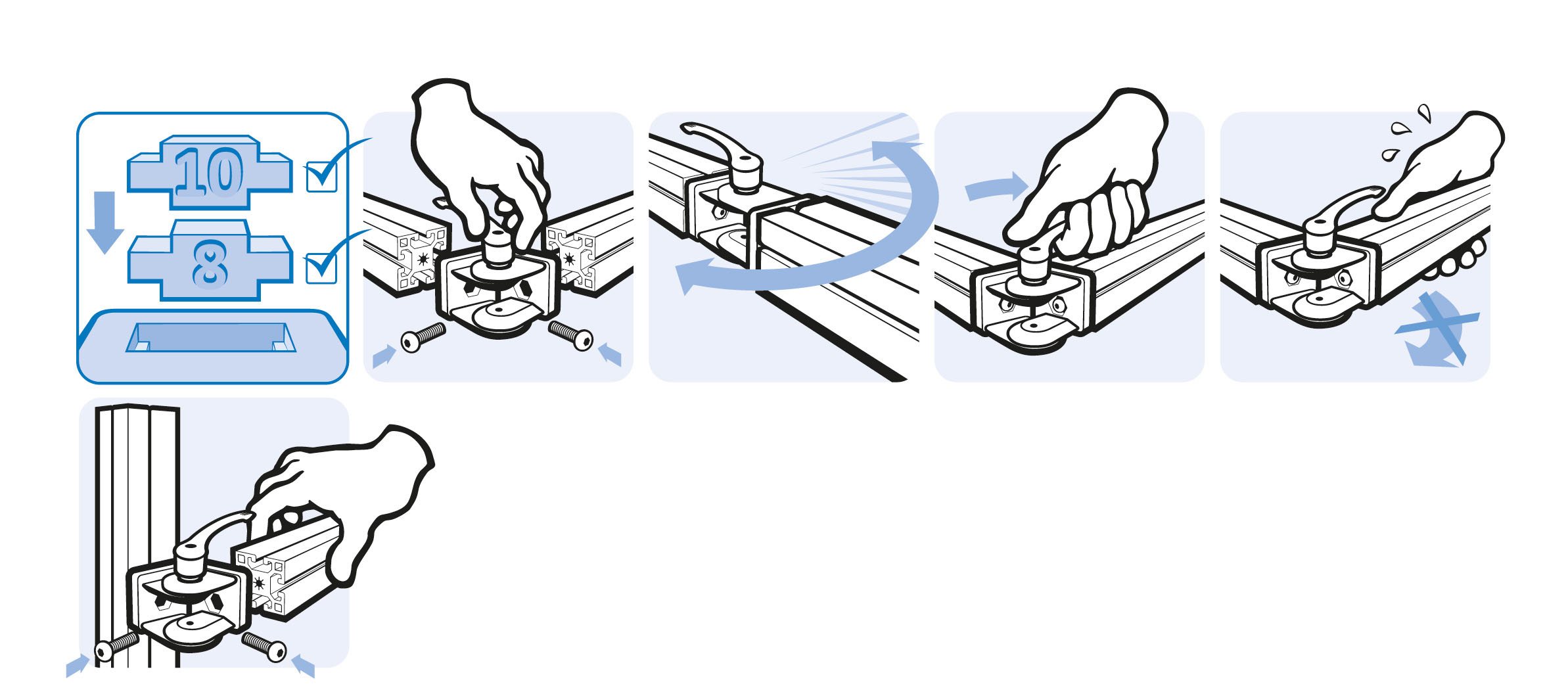

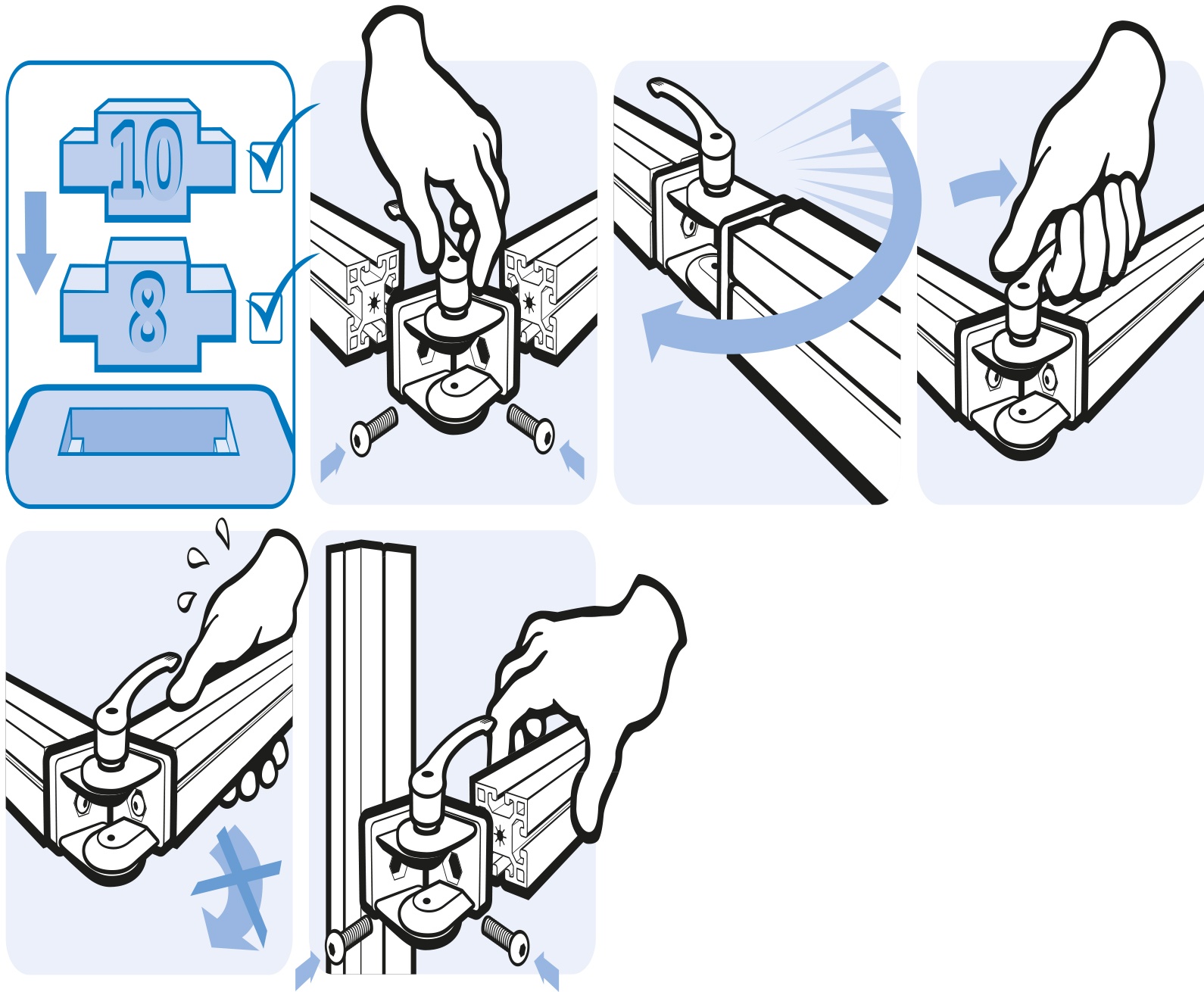

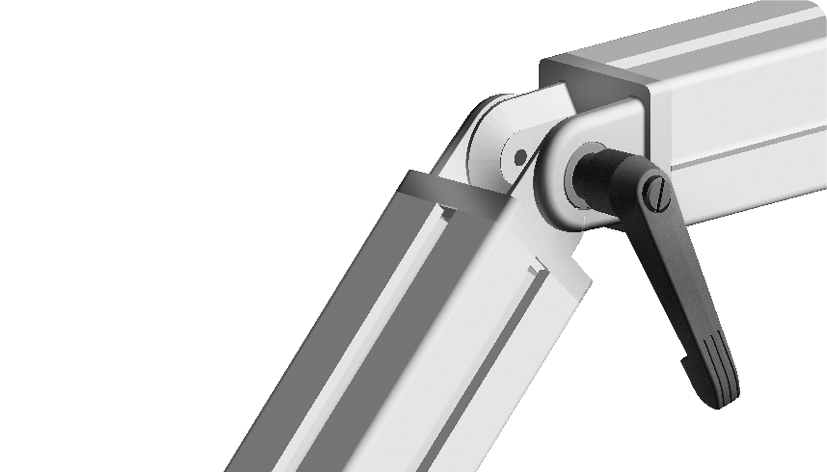

To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Joint: Zinc die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Customs Tariff Number Export: 79070000
Model: Zinc die-cast
Pack Quantity: 10 pieces
Weight (g): 387.0
Zolltarifnummer: 79070000900
pA Number: 100689

Variants

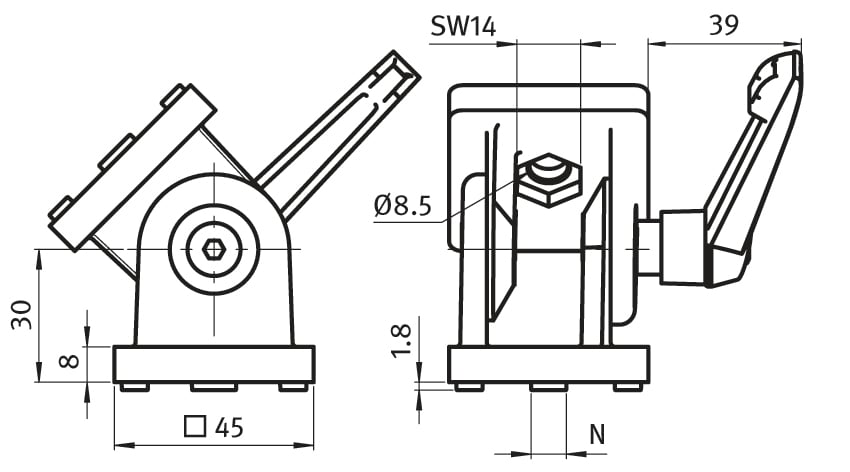

Product ID Opening Angle Slot N (mm)
093GF45AN 178° - / 8 / 10
