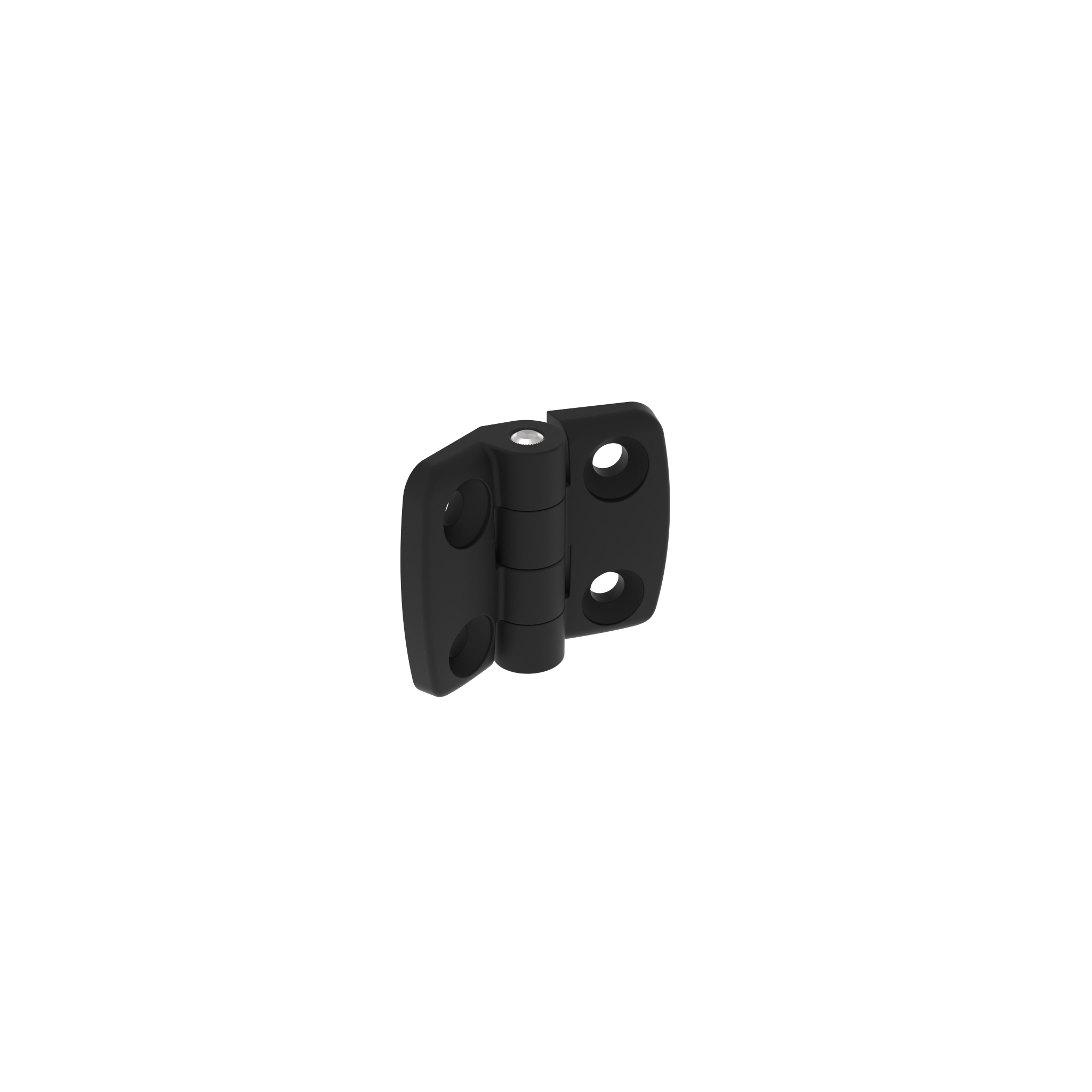

Plastic Combi Hinge 25, Non-detachable, Black
Product number:
095K2530F00
Product information "Plastic Combi Hinge 25, Non-detachable, Black"
Color:
Black
Delivery Countries:
Worldwide
Description:

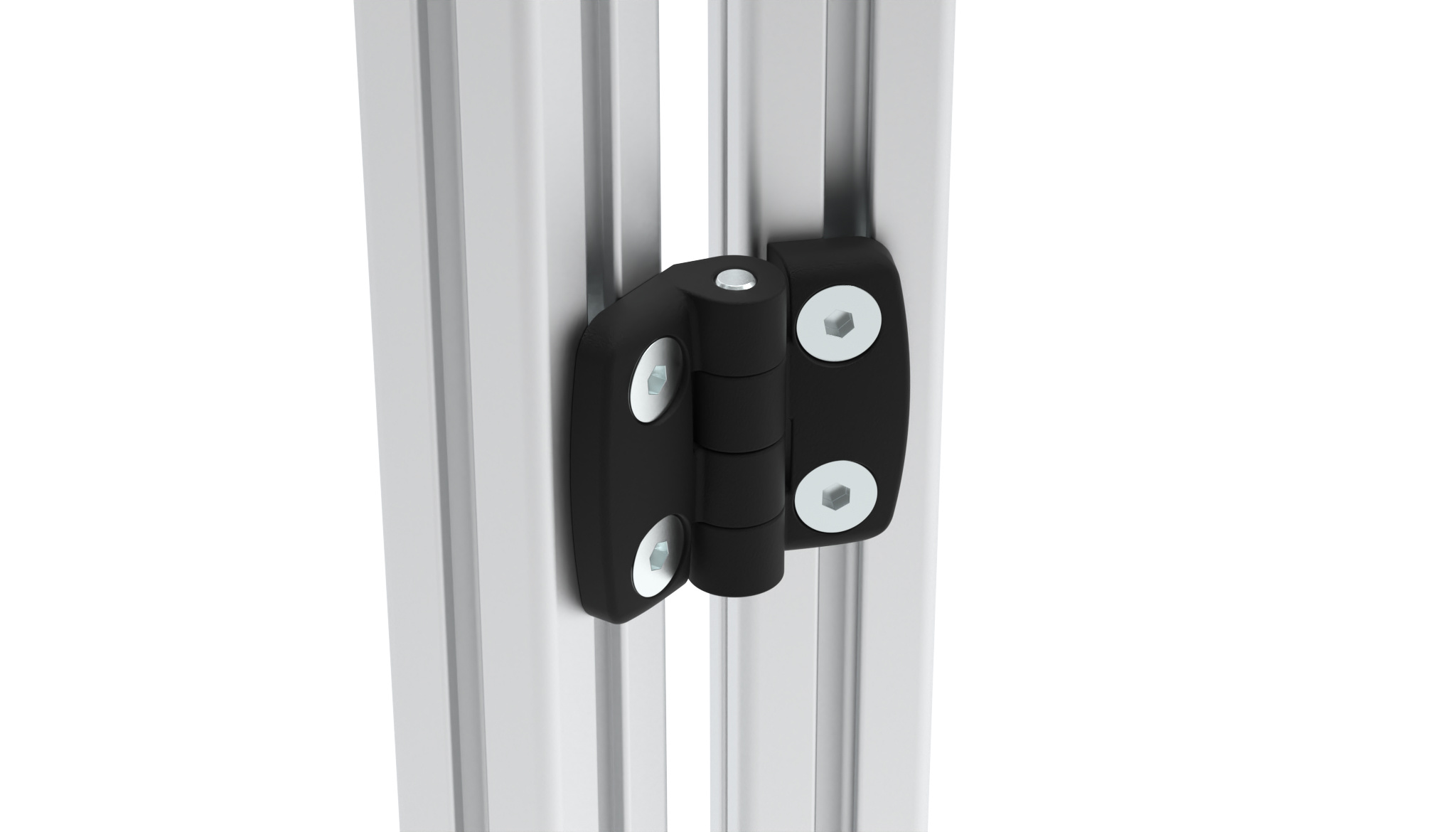

To hinge panels or aluminum profiles
Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel
Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Zolltarifnummer:
39263000900
Black
Delivery Countries:
Worldwide
Description:
To hinge panels or aluminum profiles
Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel
Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Zolltarifnummer:
39263000900
(ECLASS 6.0): | 23219090 |
---|---|
(ECLASS 7.0): | 23219090 |
(ECLASS 8.0): | 23219090 |
(ECLASS 9.0): | 23219090 |
(ECLASS 10.0): | 23219090 |
(ECLASS 11.0): | 23219090 |
(ECLASS 12.0): | 23219090 |
(ECLASS 13.0): | 23219090 |
Fastening: | From the front, using M6 countersunk screws |
Model: | Non-detachable |
Pack Quantity: | 10 pieces |
Weight (g): | 34.0 |
Variants

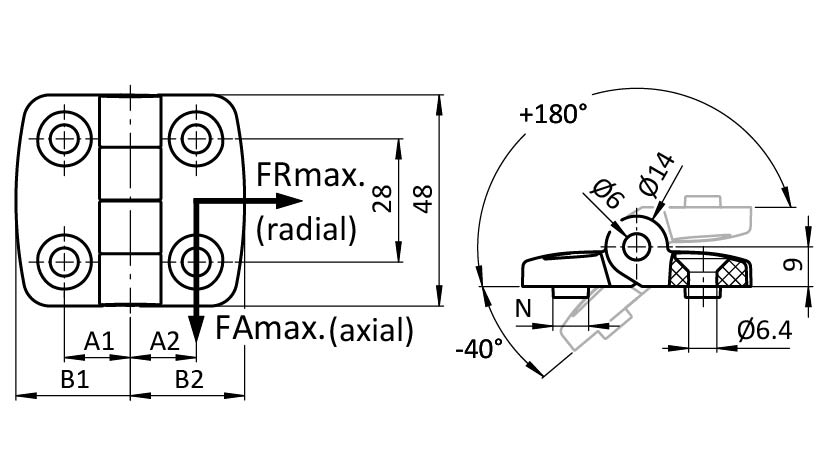

Product ID | B2 (mm) | A2 (mm) | Slot N (mm) | Version | FRmax (N) | B1 (mm) | FAmax (N) | Combination | A1 (mm) |
---|---|---|---|---|---|---|---|---|---|
095K2525F00 | 26.0 | 15.0 | Non-detachable | 26.0 | 380 | 25 / 25 | 15.0 | ||
095K2525F06 | 26.0 | 15.0 | 6 | Non-detachable | 26.0 | 380 | 25 / 25 | 15.0 | |
095K2525F08 | 26.0 | 15.0 | 8 | Non-detachable | 26.0 | 380 | 25 / 25 | 15.0 | |
095K2530F00 | 26.0 | 15.0 | Non-detachable | 29.5 | 400 | 30 / 25 | 17.5 | ||
095K2535F00 | 36.0 | 20.0 | Non-detachable | 750 | 26.0 | 400 | 25 / 35 | 15.0 | |
095K2540F00 | 38.5 | 22.5 | Non-detachable | 750 | 26.0 | 450 | 25 / 40 | 15.0 | |
095K2545F00 | 26.0 | 15.0 | Non-detachable | 750 | 43.5 | 450 | 25 / 45 | 25.0 | |
095K2550F00 | 26.0 | 27.5 | Non-detachable | 48.5 | 425 | 25 / 50 | 15.0 | ||
095K2560F00 | 26.0 | 32.5 | Non-detachable | 850 | 57.5 | 25 / 60 | 15.0 |
CAD Downloads
Product Portraits

Combi Hinges
FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leaves 25, 30, 35, 40, 45, 50 and 60, to your application.
