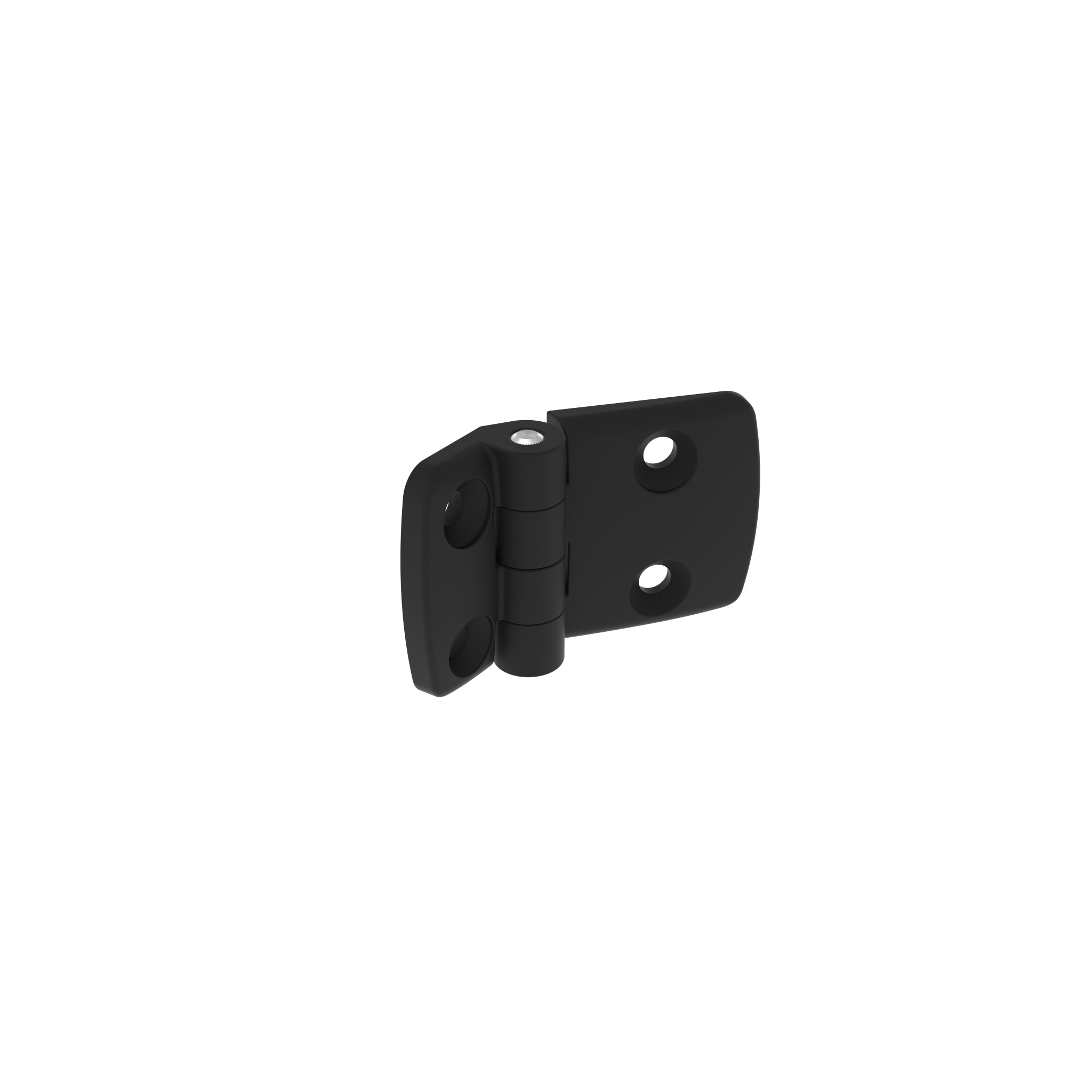

Plastic Combi Hinge 25, Non-detachable, Black

Product information "Plastic Combi Hinge 25, Non-detachable, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles

Fastening:
From the front, using M6 countersunk screws

Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel

Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

Pack Quantity:	10 pieces
Model:	Non-detachable
Weight (g):	34.1
ERP Number:	101720

Variants

Part #	Version	Slot N (mm)	B1 (mm)	B2 (mm)	Combination	FAmax (N)	FRmax (N)	A1 (mm)	A2 (mm)
095K2525F00	Non-detachable	-	26.0	26.0	25 / 25	380	500	15.0	15.0
095K2525F06	Non-detachable	6	26.0	26.0	25 / 25	380	500	15.0	15.0
095K2525F08	Non-detachable	8	26.0	26.0	25 / 25	380	500	15.0	15.0
095K2530F00	Non-detachable	-	29.5	26.0	25 / 30	400	500	17.5	15.0
095K2535F00	Non-detachable	-	26.0	36.0	25 / 35	400	750	15.0	20.0
095K2540F00	Non-detachable	-	26.0	38.5	25 / 40	450	750	15.0	22.5
095K2545F00	Non-detachable	-	43.5	26.0	25 / 45	450	750	25.0	15.0
095K2550F00	Non-detachable	-	48.5	26.0	25 / 50	425	800	15.0	27.5
095K2560F00	Non-detachable	-	57.5	26.0	25 / 60	200	850	15.0	32.5
