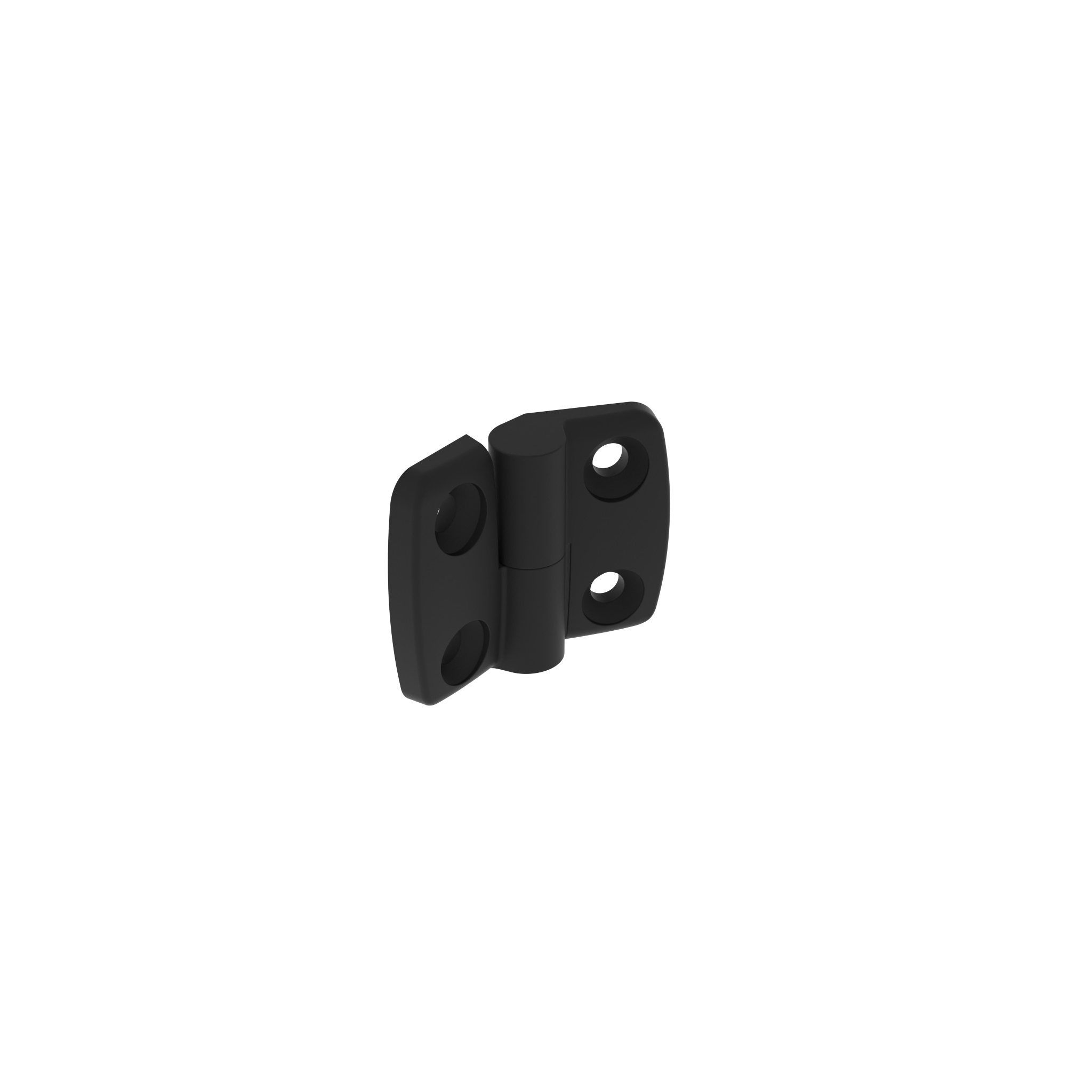

Plastic Combi Hinge 30, Detachable, Black

Product information "Plastic Combi Hinge 30, Detachable, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:

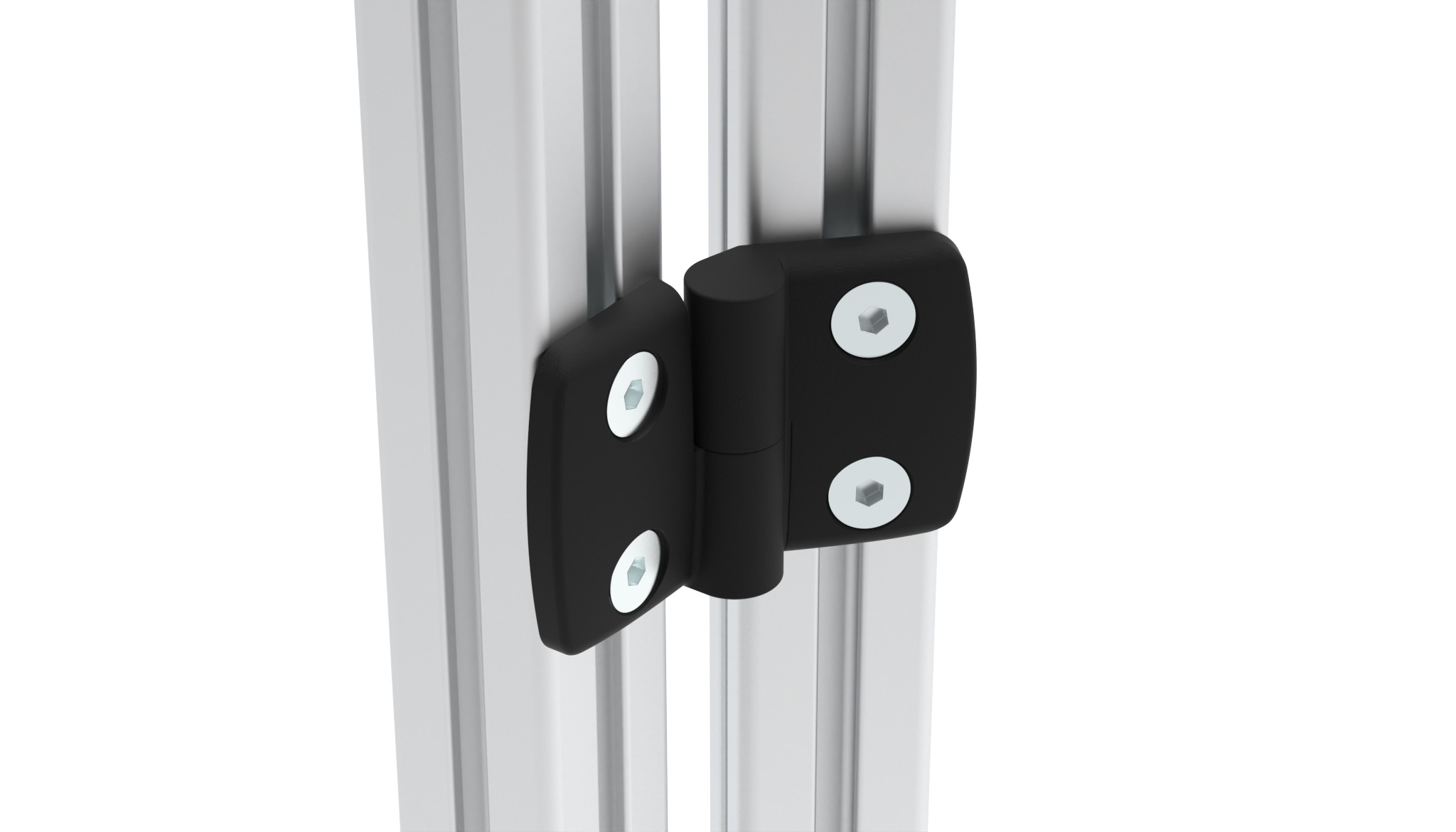

To hinge panels or aluminum profiles

Material:
Wings: Plastic PA, glass fiber reinforced;
Bolt: Stainless steel

Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

(ECLASS 6.0):	23219090
(ECLASS 7.0):	23219090
(ECLASS 8.0):	23219090
(ECLASS 9.0):	23219090
(ECLASS 10.0):	23219090
(ECLASS 11.0):	23219090
(ECLASS 12.0):	23219090
(ECLASS 13.0):	23219090
Customs Tariff Number Export:	39263000
Fastening:	From the front, using M6 countersunk screws
Model:	Detachable
Pack Quantity:	10 pieces
Weight (g):	34.0
Zolltarifnummer:	39263000900
pA Number:	101761

Variants

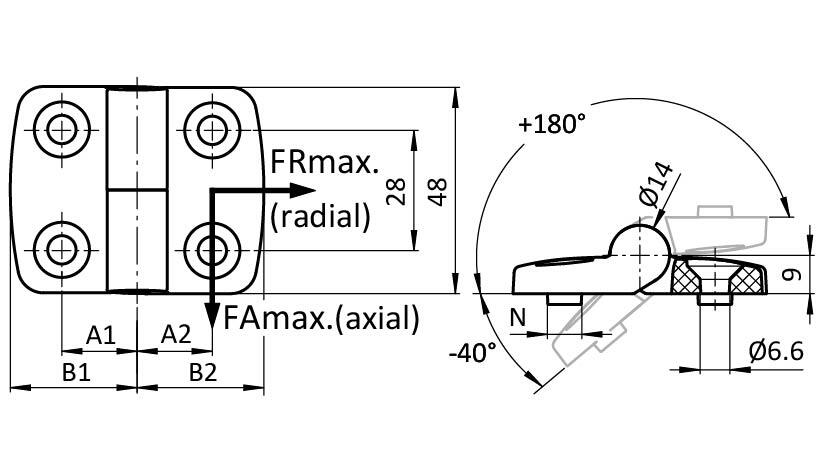

Product ID	A2 (mm)	Slot N (mm)	FRmax (N)	B2 (mm)	Version	B1 (mm)	Combination	A1 (mm)	FAmax (N)
095K3025R00	17.5		750	29.5	R: Right	26.0	30 / 25	15.0	450
095K3030L00	17.5		750	29.5	L: Left	29.5	30 / 30	17.5
095K3030L06	17.5	6	750	29.5	L: Left	29.5	30 / 30	17.5
095K3030L08	17.5	8	750	29.5	L: Left	29.5	30 / 30	17.5
095K3030R00	17.5		750	29.5	R: Right	29.5	30 / 30	17.5
095K3030R06	17.5	6	750	29.5	R: Right	29.5	30 / 30	17.5
095K3030R08	17.5	8	750	29.5	R: Right	29.5	30 / 30	17.5
095K3035L00	20.0		750	36.0	L: Left	29.5	30 / 35	17.5	400
095K3040L00	22.5			38.5	L: Left	29.5	30 / 40	17.5	350
095K3040R00	17.5			29.5	R: Right	38.5	30 / 40	22.5	350
095K3045L00	25.0			43.5	L: Left	29.5	30 / 45	17.5	350
095K3045R00	17.5			29.5	R: Right	43.5	30 / 45	25.0	350
095K3050L00	27.5			48.5	L: Left	29.5	30 / 50	17.5	350
095K3060L00	32.5			57.5	L: Left	29.5	30 / 60	17.5
095K3060R00	17.5			29.5	R: Right	57.5	30 / 60	32.5
