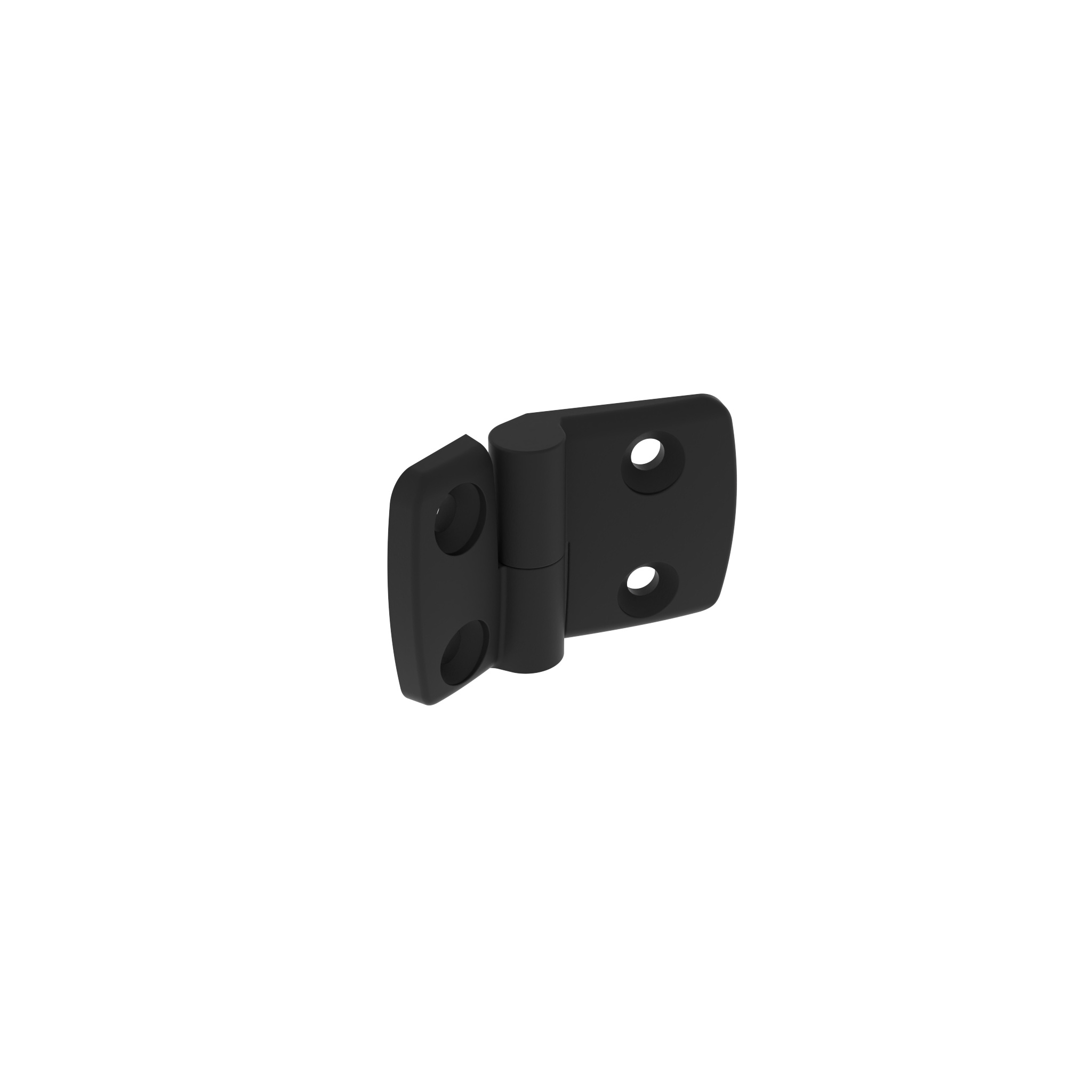

Plastic Combi Hinge 30, Detachable, Black
Product number:
095K3045L00
Product information "Plastic Combi Hinge 30, Detachable, Black"
Color:
Black
Delivery Countries:
Worldwide
Description:
To hinge panels or aluminum profiles
Material:
Wings: Plastic PA, glass fiber reinforced;
Bolt: Stainless steel
Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Zolltarifnummer:
39263000900
Black
Delivery Countries:
Worldwide
Description:
To hinge panels or aluminum profiles
Material:
Wings: Plastic PA, glass fiber reinforced;
Bolt: Stainless steel
Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Zolltarifnummer:
39263000900
(ECLASS 6.0): | 23219090 |
---|---|
(ECLASS 7.0): | 23219090 |
(ECLASS 8.0): | 23219090 |
(ECLASS 9.0): | 23219090 |
(ECLASS 10.0): | 23219090 |
(ECLASS 11.0): | 23219090 |
(ECLASS 12.0): | 23219090 |
(ECLASS 13.0): | 23219090 |
Fastening: | From the front, using M6 countersunk screws |
Model: | Detachable |
Pack Quantity: | 10 pieces |
Weight (g): | 40.0 |
Variants
Product ID | A2 (mm) | Slot N (mm) | FRmax (N) | B2 (mm) | Version | B1 (mm) | Combination | A1 (mm) | FAmax (N) |
---|---|---|---|---|---|---|---|---|---|
095K3025R00 | 17.5 | 750 | 29.5 | R: Right | 26.0 | 30 / 25 | 15.0 | 450 | |
095K3030L00 | 17.5 | 750 | 29.5 | L: Left | 29.5 | 30 / 30 | 17.5 | ||
095K3030L06 | 17.5 | 6 | 750 | 29.5 | L: Left | 29.5 | 30 / 30 | 17.5 | |
095K3030L08 | 17.5 | 8 | 750 | 29.5 | L: Left | 29.5 | 30 / 30 | 17.5 | |
095K3030R00 | 17.5 | 750 | 29.5 | R: Right | 29.5 | 30 / 30 | 17.5 | ||
095K3030R06 | 17.5 | 6 | 750 | 29.5 | R: Right | 29.5 | 30 / 30 | 17.5 | |
095K3030R08 | 17.5 | 8 | 750 | 29.5 | R: Right | 29.5 | 30 / 30 | 17.5 | |
095K3035L00 | 20.0 | 750 | 36.0 | L: Left | 29.5 | 30 / 35 | 17.5 | 400 | |
095K3040L00 | 22.5 | 38.5 | L: Left | 29.5 | 30 / 40 | 17.5 | 350 | ||
095K3040R00 | 17.5 | 29.5 | R: Right | 38.5 | 30 / 40 | 22.5 | 350 | ||
095K3045L00 | 25.0 | 43.5 | L: Left | 29.5 | 30 / 45 | 17.5 | 350 | ||
095K3045R00 | 17.5 | 29.5 | R: Right | 43.5 | 30 / 45 | 25.0 | 350 | ||
095K3050L00 | 27.5 | 48.5 | L: Left | 29.5 | 30 / 50 | 17.5 | 350 | ||
095K3060L00 | 32.5 | 57.5 | L: Left | 29.5 | 30 / 60 | 17.5 | |||
095K3060R00 | 17.5 | 29.5 | R: Right | 57.5 | 30 / 60 | 32.5 |
CAD Downloads
Product Portraits

Combi Hinges
FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leaves 25, 30, 35, 40, 45, 50 and 60, to your application.
