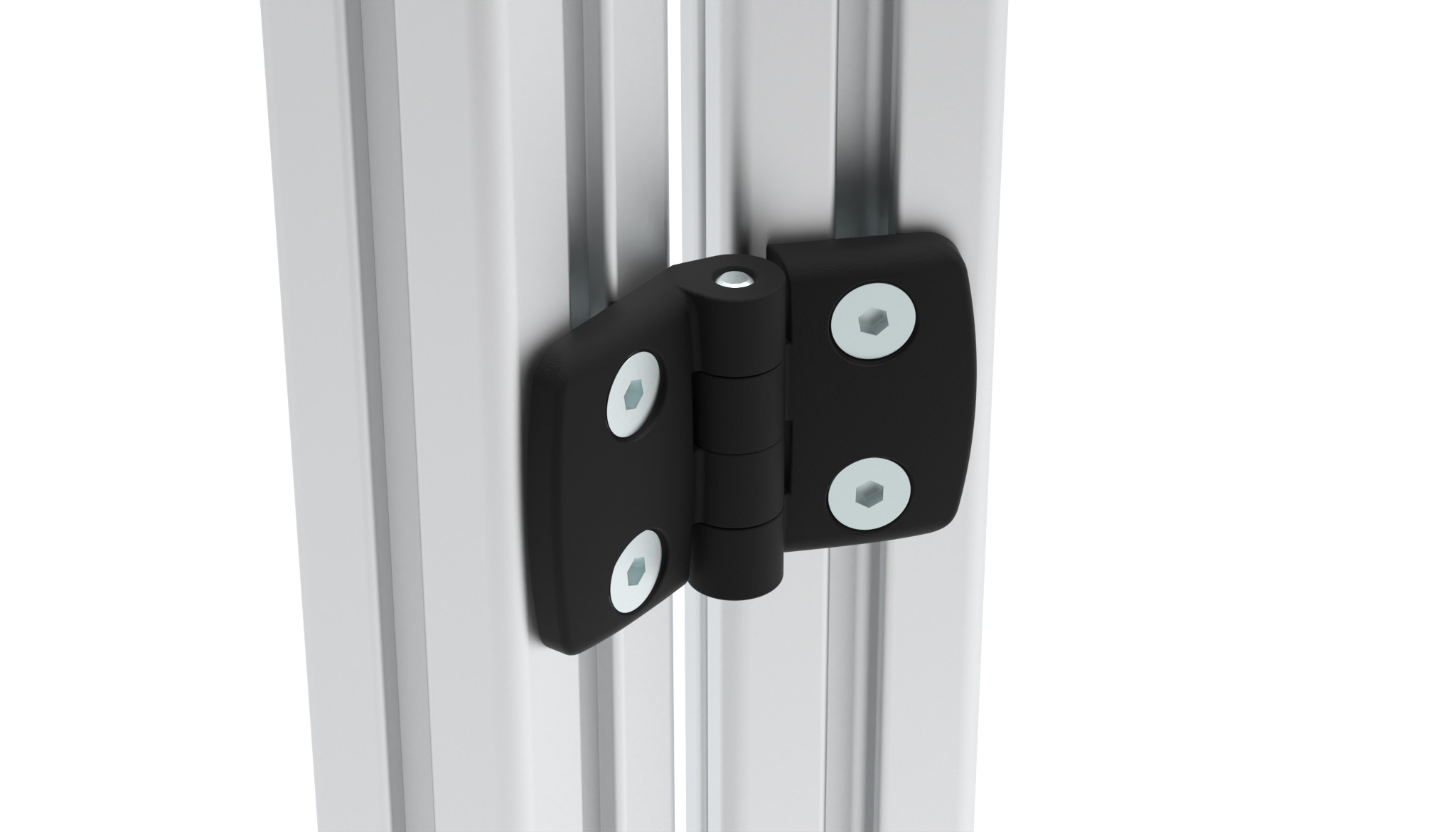

Plastic Combi Hinge 35, Non-detachable, Black

Product information "Plastic Combi Hinge 35, Non-detachable, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles

Material:
Wings: Plastic PA, glass fiber reinforced;
Bolt: Stainless steel

Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

Zolltarifnummer:
39263000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 41.0

Variants

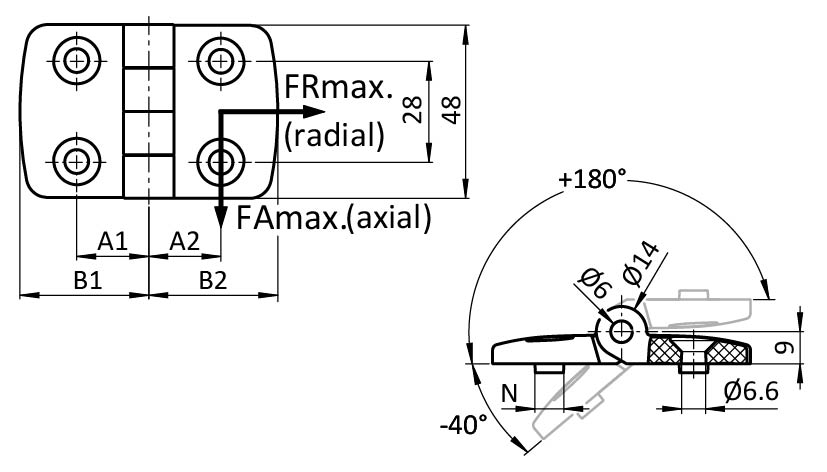

Product ID A1 (mm) Slot N (mm) Version B1 (mm) A2 (mm) Combination B2 (mm) FAmax (N) FRmax (N)
095K3535F00 20.0 Non-detachable 36.0 20.0 35 / 35 36.0 400
095K3535F08 20.0 8 Non-detachable 36.0 20.0 35 / 35 36.0 400
095K3535F10 20.0 10 Non-detachable 36.0 20.0 35 / 35 36.0 400
095K3540F00 20.0 Non-detachable 36.0 22.5 35 / 40 38.5 450 750
095K3545F00 20.0 Non-detachable 36.0 25.0 35 / 45 43.5 450 750
095K3550F00 20.0 Non-detachable 36.0 27.5 35 / 50 48.5 425
095K3560F00 20.0 Non-detachable 36.0 32.5 35 / 60 57.5 175
