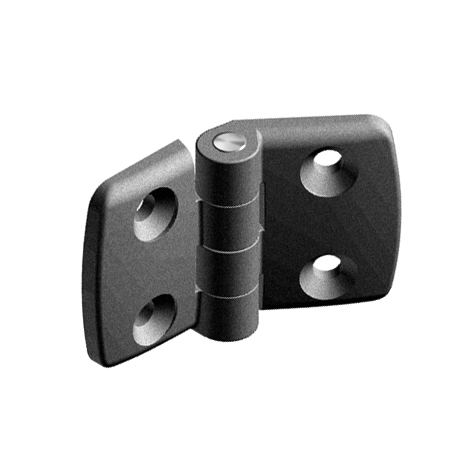

Plastic Combi Hinge 35, Non-detachable, Black

Description:

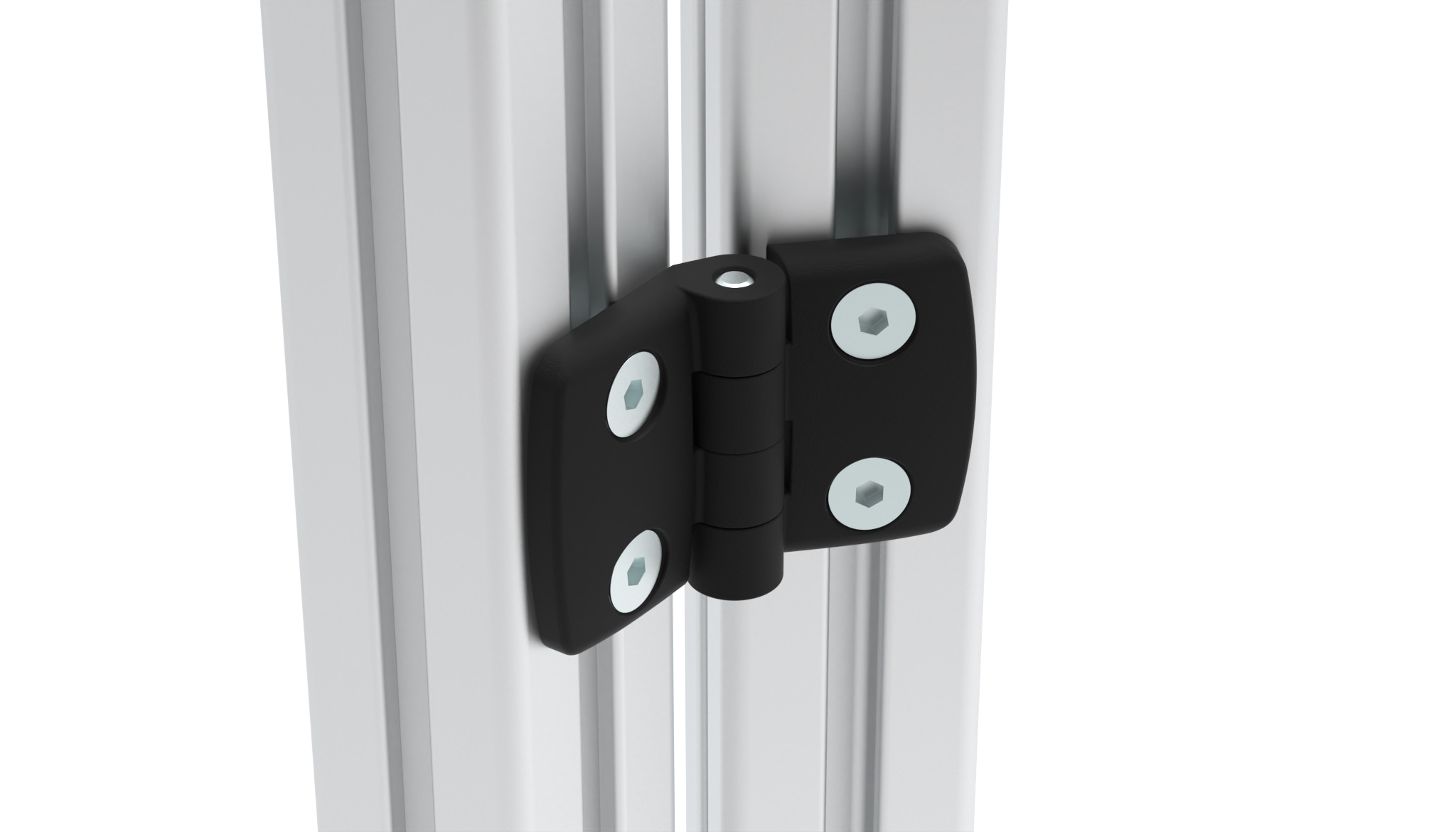

To hinge panels or aluminum profiles

Material:
Wings: Plastic PA, glass fiber reinforced;
Bolt: Stainless steel

Color:
Black

Fastening:
From the front, using M6 countersunk screws

Specials:

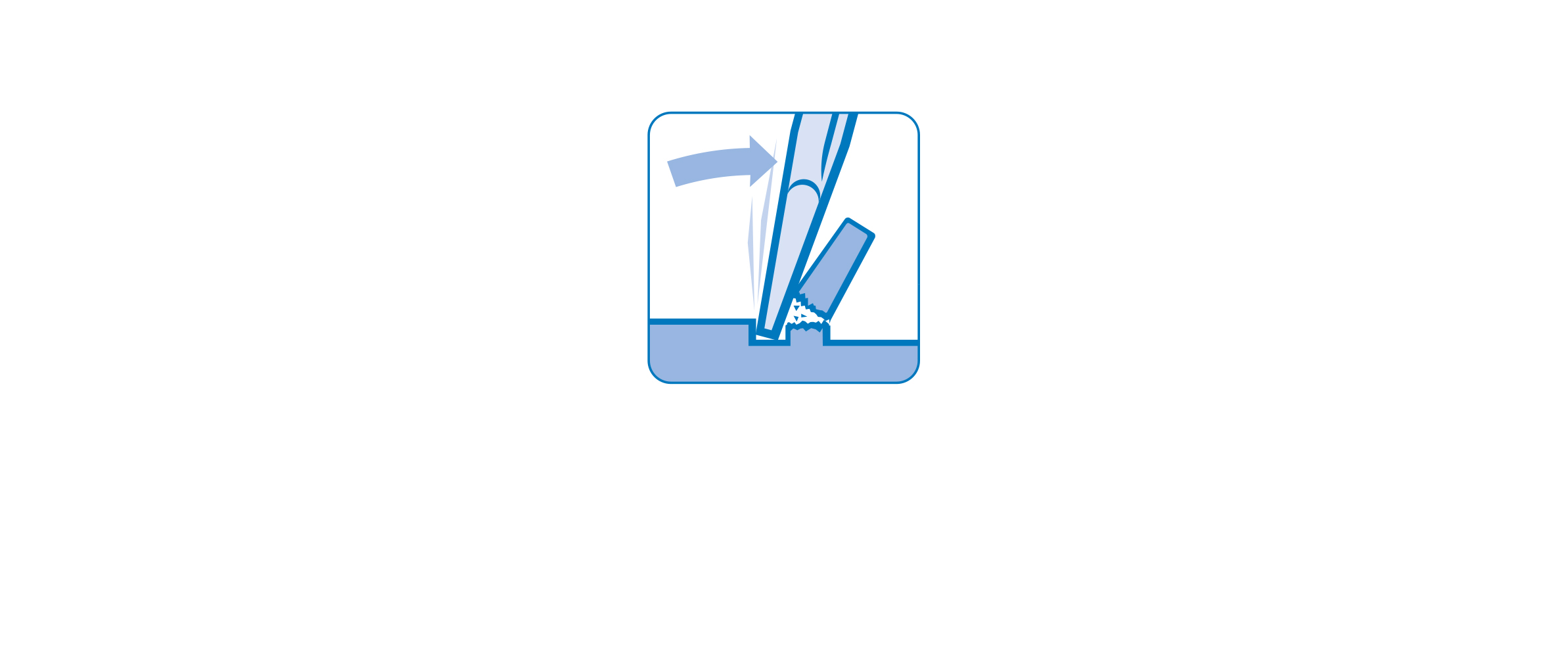

ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	Non-detachable
Weight (g):	47.0
ERP Number:	101880

Variants

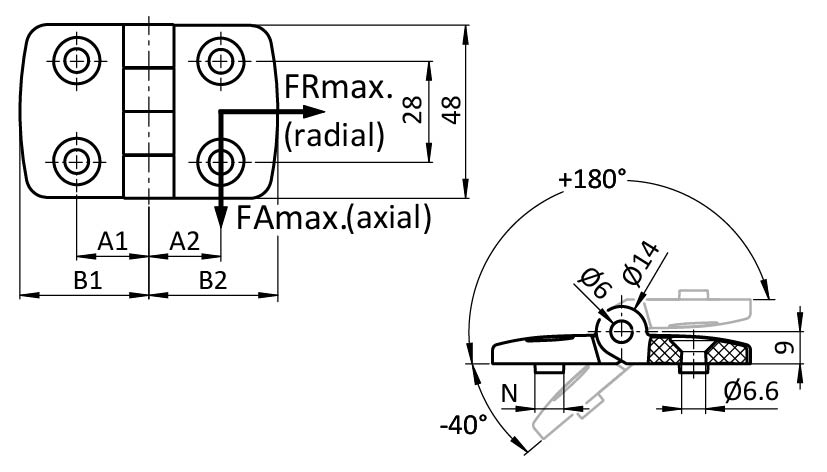

Part #	Version	Slot N (mm)	B1 (mm)	B2 (mm)	Combination	FAmax (N)	FRmax (N)	A1 (mm)	A2 (mm)
095K3535F00	Non-detachable	-	36.0	36.0	35 / 35	400	700	20.0	20.0
095K3535F08	Non-detachable	8	36.0	36.0	35 / 35	400	700	20.0	20.0
095K3535F10	Non-detachable	10	36.0	36.0	35 / 35	400	700	20.0	20.0
095K3540F00	Non-detachable	-	36.0	38.5	35 / 40	450	750	20.0	22.5
095K3545F00	Non-detachable	-	36.0	43.5	35 / 45	450	750	20.0	25.0
095K3550F00	Non-detachable	-	36.0	48.5	35 / 50	425	800	20.0	27.5
095K3560F00	Non-detachable	-	36.0	57.5	35 / 60	175	800	20.0	32.5
