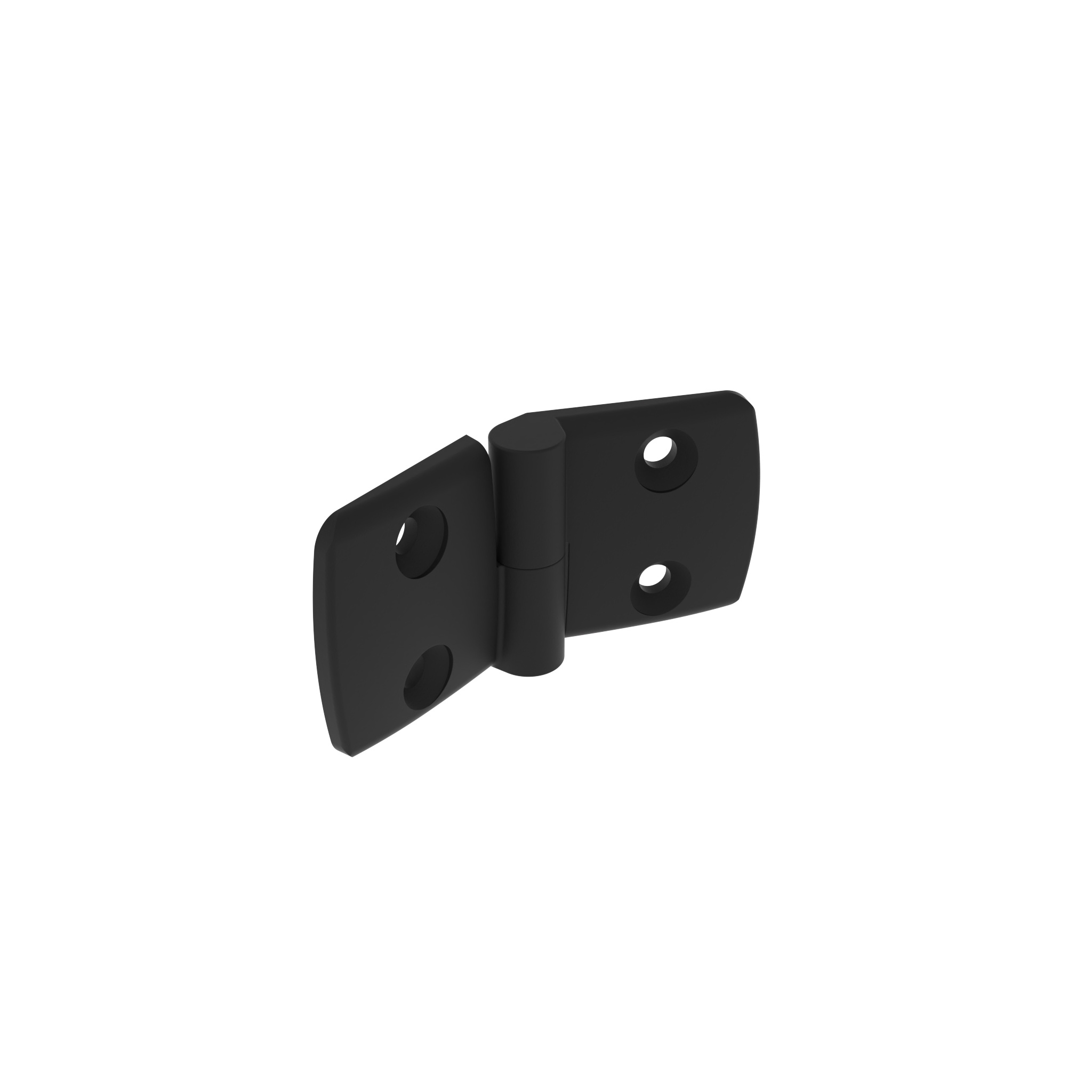

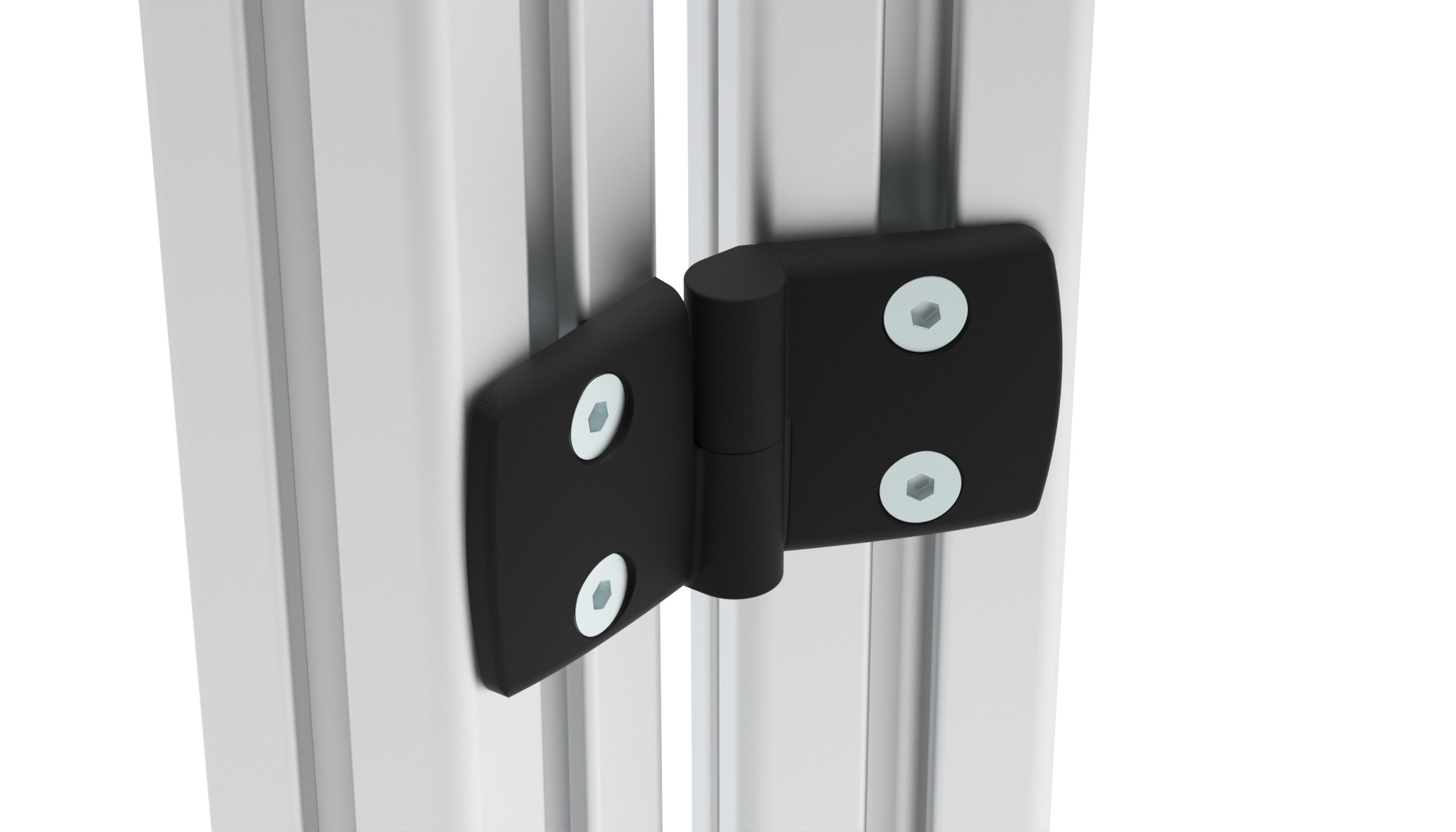

Plastic Combi Hinge 50, Detachable, Black

Product information "Plastic Combi Hinge 50, Detachable, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles

Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel

Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

(ECLASS 6.0):	23219090
(ECLASS 7.0):	23219090
(ECLASS 8.0):	23219090
(ECLASS 9.0):	23219090
(ECLASS 10.0):	23219090
(ECLASS 11.0):	23219090
(ECLASS 12.0):	23219090
(ECLASS 13.0):	23219090
Customs Tariff Number Export:	39263000
Fastening:	From the front, using M6 countersunk screws
Model:	Detachable
Pack Quantity:	10 pieces
Weight (g):	48.0
Zolltarifnummer:	39263000900
pA Number:	101997

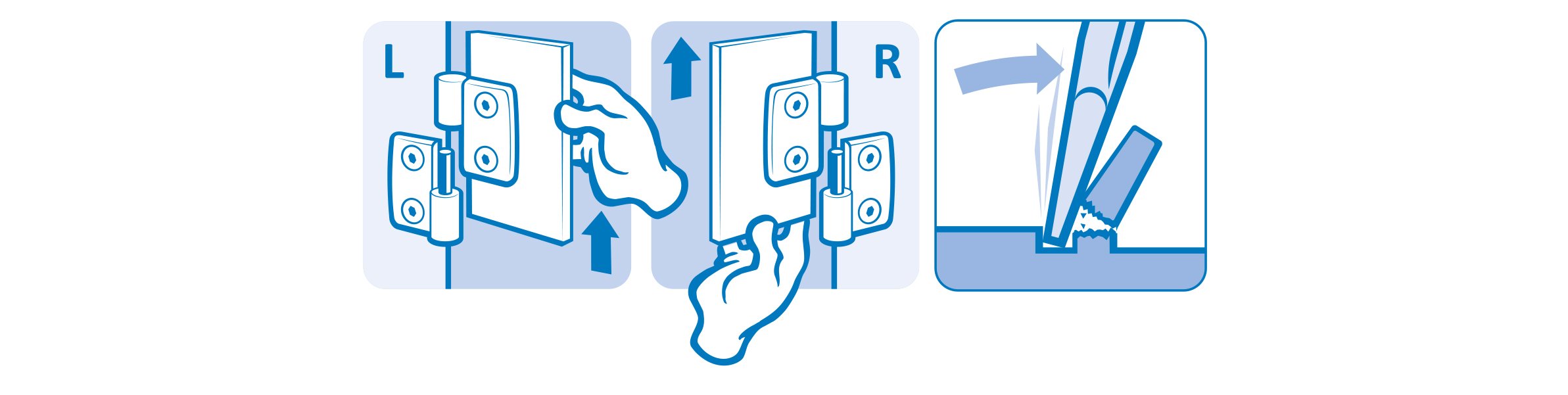

Variants

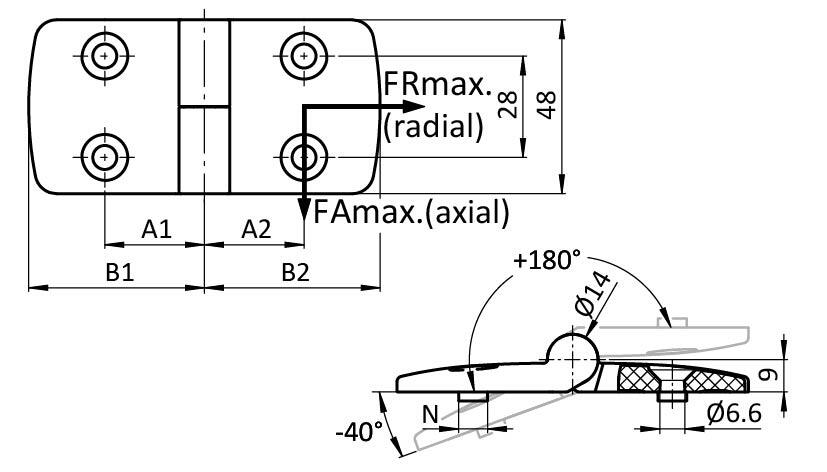

Product ID	B1 (mm)	Version	Slot N (mm)	A1 (mm)	Combination	FAmax (N)	FRmax (N)	B2 (mm)	A2 (mm)
095K5025L00	48.5	L: Left		27.5	50 / 25	425	650	26.0	15.0
095K5025R00	26.0	R: Right		15.0	50 / 25	425	650	48.5	27.5
095K5030L00	48.5	L: Left		27.5	50 / 30		750	29.5	17.5
095K5030R00	29.5	R: Right		17.5	50 / 30		750	48.5	27.5
095K5035L00	48.5	L: Left		27.5	50 / 35	400		36.0	20.0
095K5035R00	36.0	R: Right		20.0	50 / 35	400		48.5	27.5
095K5040L00	48.5	L: Left		27.5	50 / 40	350		38.5	22.5
095K5040R00	38.5	R: Right		22.5	50 / 40	350		48.5	27.5
095K5045L00	48.5	L: Left		27.5	50 / 45	325		43.5	25.0
095K5050L00	48.5	L: Left		27.5	50 / 50	320		48.5	27.5
095K5050L08	48.5	L: Left	8	27.5	50 / 50	320		48.5	27.5
095K5050L10	48.5	L: Left	10	27.5	50 / 50	320		48.5	27.5
095K5050R00	48.5	R: Right		27.5	50 / 50	320		48.5	27.5
095K5050R08	48.5	R: Right	8	27.5	50 / 50	320		48.5	27.5
095K5050R10	48.5	R: Right	10	27.5	50 / 50	320		48.5	27.5
095K5060L00	48.5	L: Left		27.5	50 / 60			57.5	32.5
