Plate Butt Connector B AL (Set)

Product information "Plate Butt Connector B AL (Set)"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

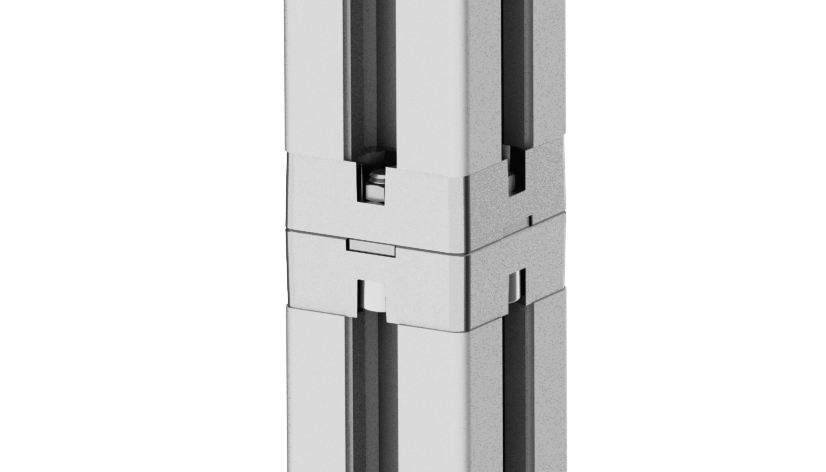

End-to-end connection of two aluminum profiles of the same type

Material:
Plate connector: Aluminum die-cast
Screws / hammer nuts: Steel

Set 1:
2 plate connectors,
2 screws DIN 7984 - M8 x30,
4 screws DIN 7984 - M5 x 20,
4 hexagon nuts DIN 934 - M5

Set 2:
2 plate connectors,
2 self forming screws S12 x 30 - hexalobular socket T50,
4 screws DIN 7984 - M6 x 20,
4 hexagon nuts DIN 439 B - M6

Set 3:
2 plate connectors,
2 self forming screws S12 x 30 - hexalobular socket T50,
4 screws DIN 7984 - M6 x 20,
4 hexagon nuts DIN 934 - M6

Surface:
Plate connector: Plain / powder coated
Screws / hammer nuts: Zinc plated

Tip:
Individual Plate Connector, not as part of a set, see 099EA30300808R

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum die-cast
Pack Quantity: 10 sets
Weight (g): 184.0

Variants

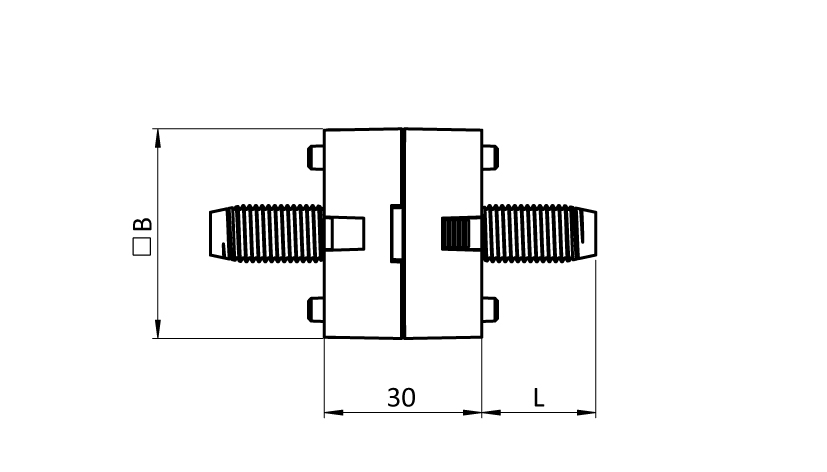

Product ID Profile Set L (mm) Color Slot N (mm) B (mm) Surface
099EA30300808AS02 B Set 1 21.0 Alu color 8 30 Powder coated
099EA30300808RS02 B Set 1 21.0 8 30 Plain
099EA40401012AS02 B Set 2 22.0 Alu color 10 40 Powder coated
099EA40401012RS02 B Set 2 22.0 10 40 Plain
099EA45451012RS02 B Set 3 24.0 10 45 Plain
