Plate Connector B AL

Product information "Plate Connector B AL"

Assembly Set 1:
1 screw DIN 7984 - M8 x 30,
2 screws DIN 7984 - M5 x 16,
2 hammer nuts - slot 8 - M5

Assembly Set 2:
1 self forming screw S12 x 30 - hexalobular socket T50,
2 screws DIN 7984 - M6 x 20,
2 hammer nuts - slot 10 - M6

Color:
Alu color

Delivery Countries:
Worldwide

Description:

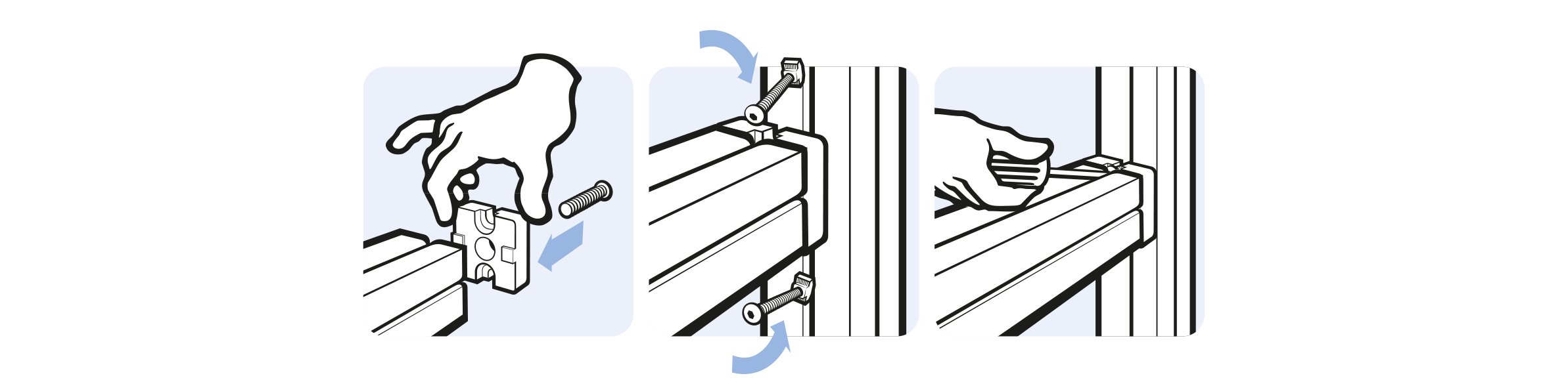

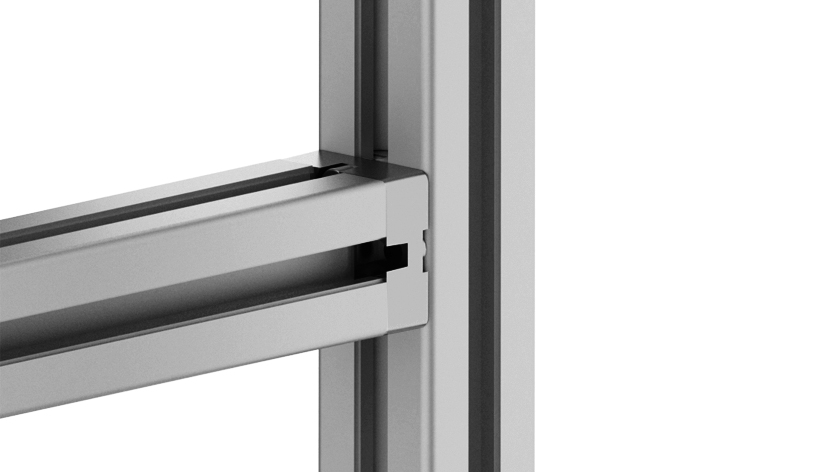

To tee connect two aluminum profiles

Material:
Plate connector: Aluminum die-cast
Assembly set: Steel

Specials:
Other surfaces on request

Surface:
Plate connector: Plain / powder coated
Assembly set: Zinc plated

Model:	Aluminum die-cast
Pack Quantity:	10 pieces / 10 set
Customs Tariff Number Export:	76169910
Weight (g):	39.0
(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
ERP Number:	135383
Zolltarifnummer:	76169910990

Variants

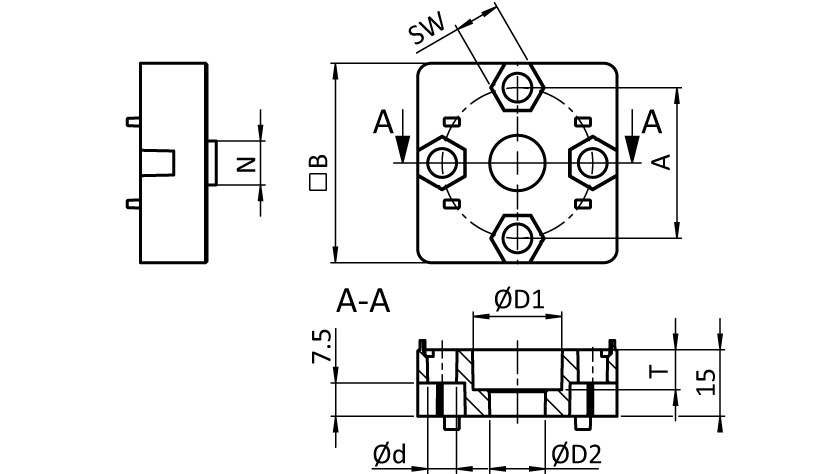

Part #	Assembly Set	Color	A (mm)	B (mm)	d (mm)	D1 (mm)	D2 (mm)	T (mm)	Slot N (mm)	Surface	SW (mm)	Profile
099EA30300808A	-	Alu color	21.6	30	5.5	13.6	8.5	6.0	8	Powder coated	8.9	-
099EA30300808AS01	With assembly set 1	Alu color	21.6	30	5.5	13.6	8.5	6.0	8	Powder coated	8.9	B
099EA30300808R	-	-	21.6	30	5.5	13.6	8.5	6.0	8	Plain	9	-
099EA30300808RS01	With assembly set 1	-	21.6	30	5.5	13.6	8.5	6.0	8	Plain	8.9	B
099EA40401012A	-	Alu color	30.0	40	6.2	20.0	12.4	6.5	10	Powder coated	10	-
099EA40401012AS01	With assembly set 2	Alu color	30.0	40	6.2	20.0	12.4	6.5	10	Powder coated	10	B
099EA40401012R	-	-	30.0	40	6.2	20.0	12.4	6.5	10	Plain	10	-
099EA40401012RS01	With assembly set 2	-	30.0	40	6.2	20.0	12.4	6.5	10	Plain	10	B
099EA45451012A	-	Alu color	34.0	45	6.5	20.0	12.5	9.0	10	Powder coated	10	-
099EA45451012AS01	With assembly set 2	Alu color	34.0	45	6.5	20.0	12.5	9.0	10	Powder coated	10	B
099EA45451012R	-	-	34.0	45	6.5	20.0	12.5	9.0	10	Plain	10	-
099EA45451012RS01	With assembly set 2	-	34.0	45	6.5	20.0	12.5	9.0	10	Plain	10	B
