Support Rollers

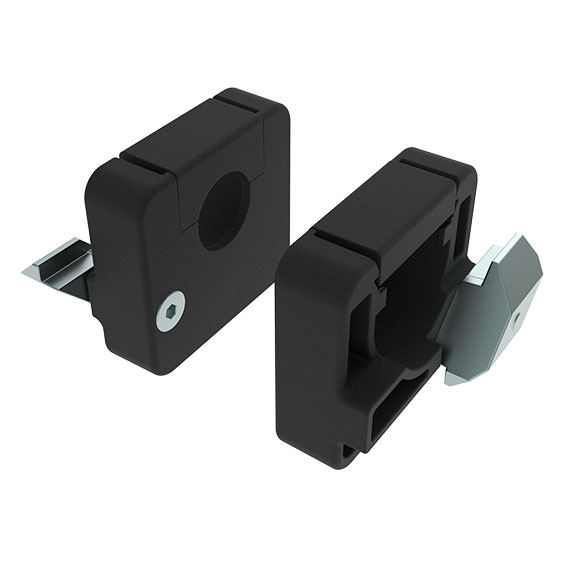

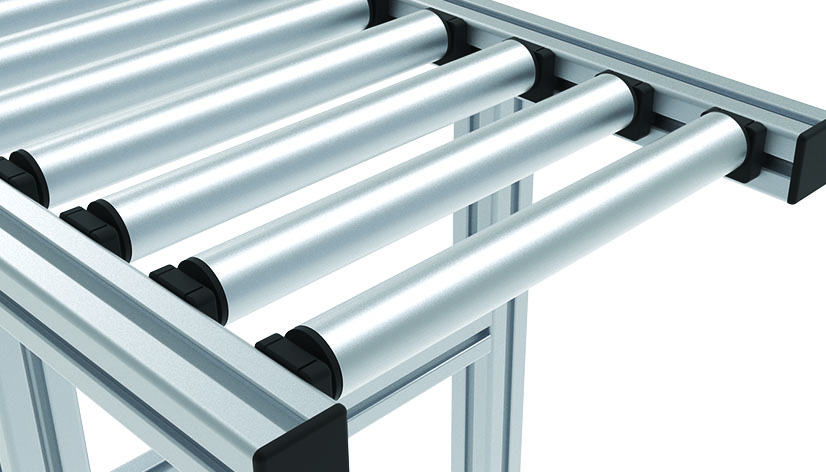

Bearing block for support roller I D32 (Set)
€0.00*
Profile:
I
|
Slot N (mm):
8
Color:Housing: BlackDelivery Countries:WorldwideDescription:To engage the bearings of a support roller I D32, mounting sideways in the slot 8 of the aluminum profileMaterial:Housing: Plastic PA, glass fiber reinforced Screw: Steel Rhombus nut: Zinc die-castSet:2 Bearing blocksSurface:Screw: Zinc plated Rhombus nut: Zinc platedTip:Compatible Bearing for Support Roller I D32 see 062CIL11KZolltarifnummer:39239000000
Bearing for Support Roller I D32
€0.00*
Profile:
I
Color:Housing: BlackDelivery Countries:WorldwideDescription:To build a support roller from one piece of tube D32 made of aluminum or plastic; The lateral ball bearings are inserted in two bearing blocks on the aluminum profilesMaterial:Housing: Plastic PA, glass fiber reinforced Ball bearings: SteelSet:2 Bearings for support roller I D32Tip:Compatible bearing block see 062CIAKZolltarifnummer:39269097900

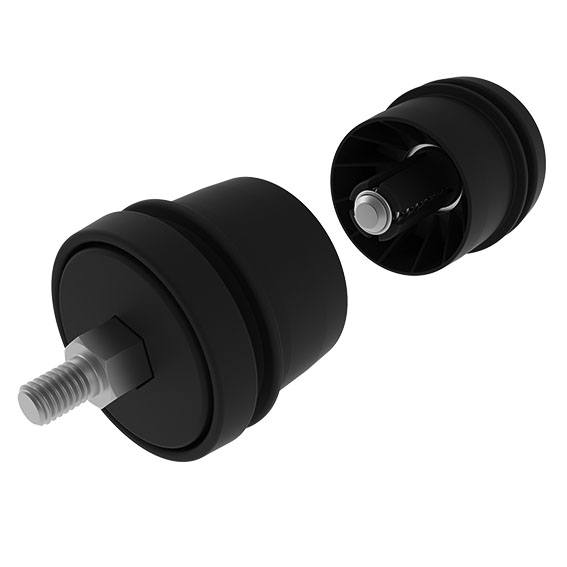

Bearing for Support Roller I D50
€0.00*
Color:Housing: BlackDelivery Countries:WorldwideDescription:To create a support roller I D50; ball beared, with circulating slot for ⌀ 4 mm round belt drive; with spring-loaded fastening bolt for subsequent insertingMaterial:Housing: Plastic PA, glass fiber reinforced Bolt: Steel Spring: Stainless steel Ball bearing: SteelSurface:Bolt: Zinc platedZolltarifnummer:84832000000

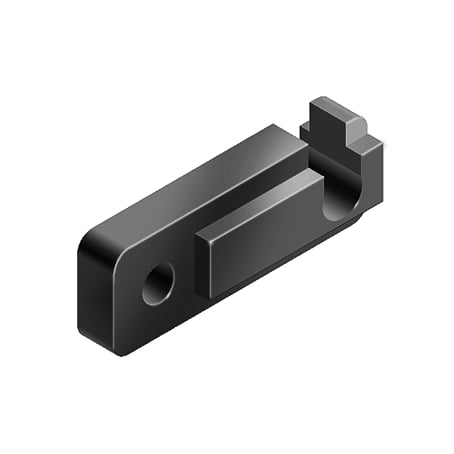

Roller Mounting Blocks
€0.00*
ESD:
ESD
|
Slot N (mm):
8 / 10
|
Version:
-
Assembly Set 1:1 screw DIN 7984 - M6 x 12, 1 hammer nut M6 - slot 8Assembly Set 2:1 screw DIN 7984 - M6 x 16, 1 hammer nut M6 - slot 10 Color:Roller Mounting Block: BlackDelivery Countries:WorldwideDescription:To mount track rollers on aluminum profiles; individual rollers can be replaced without dismantling the entire system; can be used for slot 8 and slot 10 by simply turning itMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other colors on requestSurface:Assembly set: Zinc platedZolltarifnummer:39269097900
