Enclosures, Guards and Partitions

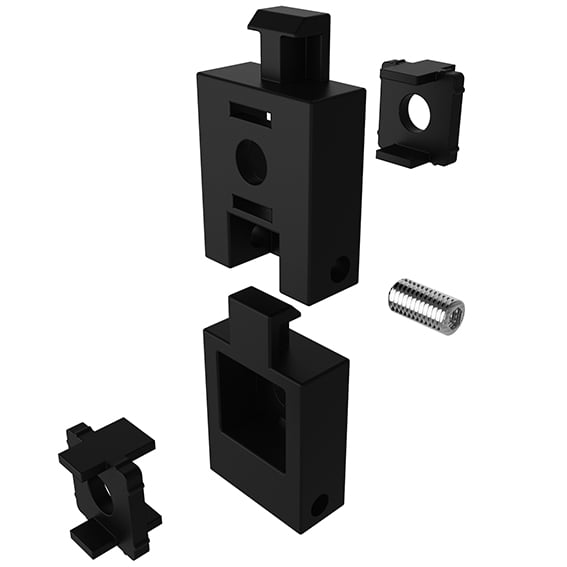

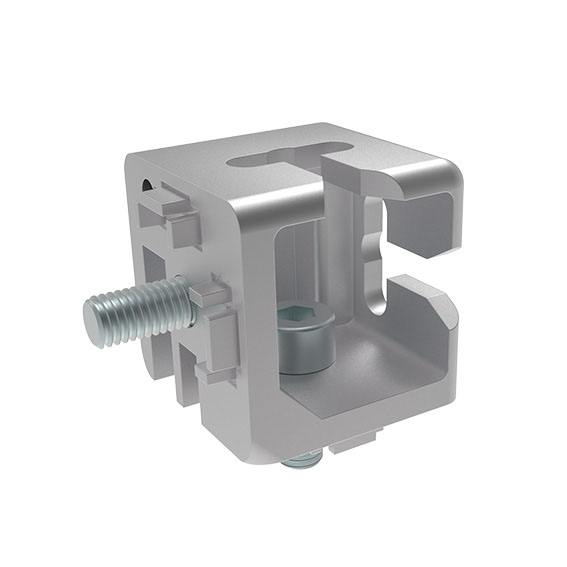

Clamp Profile Connector 30 (Set)
€0.00*
Profile:
I
|
Slot N (mm):
6
Color:Clamp profile connector: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and lockedMaterial:Clamp profile connector: Zinc die-cast Screws: SteelSet:1 clamp profile connector, 2 screws DIN EN ISO 7380 (DIN 34805) - M6 x 16Surface:Clamp profile connector: Powder coated Screws: Zinc platedTip:Compatible Mounting for Clamp Profile Connector 30 (Set) see 093XWWC301N06

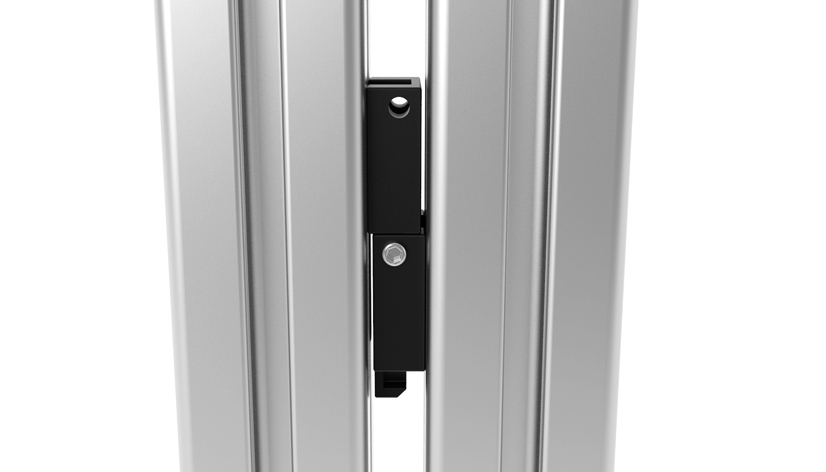

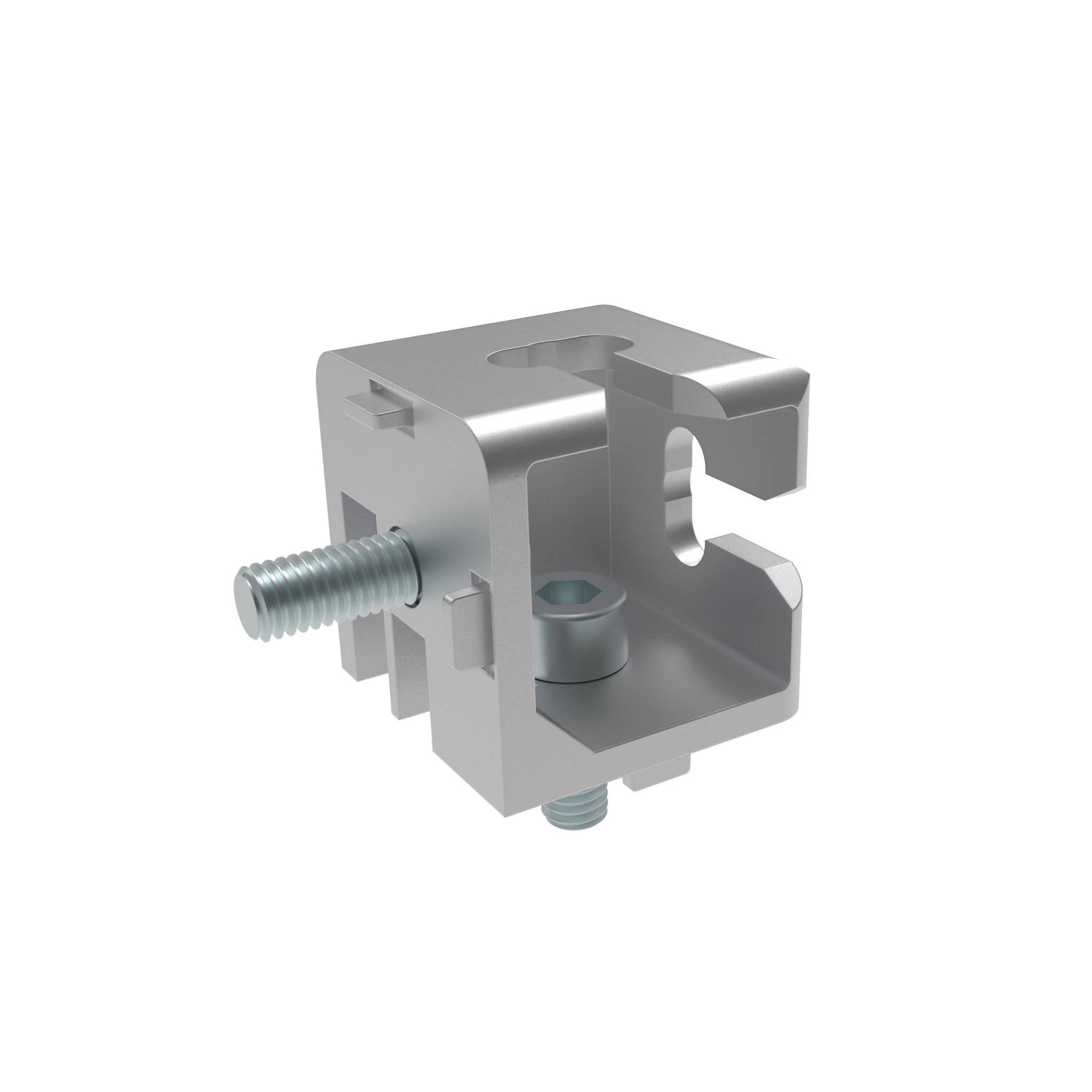

Clamp Profile Connector 40 (Set)
€0.00*
Profile:
I
|
Slot N (mm):
8
Color:Clamp profile connector: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and lockedMaterial:Clamp profile connector: Zinc die-cast Screws: SteelSet:1 clamp profile connector, 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 20Surface:Clamp profile connector: Powder coated Screws: Zinc platedTip:Compatible Mounting for Clamp Profile Connector 40 (Set) see 093XWWC401N08

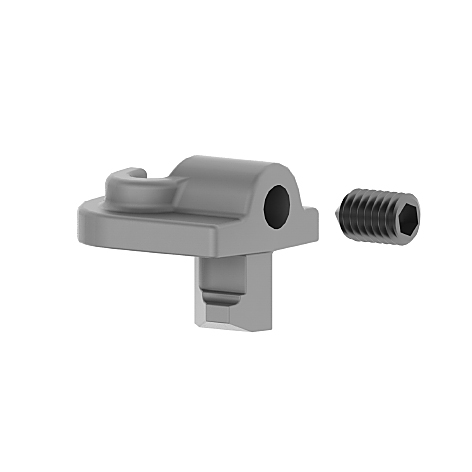

Hanger 6-8 (Set)
€0.00*
Slot N (mm):
6 / 8
Color:BlackDelivery Countries:WorldwideDescription:For an extra sturdy fastening of panels to fencing postsMaterial:Zinc die-castSurface:Powder coated

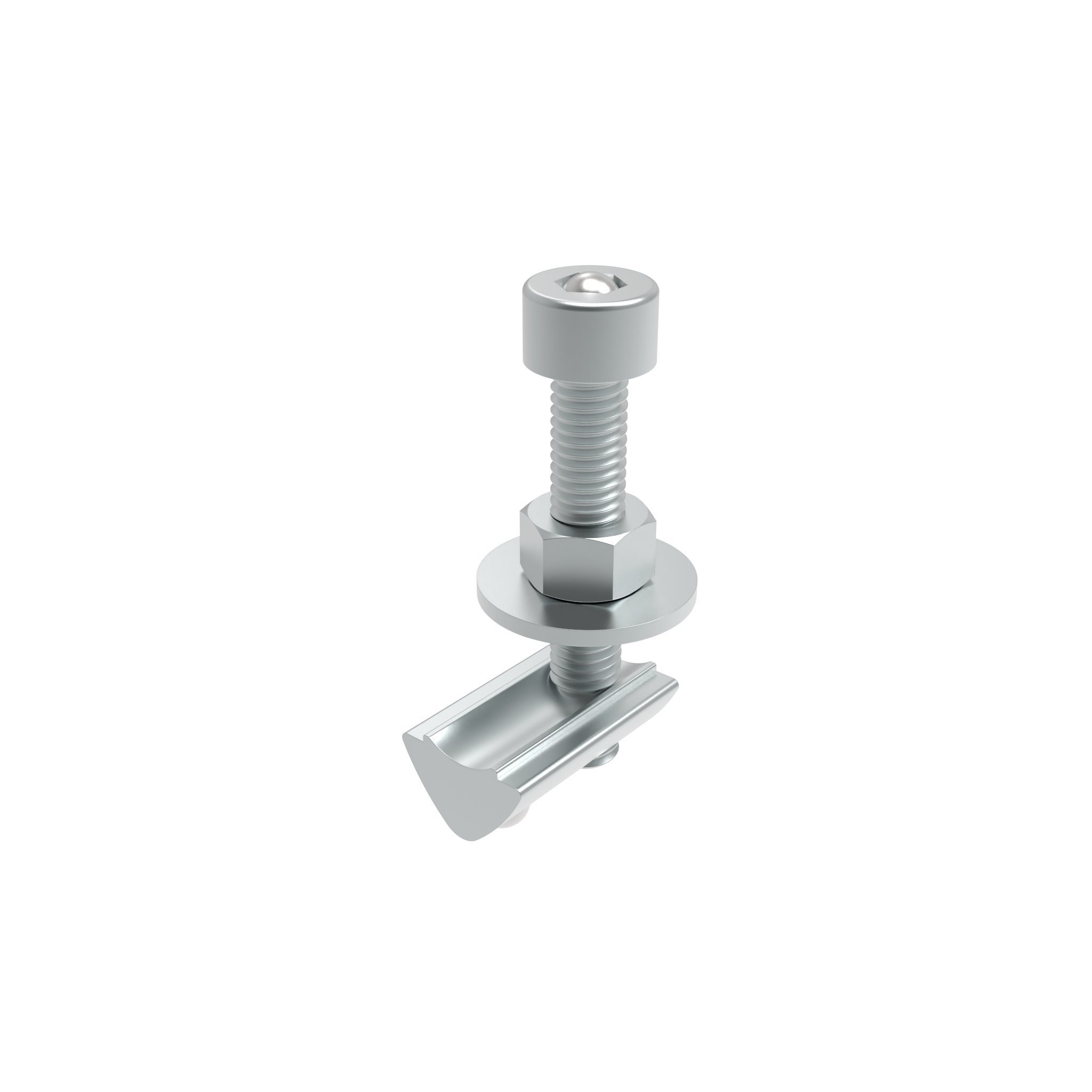

Mounting for Clamp Profile Connector 30 (Set)
€0.00*
Profile:
I
|
Slot N (mm):
6
Delivery Countries:WorldwideDescription:To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensatedMaterial:T-slot nut: Steel Shim: Steel Nut: Steel Screw: Steel Ball: Stainless steelSet:Mounting, completely preassembled: 1 T-slot nut - slot 6 - M5, 1 shim DIN EN ISO 7093 (DIN 9021) - 5.3, 1 nut DIN EN ISO 4032 (DIN 934) - M5, 1 screw DIN 7984 - M5 x 30, 1 ball Ø 4Surface:T-slot nut: Zinc plated Shim: Zinc plated Nut: Zinc plated Screw: Zinc plated Ball: PlainTip:Compatible Clamp Profile Connector 30 (Set) see 093WWC301N06S01

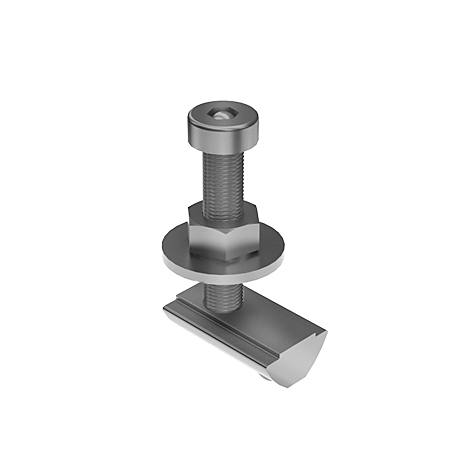

Mounting for Clamp Profile Connector 40 (Set)
€0.00*
Profile:
I
|
Slot N (mm):
8
Delivery Countries:WorldwideDescription:To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensatedMaterial:T-slot nut: Steel Shim: Steel Nut: Steel Screw: Steel Ball: Stainless steelSet:Mounting, completely preassembled: 1 T-slot nut - slot 8 - M6, 1 shim DIN EN ISO 7093 (DIN 9021) - 6.4, 1 nut DIN EN ISO 4032 (DIN 934) - M6, 1 screw DIN 7984 - M6 x 30, 1 ball Ø 4Surface:T-slot nut: Zinc plated Shim: Zinc plated Nut: Zinc plated Screw: Zinc plated Ball: PlainTip:Compatible Clamp Profile Connector 40 (Set) see 093WWC401N08S01

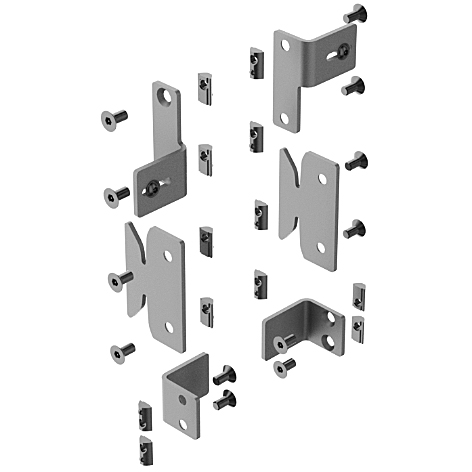

Safety Hanger 8/8 (Set)
€0.00*
Profile:
I
|
Slot N (mm):
8 / 8
Delivery Countries:WorldwideDescription:To comfortably hang on protective frame panels, according to Machinery Directive 2006/42/EC; gap distance 12 - 26 mmMaterial:Hanger: Steel Supporting hook: Steel Supporting angle: Steel Countersunk screws: Stainless steel T-slot nuts: SteelSet:2 hangers incl. calked safety fastening with pin, 2 supporting hooks, 2 supporting angles, 12 countersunk screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 - with pin, 12 T-slot nuts - slot 8 - M8Surface:Hanger: Zinc plated Supporting hook: Zinc plated Supporting angle: Zinc plated Countersunk screws: Plain T-slot nuts: Zinc plated

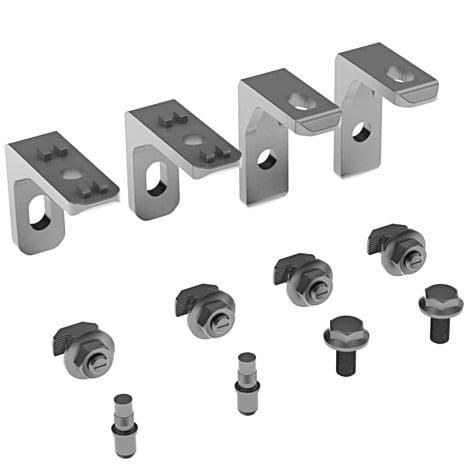

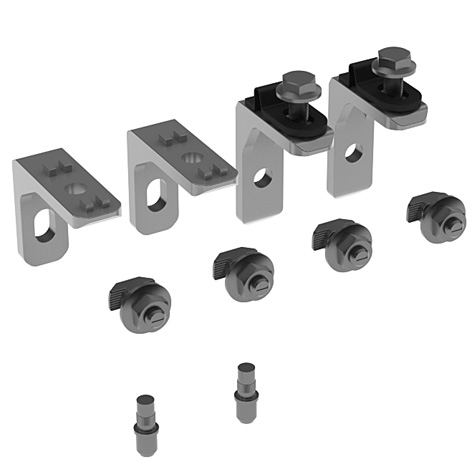

Supension Bracket (Set)
€0.00*
Profile:
B
|
Slot N (mm):
10
Delivery Countries:WorldwideDescription:To attach a protective frame panel between two postsMaterial:Suspension Bracket: Zinc die-cast, Assembly set: SteelSet:4 suspension brackets, 4 flange nuts M8, 4 hammer head screws M8 x 20, 2 locking screws - Verbus Ripp B - M8 x 16, 2 knurled pins Ø 8.6, for core holeSurface:Suspension Bracket: Plain, Assembly set: Zinc plated
Supension Bracket CS (Set)
€0.00*
Profile:
B
|
Slot N (mm):
10
Color:Safety strap: Black, Anti-loss washer: NaturalDelivery Countries:WorldwideDescription:To attach a protective frame panel betweentwo posts, according to Machinery Directive 2006/42/ECMaterial:Suspension Bracket: Zinc die-cast Assembly set: Steel Safety strap: Plastic PA Anti-loss washer: Plastic PASet:2 suspension brackets, 2 suspension brackets cs pre-assembled, 2 knurled pins Ø 8.6, for core hole, 2 locking screws - Verbus Ripp B - M8 x 25, 2 safety straps, 2 anti-loss washers, 4 hammer head screws M8 x 20, 4 flange nuts M8Surface:Suspension Bracket: Plain, Assembly set: Zinc plated
Wire Mesh Clamp
€0.00*
Delivery Countries:WorldwideDescription:To fix protective wire mesh panels, clamping range 3 up to 5 mm (straight grate up to 5 mm, wave grate up to 4 mm), can be assembled on profiles with slot 8 and slot 10Material:Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Zinc plated

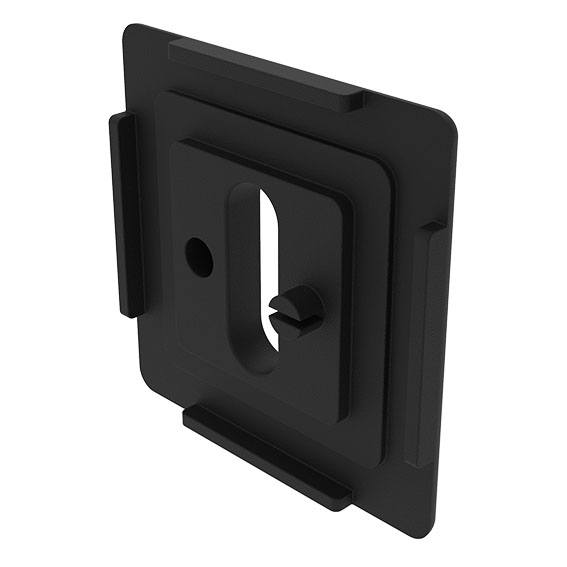

Wire Mesh Clamping Plate
€0.00*
Color:BlackDelivery Countries:WorldwideDescription:To attach handles, warning signs or information boards to woven wire mesh 40 x 40 x 4 and 30 x 30 x 3, e.g. form the front with screw and from the back with flange nut and shimMaterial:Plastic PA, glass ball reinforcedSpecials:Other colors on requestTip:* Please note: You need each two pieces 093048!

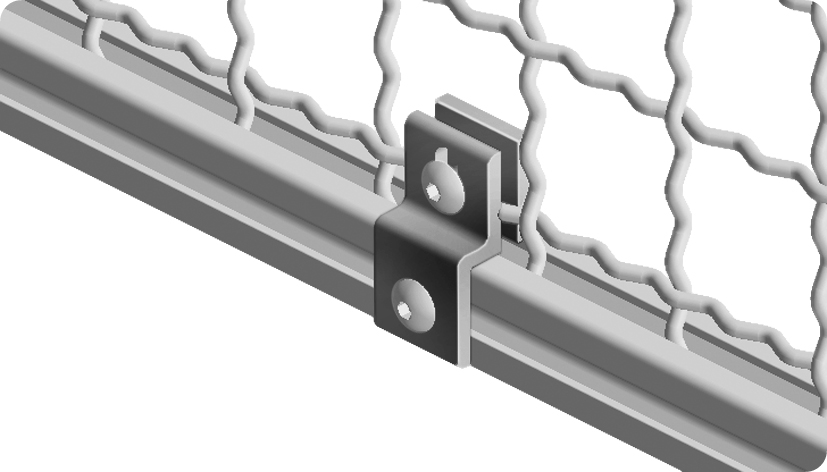

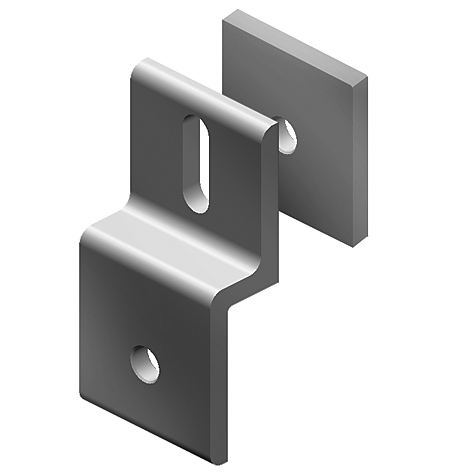

Wire Mesh Panel Holder (Set)
€0.00*
B (mm):
30.0
|
Grid:
30
|
H (mm):
68.0
|
L (mm):
10.0
|
P/D (mm):
-
|
S (mm):
11.0
|
T (mm):
15.0
|
a (mm):
17.0
|
t (mm):
6.0
Delivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:AluminumSet 1:1 wire mesh panel holder, 1 mounting plateSurface:Anodized
