Strut Profile, Sliding Door Guides
Filter products
–
Sliding Door Guide Set 30
€0.00*
B (mm):
30
|
Profile:
I
|
Set:
Set 2
|
Slot N (mm):
8
Color:Roller: Black Spacer: NaturalDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doorsMaterial:Casing: Aluminum die-cast Roller: Plastic PA, glass ball reinforced Spacer: Plastic PASet 1:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN 7991 (ISO 10642) - M6 x 22 (for profile) 3 spacersSet 2:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN 7991 (ISO 10642) - M8 x 20 (for profile) 3 spacersSurface:Casing: PlainZolltarifnummer:76169910990

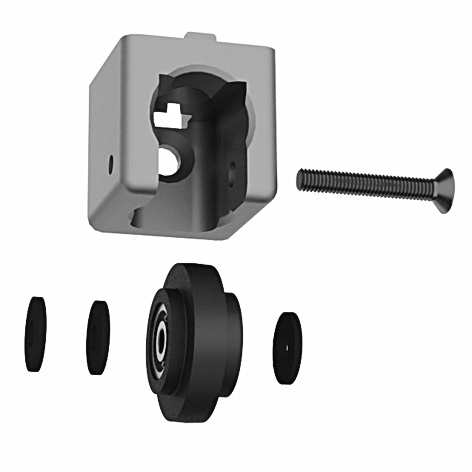

Sliding Door Guide Set 40 / 45
€0.00*
B (mm):
40
|
Profile:
B
|
Set:
Set 2
|
Slot N (mm):
10
|
ØD (mm):
12.5
Color:Roller: Black Spacer: NaturalDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doorsMaterial:Casing: Aluminum die-cast Roller: Plastic PA, glass ball reinforced Spacer: Plastic PASet 1:1 casing, 1 roller, 1 screw as axle, 3 spacersSet 2:1 casing, 1 roller, 1 screw as axle, 4 spacersSurface:Casing: PlainZolltarifnummer:83024110000
