Hammer Head Screws

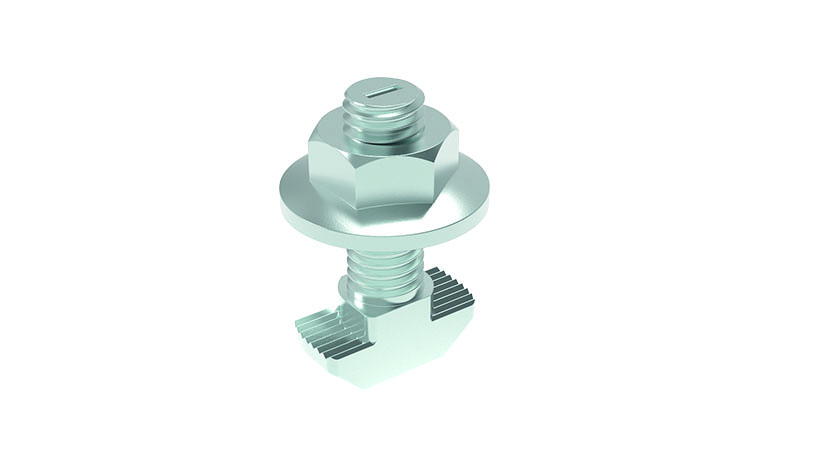

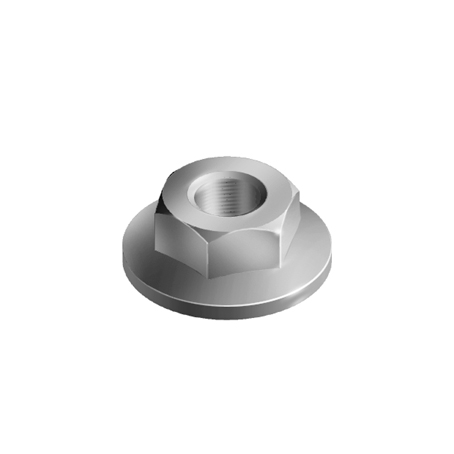

Flange Nut
€0.00*
D (mm):
max.17.9
|
H (mm):
7.9
|
Material:
Stainless steel
|
SW (mm):
13
Delivery Countries:WorldwideDescription:To be used in conjunction with a hammer head screwMaterial:Steel / stainless steelSurface:Zinc plated / plain

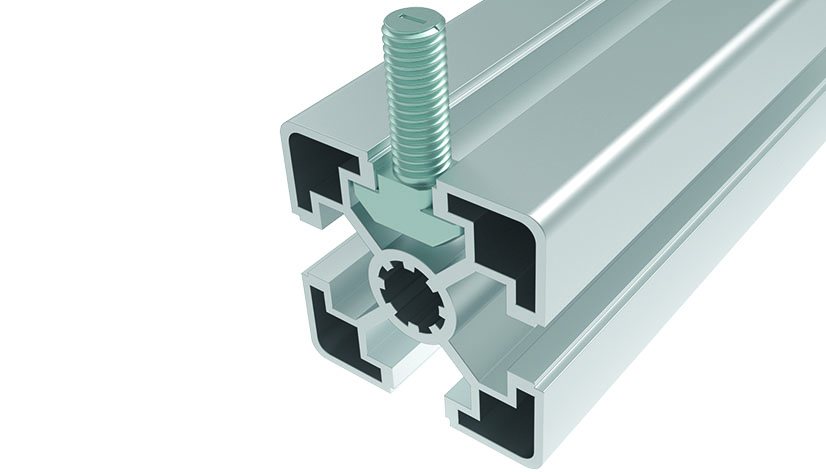

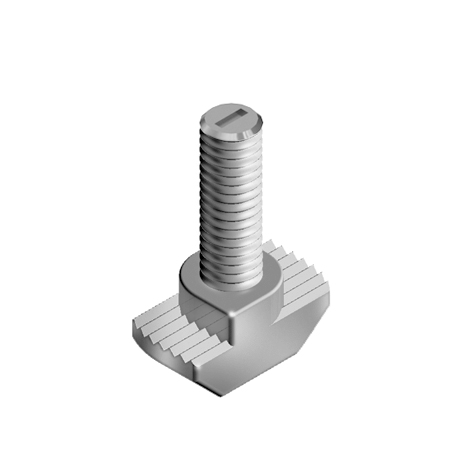

Hammer Head Screw Slot 10
€0.00*
B (mm):
9.7
|
H (mm):
1.5
|
Material:
Steel
|
Profile:
-
|
Size M x L (mm):
*M8 x 30
|
h (mm):
5.8
Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connectionMaterial:Steel / stainless steel SS316Specials:Turning help: Polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plainTip:Compatible Flange Nut see 340ME154 * Made of hammer nut with glued threaded rod

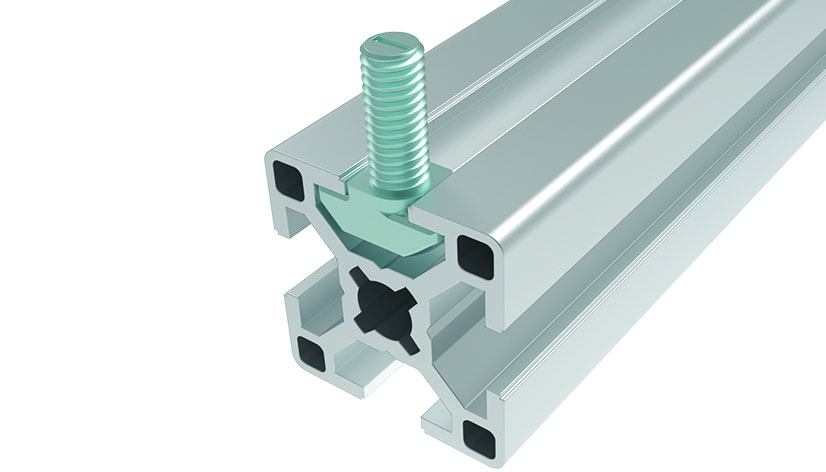

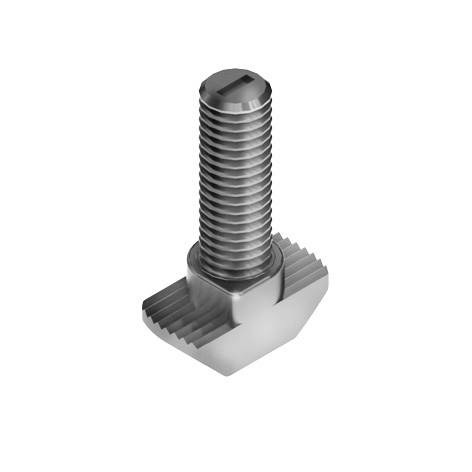

Hammer Head Screw Slot 8
€0.00*
H (mm):
1.5
|
Material:
Stainless steel
|
Profile:
B
|
Size M x L (mm):
*M6 x 40
|
h (mm):
4.7
Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connectionMaterial:Steel / stainless steel SS304Specials:Turning help: Polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plainTip:Compatible flange nut see 340ME154 * Made of hammer nut SS316 with glued threaded rod SS304
