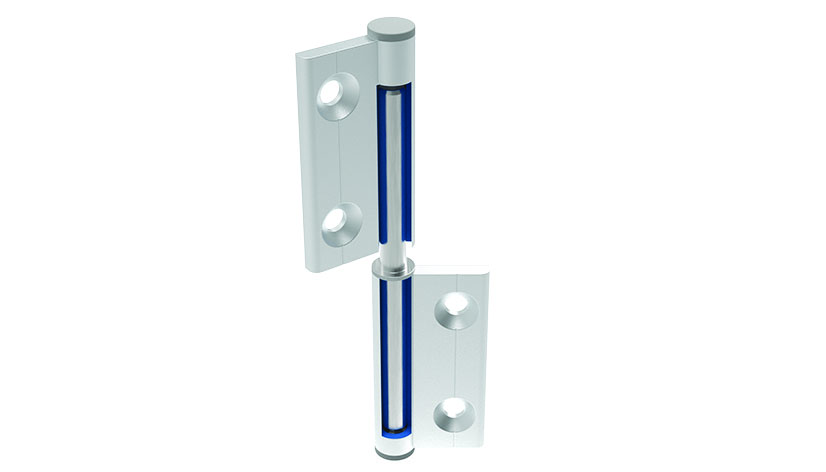

Aluminum Hinges
Bolt for Concealed and External Hinge Components
€0.00*
Delivery Countries:WorldwideDescription:To assemble hingesMaterial:Stainless steelSurface:PlainTip:Compatible Concealed Hinge Components see 095AI20 Compatible External Hinge Components see 095AH20Zolltarifnummer:73182900900
Concealed Hinge Component
€0.00*
A (mm):
17.5
|
B (mm):
28.0
|
C (mm):
Ø 6.4
|
FAmax (N):
150
|
Version:
25
Delivery Countries:WorldwideDescription:For panels and aluminum profiles, for individual assembly of concealed hingesMaterial:AluminumSurface:AnodizedTip:Compatible Axle for Hinge Component see 095AIR01 Compatible Cover Cap for Hinge Component see 095AIAZolltarifnummer:83021000900
Cover Cap for Concealed and External Hinge Components
€0.00*
Color:Alu colorDelivery Countries:WorldwideDescription:To cover HingesMaterial:Plastic PA, glass fiber reinforcedSurface:CoatedTip:Compatible Concealed Hinge Components see 095AI20 Compatible External Hinge Components see 095AH20Zolltarifnummer:39269097900
External Hinge Component
€0.00*
A (mm):
30.2
|
B (mm):
57.7
|
C (mm):
Ø 6.4
|
FAmax (N):
150
|
Version:
60
Delivery Countries:WorldwideDescription:For panels and aluminum profiles, for individual assembly of semi-concealed hingesMaterial:AluminumSurface:AnodizedTip:Compatible Axle for Hinge Component see 095AIR01 Compatible Cover Cap for Hinge Component see 095AIAZolltarifnummer:83021000900
