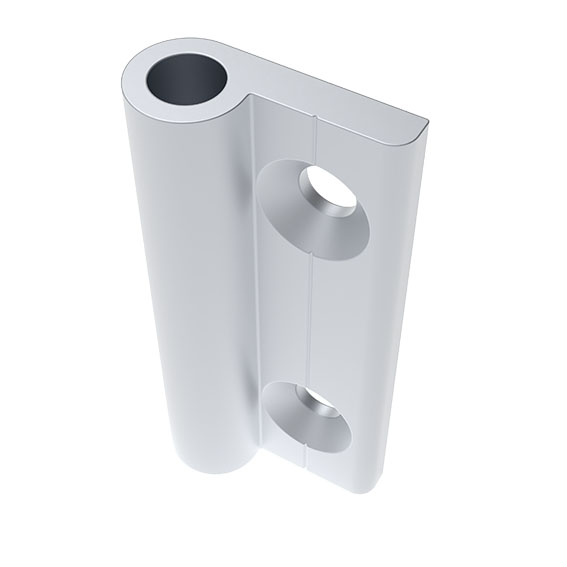

External Hinge Component

Product information "External Hinge Component"

Delivery Countries:
Worldwide

Description:

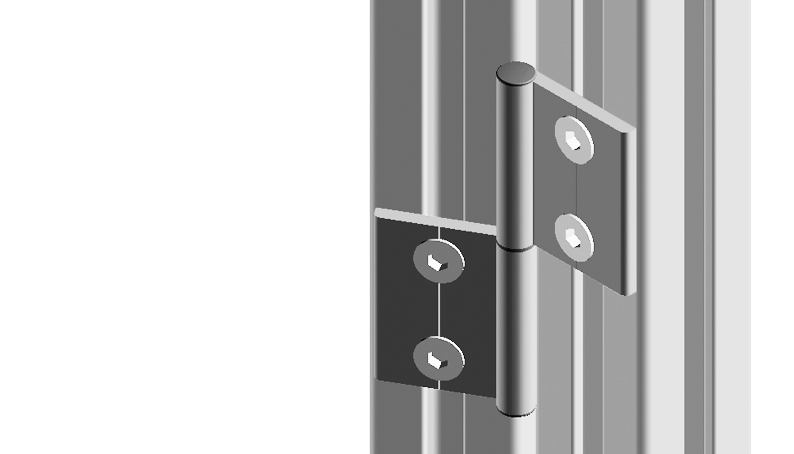

For panels and aluminum profiles, for individual assembly of semi-concealed hinges

Material:
Aluminum

Surface:
Anodized

Tip:
Compatible Axle for Hinge Component see 095AIR01
Compatible Cover Cap for Hinge Component see 095AIA

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23211191
(ECLASS 12.0): 23211191
(ECLASS 13.0): 23211191

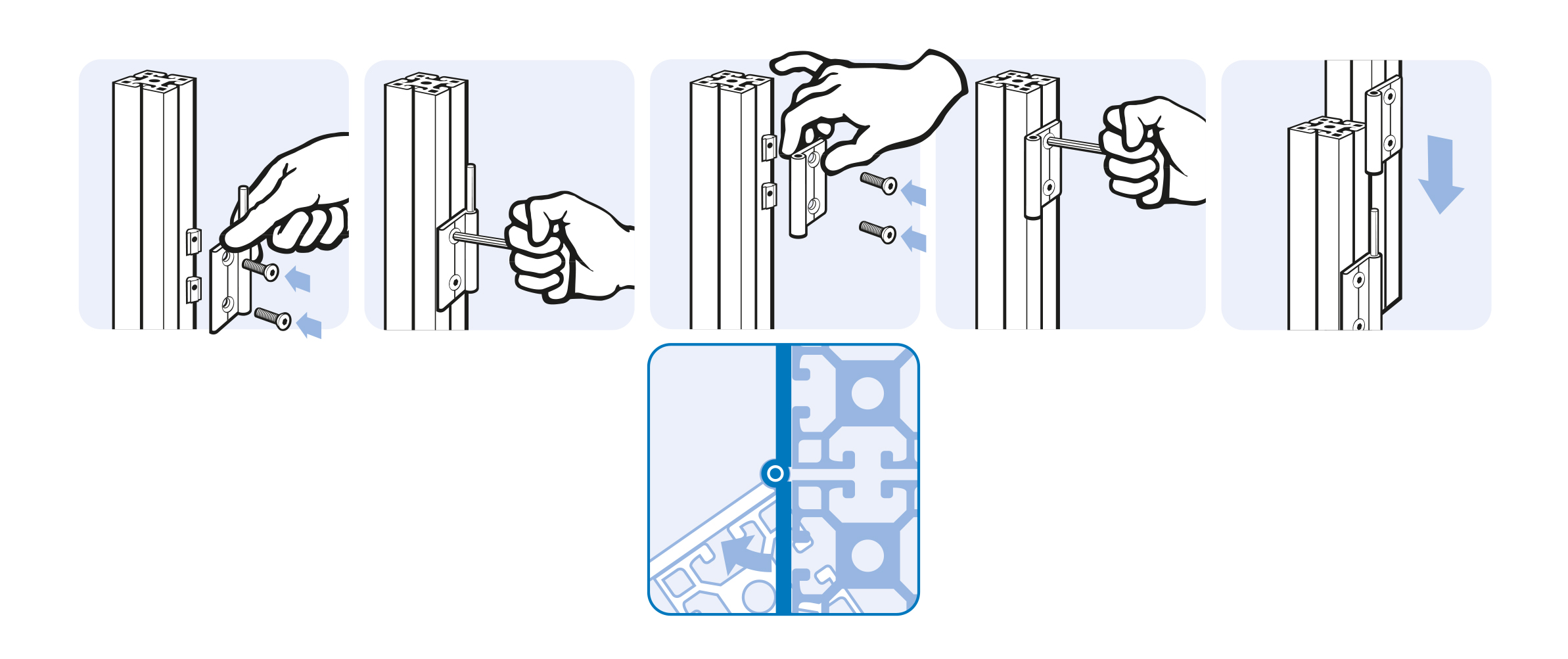

Fastening: From the front, using countersunk screws
Model: Aluminum, anodized
Pack Quantity: 10 pieces
Weight (g): 34.4

Variants

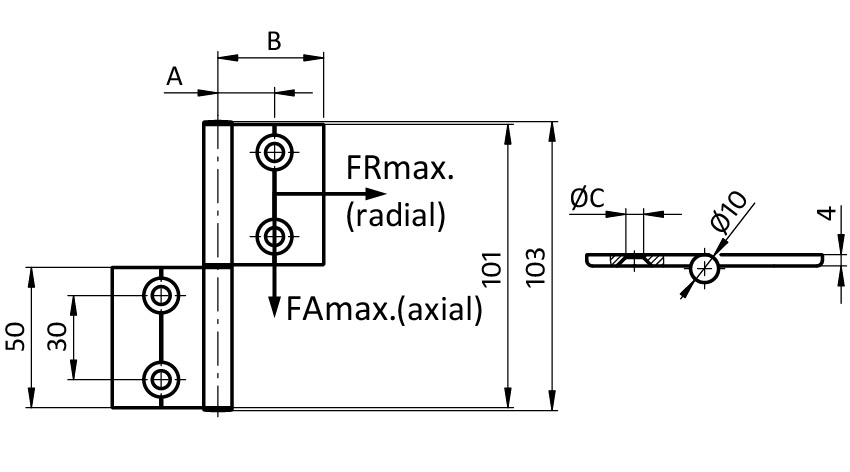

Product ID FAmax (N) Version C (mm) B (mm) A (mm)
095AH20 150 20 Ø 5.3 18.0 10.5
095AH25 150 25 Ø 6.4 23.4 12.9
095AH30 150 30 Ø 6.4 27.7 15.2
095AH38 150 38 Ø 6.4 35.8 19.25
095AH40 150 40 Ø 6.4 37.7 20.2
095AH45 150 45 Ø 6.4 42.7 22.7
095AH50 150 50 Ø 6.4 47.7 25.2

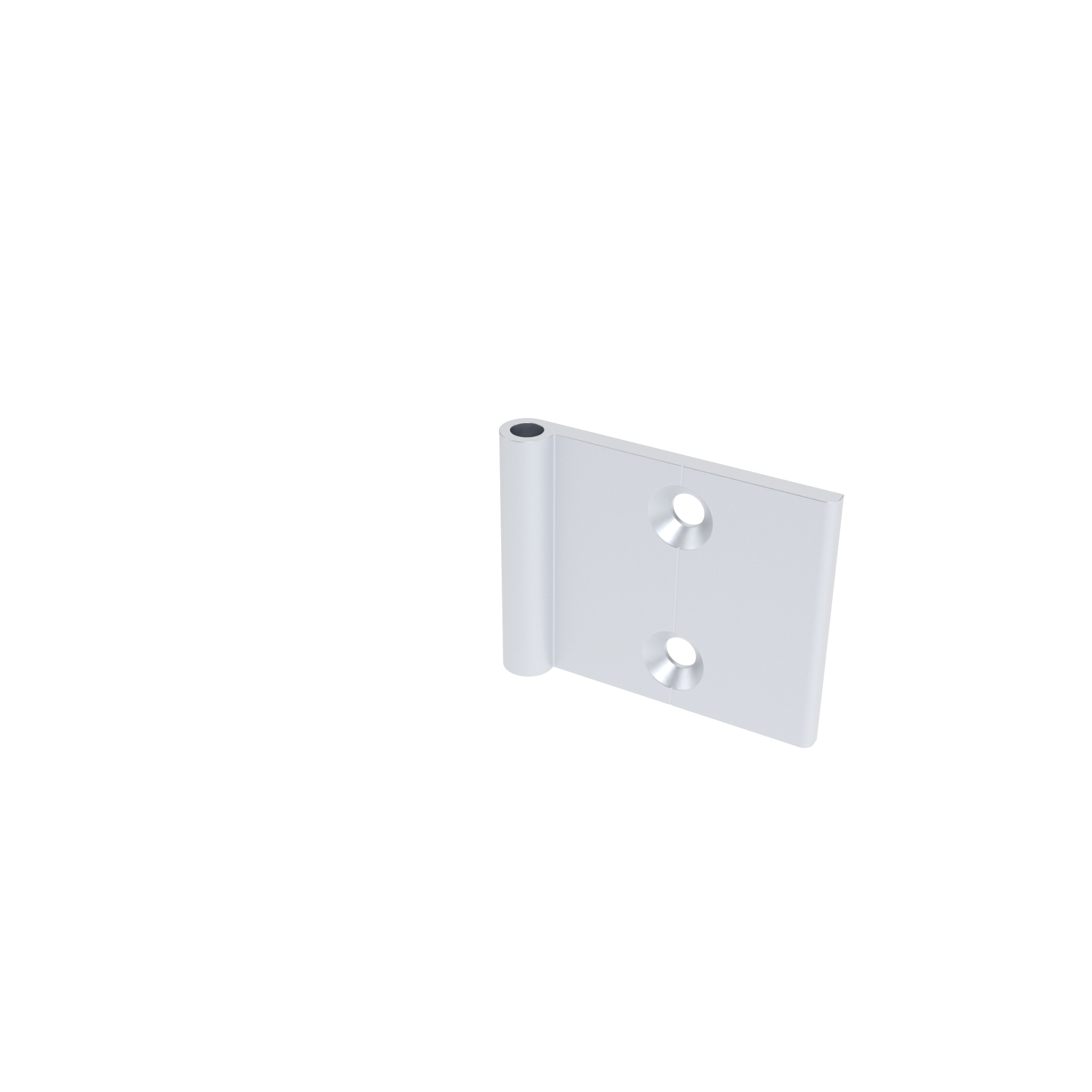

095AH60 150 60 Ø 6.4 57.7 30.2
