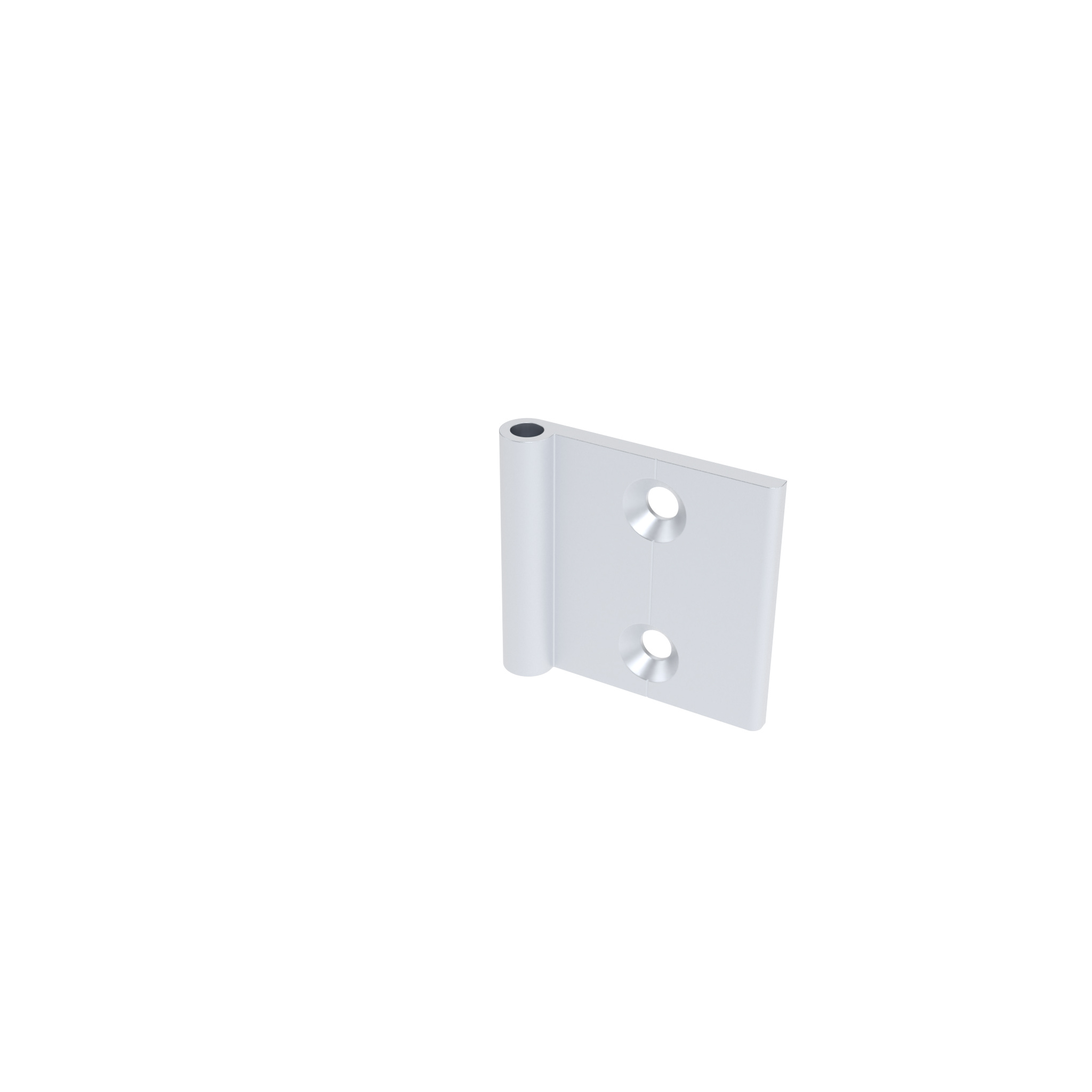

External Hinge Component

Product information "External Hinge Component"

Delivery Countries:
Worldwide

Description:
For panels and aluminum profiles, for individual assembly of semi-concealed hinges

Fastening:
From the front, using countersunk screws

Material:
Aluminum

Surface:
Anodized

Tip:
Compatible Axle for Hinge Component see 095AIR01
Compatible Cover Cap for Hinge Component see 095AIA

Pack Quantity:	10 pieces
Model:	Aluminum, anodized
Weight (g):	29.0
ERP Number:	113572

Variants

Part #	Version	A (mm)	B (mm)	C (mm)	FAmax (N)	FRmax (N)
095AH20	20	10.5	18.0	Ø 5.3	150	100
095AH25	25	12.9	23.4	Ø 6.4	150	100
095AH30	30	15.2	27.7	Ø 6.4	150	100
095AH38	38	19.25	35.8	Ø 6.4	150	100
095AH40	40	20.2	37.7	Ø 6.4	150	100
095AH45	45	22.7	42.7	Ø 6.4	150	100
095AH50	50	25.2	47.7	Ø 6.4	150	100
095AH60	60	30.2	57.7	Ø 6.4	150	100

CAD Downloads

Classifications

ECLASS 6.0: 23199090
ECLASS 7.0: 23199090
ECLASS 8.0: 23199090
ECLASS 9.0: 23199090
ECLASS 10.0: 23199090
ECLASS 11.0: 23211191
ECLASS 12.0: 23211191
ECLASS 13.0: 23211191
Zolltarifnummer: 83021000900
Customs Tariff Number Export: 83021000

Certificates

Tags

Profile Type	Profile Type B, Profile Type I
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering
