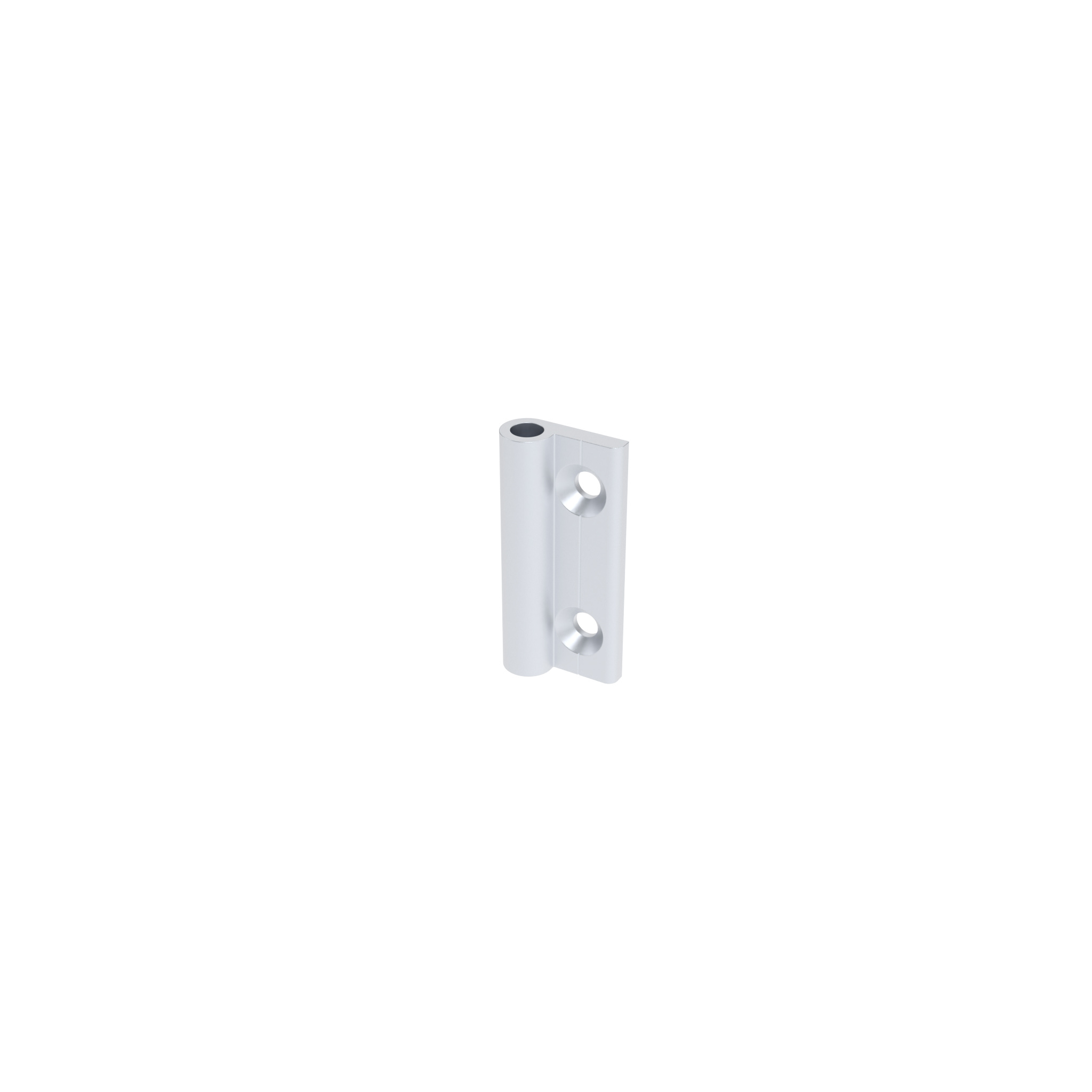

External Hinge Component
Part #:
095AH20
Product information "External Hinge Component"
Delivery Countries:
Worldwide
Description:

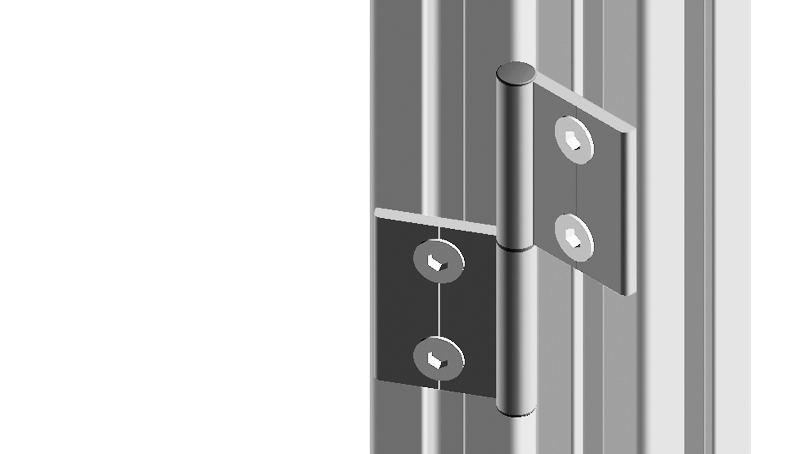

For panels and aluminum profiles, for individual assembly of semi-concealed hinges
Material:
Aluminum
Surface:
Anodized
Tip:
Compatible Axle for Hinge Component see 095AIR01
Compatible Cover Cap for Hinge Component see 095AIA
Worldwide
Description:
For panels and aluminum profiles, for individual assembly of semi-concealed hinges
Material:
Aluminum
Surface:
Anodized
Tip:
Compatible Axle for Hinge Component see 095AIR01
Compatible Cover Cap for Hinge Component see 095AIA
| (ECLASS 6.0): | 23199090 |
|---|---|
| (ECLASS 7.0): | 23199090 |
| (ECLASS 8.0): | 23199090 |
| (ECLASS 9.0): | 23199090 |
| (ECLASS 10.0): | 23199090 |
| (ECLASS 11.0): | 23211191 |
| (ECLASS 12.0): | 23211191 |
| (ECLASS 13.0): | 23211191 |
| Customs Tariff Number Export: | 83021000 |

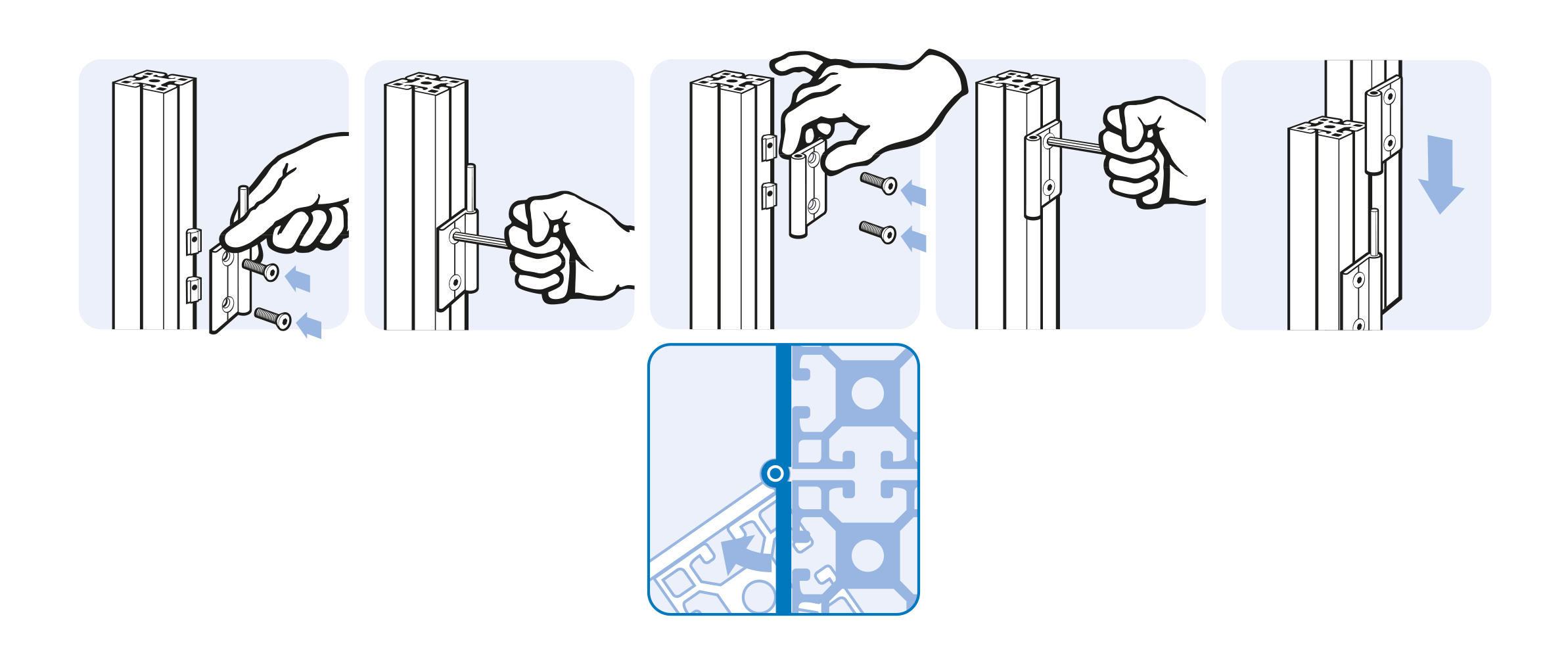

| Fastening: | From the front, using countersunk screws |
| Model: | Aluminum, anodized |
| Pack Quantity: | 10 pieces |
| Weight (g): | 13.5 |
| Zolltarifnummer: | 83021000900 |
| pA Number: | 113566 |
