Product Portrait


Magnifying Lamp D160 With Jointed Arm

Precision work accurate and efficient – with the FATH magnifying lamp D160 with jointed arm

The FATH magnifying lamp D160 with jointed arm provides optimum visibility at the assembly workstation and thus enables fatigue-free and ergonomic working. The error rate is minimized, productivity increases.

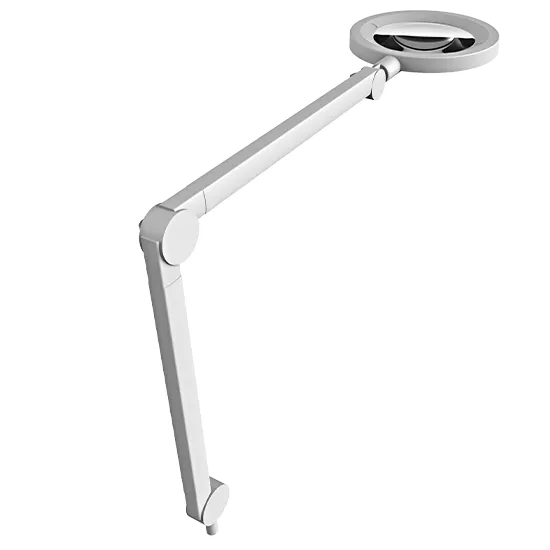

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • Adapter set for mounting on aluminum profiles - without clamp
  • Jointed arm can be mounted vertically, horizontally and diagonally
  • Adjustable friction for stable hold
  • High-quality, robust plastic parts

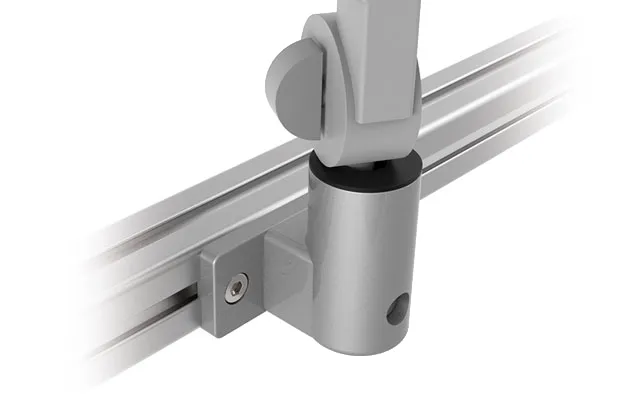

Strong fixation on the aluminum profile – without table clamp

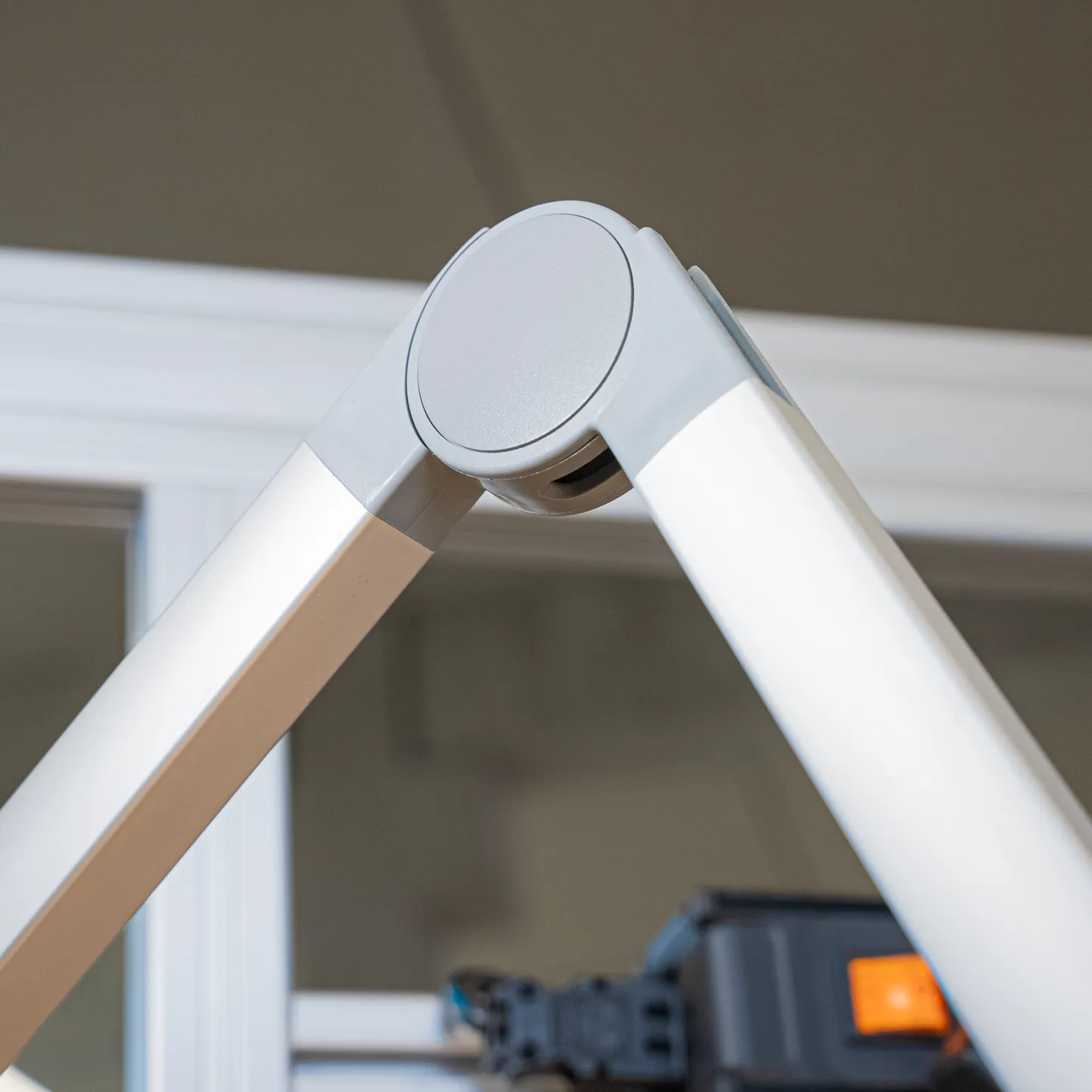

The jointed arm of the FATH magnifying lamp D160 can be screwed directly to an aluminum profile 40x40 using the adapter. This leaves the working area free. The perfectly balanced jointed arm with adjustable friction and large swivel range allows vertical rotation of 360°. The head joint can be swivelled horizontally by 270°. The FATH magnifying lamp thus offers a large radius of action and maximum flexibility.

With a single hand movement, the FATH magnifying lamp D160 can be individually adjusted to the needs of the individual employee.

Just as easy is the re-adjustment for a perfect view at every work step. This ensures fatigue-free working in the long term. Due to the adjustable friction, the magnifying lamp has a stable hold in every position and at every angle of inclination. In this way you achieve an optimum of efficiency and ergonomics at the workplace.

Clear view: distortion-free magnification and precise vision



The magnifying lamp can be flexibly adapted to different visual tasks and supports the employee in demanding precision work. Thanks to the plastic lens with a diameter of 160 mm and 3.5 dioptres, the large viewing window enables distortion-free magnification of 190% and thus precise, exact vision even while handling the smallest parts.

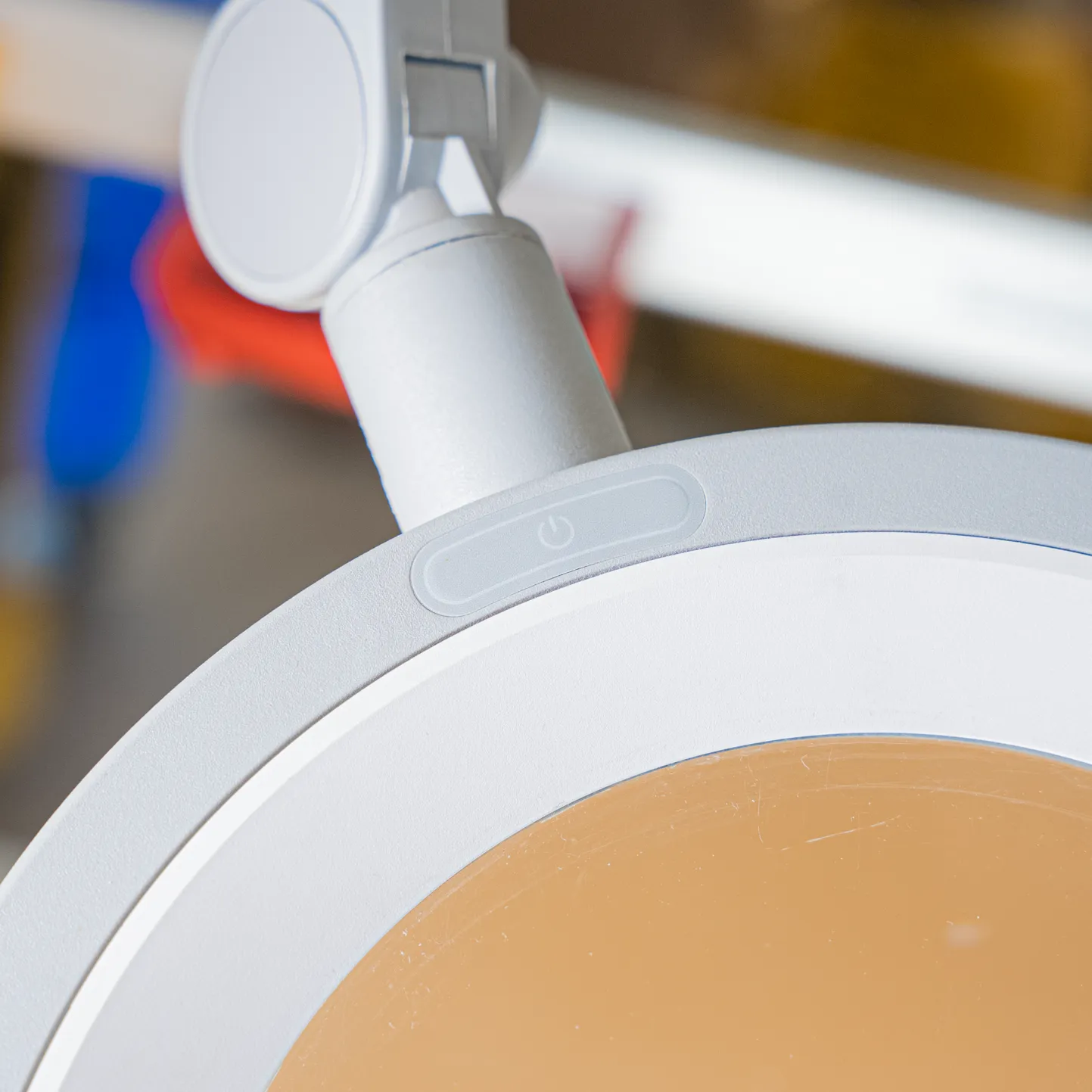

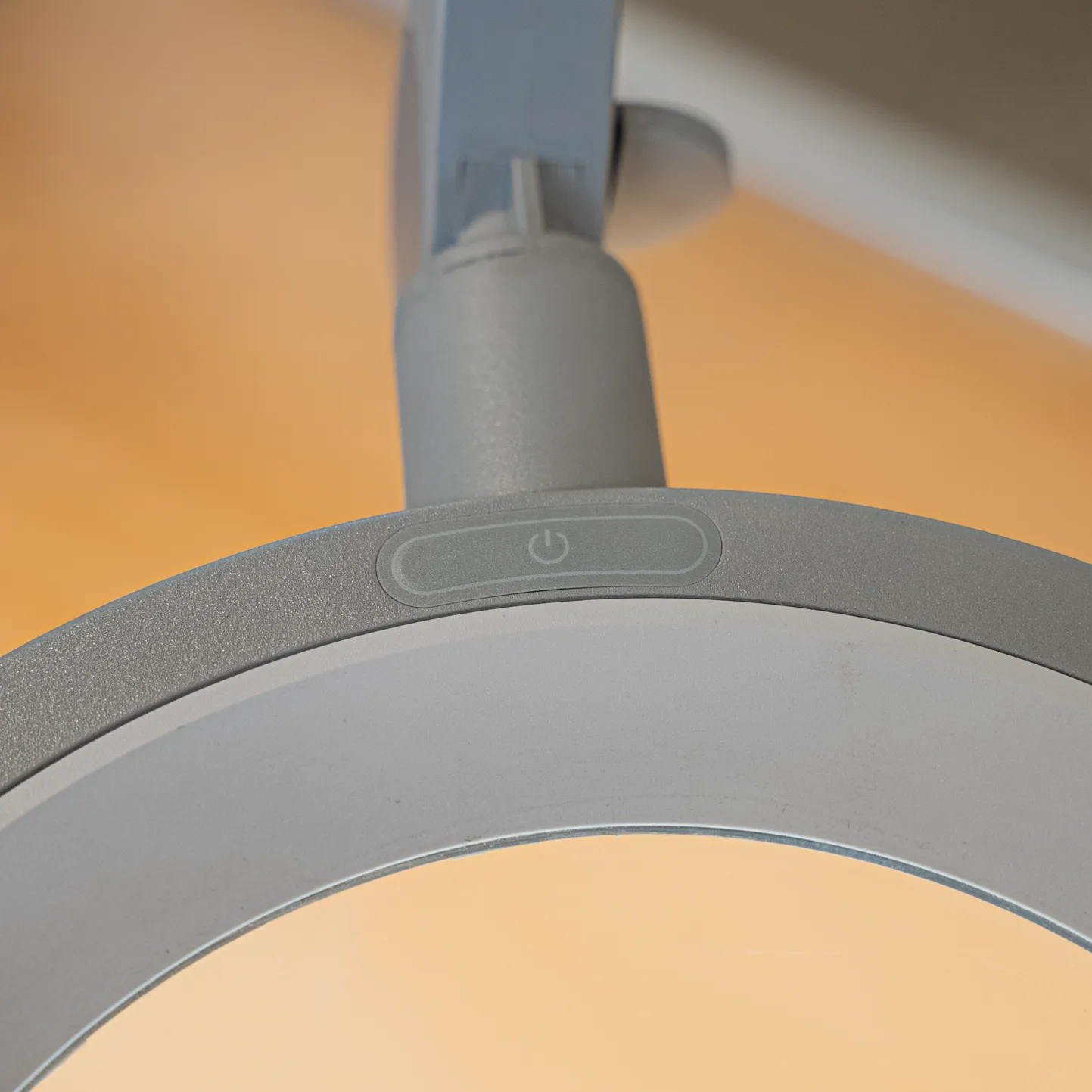

The generously dimensioned LED ring light can be dimmed steplessly via a push button.

The flicker-free lighting does not cast any irritating shadows and is pleasant to the eye thanks to the neutral white 5000 K colour temperature. The FATH magnifying lamp D160 is equipped with modern LED technology of energy efficiency class A++. A removable cover protects the viewing window from scratches and damage caused by bundled light. The robust design made of aluminum and high-quality plastic parts is perfectly equipped for the use in industrial production.

WOULD YOU ALSO LIKE TO GET TO KNOW THE MODULAR LED LAMPS IN THE F LINE SERIES FROM FATH?

Discover all the variants here: dimmable, with button, for series connection and also available as ESD variants.


Go to Machine Lights

VERSIONS

Skip product gallery

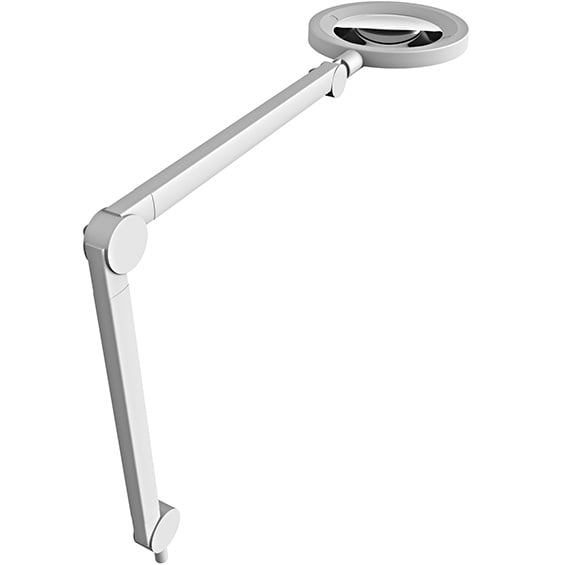

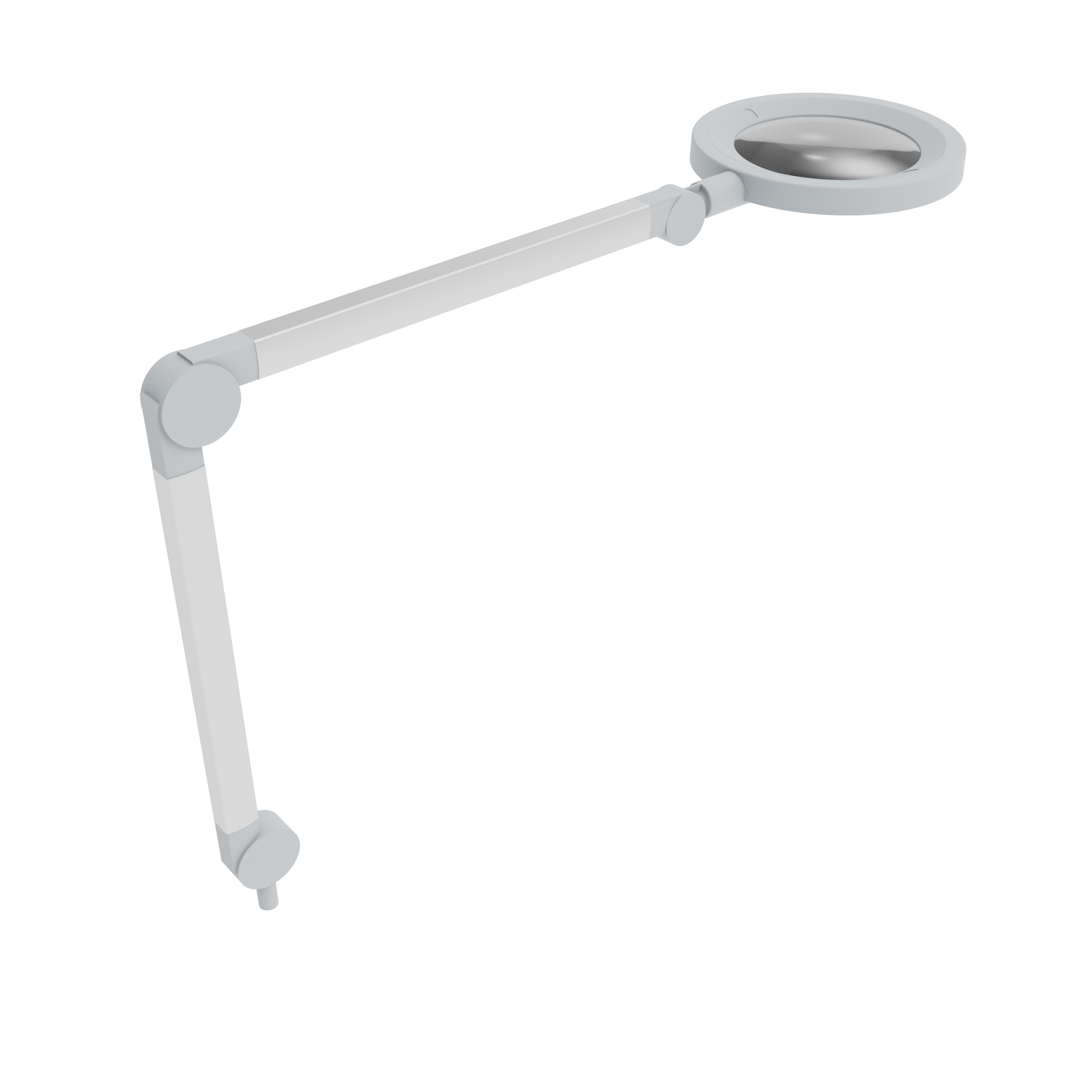

Magnifying Lamp D160 with Jointed Arm (Set)
ØD (mm): 160
Color:Housing: Gray Cover: GrayDelivery Countries:WorldwideDescription:For fatigue-free and ergonomic precision work without irritating shading; LED ring lamp of energy efficiency class A++ with push button for stepless dimming, color temperature neutral white 5000 K, color rendering Ra >80, power consumption 15 W, protection class IP20; Large field of vision thanks to plastic lens ⌀ 160 mm with 3.5 diopters for distortion-free magnification of 190%, a cover prevents scratches and damages caused by focused light; Well-balanced jointed arm with adjustable friction and large swivel range, 360° vertically rotatable; head joint 270° horizontally pivotable; Mounting with optional adapterMaterial:Jointed Arm: Aluminum Housing: Plastic Lens: Acrylic glass PMMA Cover: Plastic PCSet:1 magnifying lamp 1 plug-in power supply protection class II 100-240V, 50/60 Hz with 3 m connecting cable 3 interchangeable adapter EU/UK/USSurface:Jointed Arm: AnodizedTip:Compatible Side Adapter see 069A4090ZN1635, Compatible Table Clamp Adapter on requestZolltarifnummer:94052140000

€0.00*

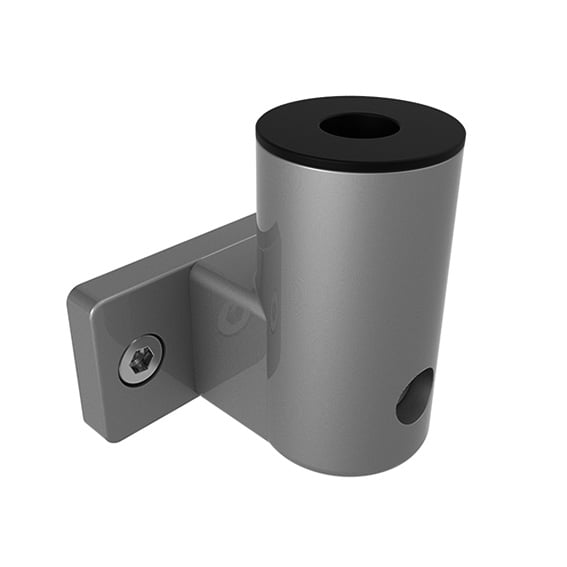

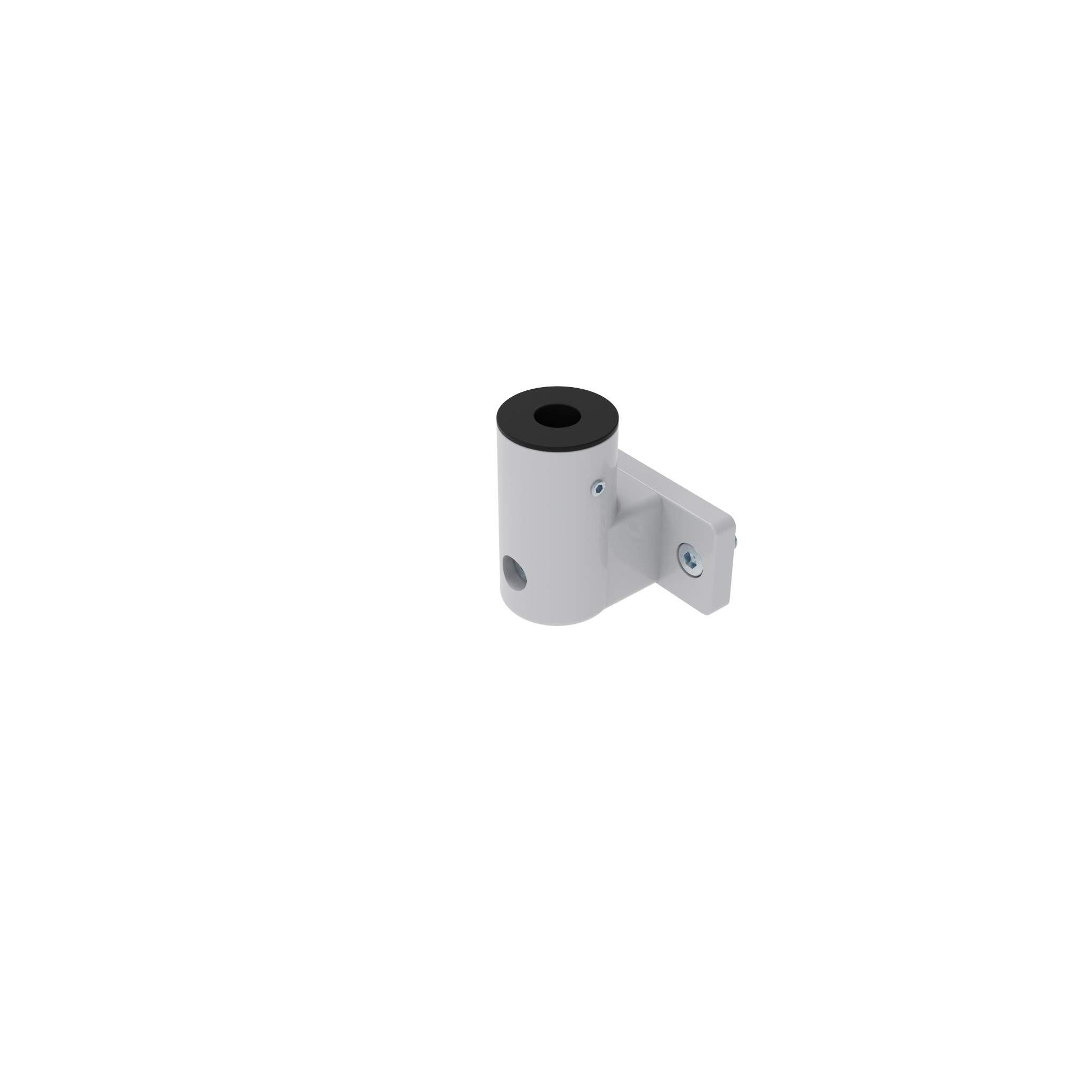

Side Adapter for Magnifying Lamp D160 with Jointed Arm (Set)
H (mm): 77 | T (mm): 64 | ØD (mm): 16
Color:Bearing bush: Black Mounting flange: Alu color Mounting adapter: Alu colorDelivery Countries:WorldwideDescription:for side mounting on profiles, posts, beams and walls; adapter rotatable for horizontal positioning before mounting; friction adjustable on horizontal axisMaterial:Bearing bush: Plastic POM Mounting flange: Aluminum die-cast Mounting adapter: Aluminum die-cast Screws: SteelSet:1 bearing bush 1 mounting flange 1 mounting adapter 1 mounting screw DIN 6912 - M8 x 25 2 mounting screw DIN 6912 - M8 x16 1 threaded pin DIN 914 - M6 x 8Surface:Mounting flange: Lacquered Mounting adapter: Lacquered Screws: Zinc platedTip:Compatible Magnifying Lamp see 063MAL50D16035Zolltarifnummer:76169910990

€0.00*
