Profile Connector 90° B, Slot 10 (Set)

Product information "Profile Connector 90° B, Slot 10 (Set)"

Delivery Countries:
Worldwide

Description:
To connect two aluminum profiles at right angles

Material:
Steel

Set 1:
1 profile connector 90° B
1 threaded bush M12
1 screw M8 x 25

Set 2:
1 profile connector 90° B
1 cutting bush S12
1 screw M8 x 25

Surface:
Zinc plated

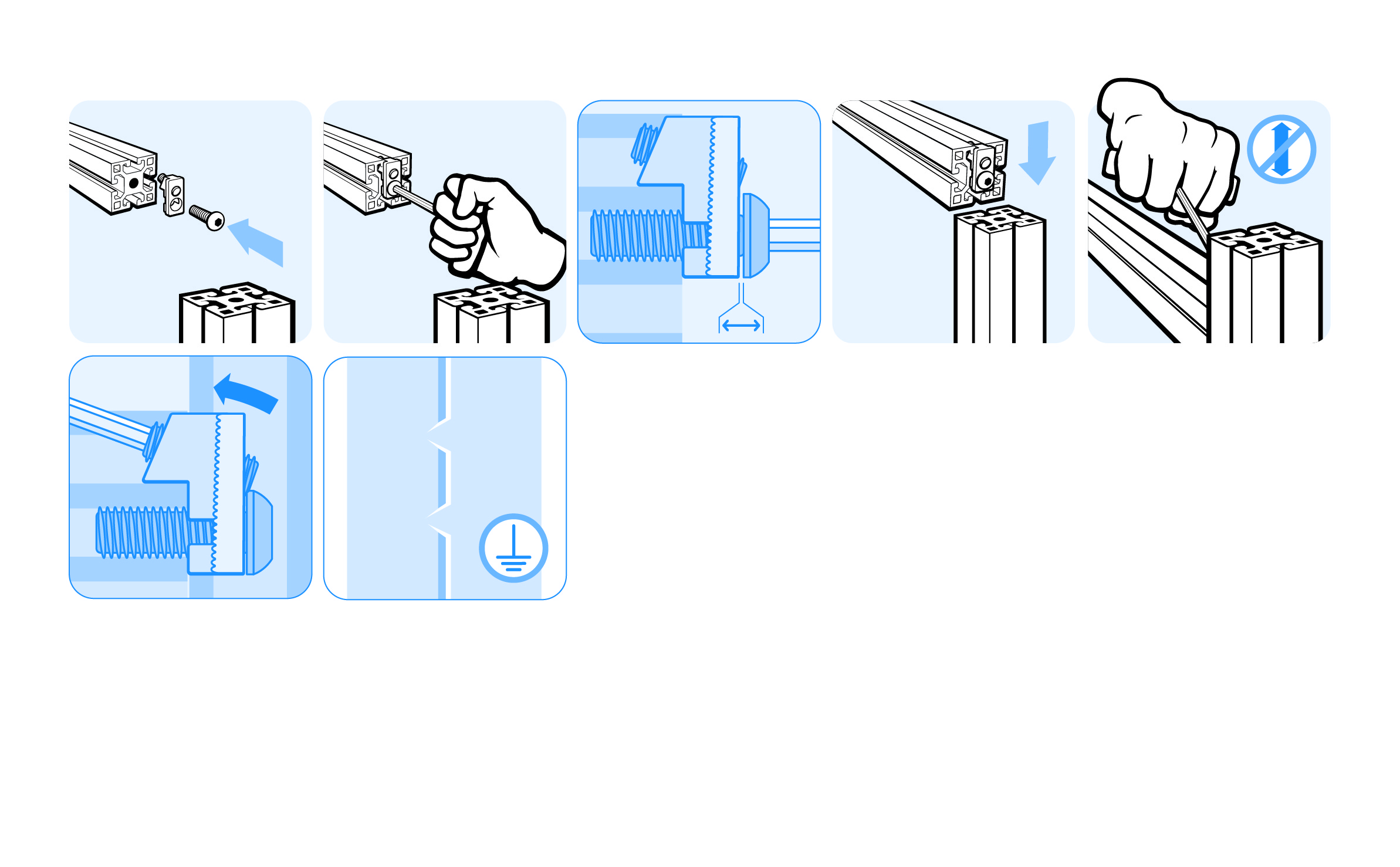

Tip:
Assembly with threaded bush M12: Cut thread M12 in core hole Ø 10.2 mm, apply bush to screw and screw in together
Assembly with cutting bush S12: Turn cutting bush in core hole Ø 10.2 mm, fasten screw in bush
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 73259990
Model: Steel, slot 10
Pack Quantity: 10 sets
Weight (g): 45.8
Zolltarifnummer: 73259990900
pA Number: 146796

Variants

Product ID Profile Slot N (mm) Set
099J10M12 B 10 Set 1
099J10S12 B 10 Set 2
