Profile Slider ZN 40 x 80 Fixed Bearing (Set)
Part #:
093PS0840F
Product information "Profile Slider ZN 40 x 80 Fixed Bearing (Set)"
Color:
Slide shoe: Natural
O-ring: Black
Delivery Countries:
Worldwide
Description:

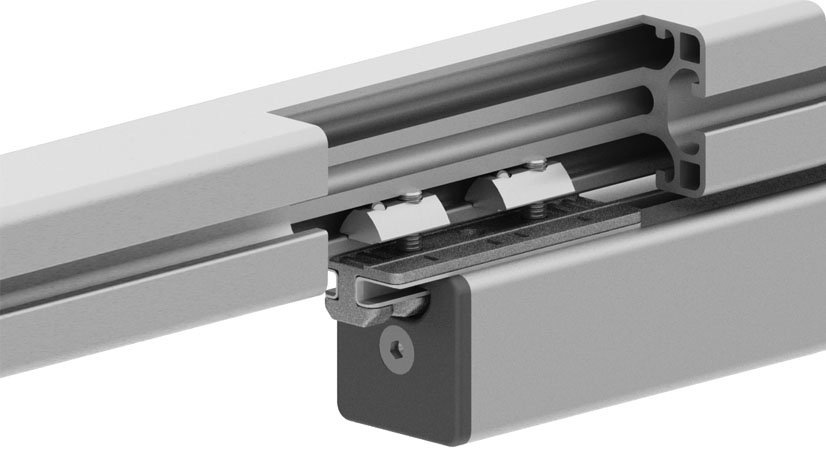

To guide slidingly profiles with slot 8, fixed bearing*
Material:
Sliding carriage: Zinc die-cast
Slide shoe: Plastic POM
Fixation: Steel
O-ring: EPDM

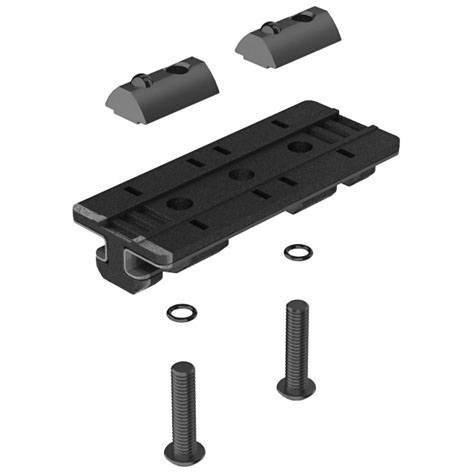

Set:
1 sliding carriage,
2 slide shoes,
2 button head screws DIN EN ISO 7380 (DIN 34805) - M6 x 25,
2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5,
2 T-slot nuts - slot 8 - M6
Surface:
Sliding carriage: Zinc plated
Fixation: Zinc plated
Tip:
* Profile tracks with several profile sliders ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided.; Compatible Profile Slider ZN 40 x 80 loose bearing see 093PS0840L
Slide shoe: Natural
O-ring: Black
Delivery Countries:
Worldwide
Description:
To guide slidingly profiles with slot 8, fixed bearing*
Material:
Sliding carriage: Zinc die-cast
Slide shoe: Plastic POM
Fixation: Steel
O-ring: EPDM
Set:
1 sliding carriage,
2 slide shoes,
2 button head screws DIN EN ISO 7380 (DIN 34805) - M6 x 25,
2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5,
2 T-slot nuts - slot 8 - M6
Surface:
Sliding carriage: Zinc plated
Fixation: Zinc plated
Tip:
* Profile tracks with several profile sliders ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided.; Compatible Profile Slider ZN 40 x 80 loose bearing see 093PS0840L
| (ECLASS 6.0): | 23369290 |
|---|---|
| (ECLASS 7.0): | 23369290 |
| (ECLASS 8.0): | 23369290 |
| (ECLASS 9.0): | 23369290 |
| (ECLASS 10.0): | 23369290 |
| (ECLASS 11.0): | 23360192 |
| (ECLASS 12.0): | 23360192 |
| (ECLASS 13.0): | 23360192 |
| Customs Tariff Number Export: | 73269098 |
| ERP Number: | 127365 |
| Model: | Slot 8 |
| Pack Quantity: | 10 sets |
| Weight (g): | 105.0 |
| Zolltarifnummer: | 79070000900 |
