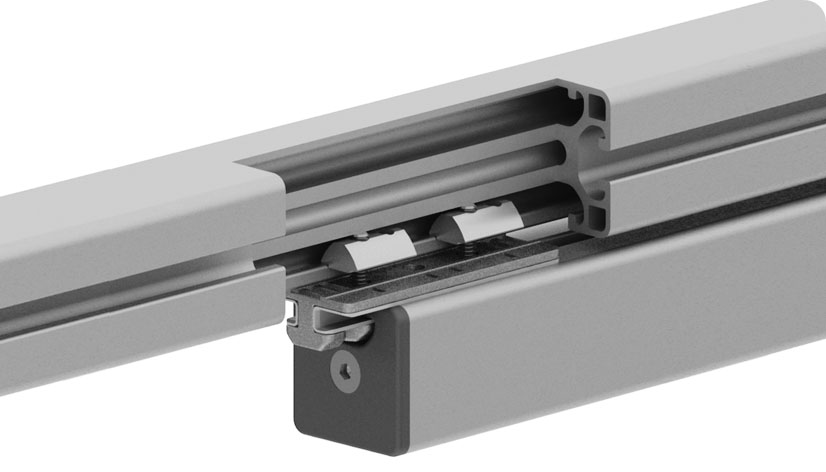

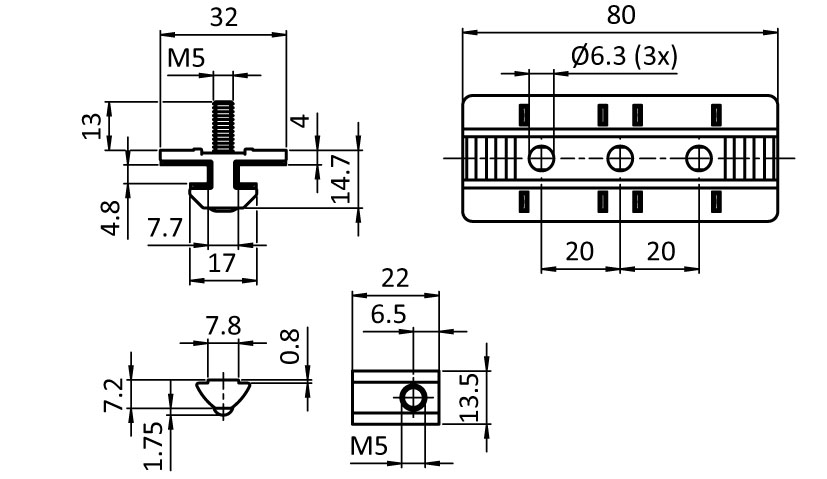

Profile Slider ZN 40 x 80 Loose Bearing (Set)

Product information "Profile Slider ZN 40 x 80 Loose Bearing (Set)"

Color:
Slide shoe: Natural
O-ring: Black

Delivery Countries:
Worldwide

Description:
To guide slidingly profiles with slot 8, loose bearing*

Material:
Sliding carriage: Zinc die-cast
Slide shoe: Plastic POM
Fixation: Steel
O-ring: EPDM

Set:
1 sliding carriage,
2 slide shoes,
2 button head screws ISO 7380 - M5 x 25,
2 O-rings DIN 3771 - 5 x 1.5,
2 T-slot nuts - slot 8 - M5

Surface:
Sliding carriage: Zinc plated
Fixation: Zinc plated

Tip:
* Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided.; Compatible Profile Slider ZN 40 x 80 Fixed Bearing see 093PS0840F

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Model: Slot 8
Pack Quantity: 10 sets
Weight (g): 101.0

Variants

Product ID Version Profile
093PS0840L Loose bearing I
