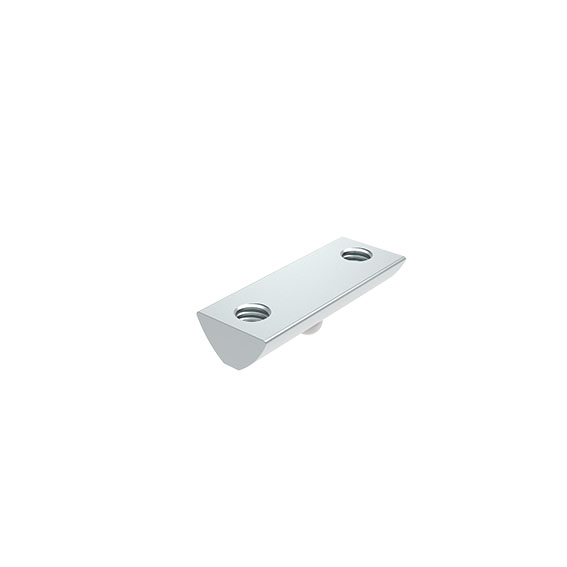

Roll-in Double T-slot Nut for Automatic Connector I, Slot 8

Product information "Roll-in Double T-slot Nut for Automatic Connector I, Slot 8"

Delivery Countries:
Worldwide

Description:
Roll-in double T-slot nut

Material:
Steel

Specials:
Different lengths with multiple threads in different sizes available on request

Surface:
Zinc plated

Zolltarifnummer:
73181900900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Slot 8, steel
Pack Quantity: 100 pieces
Weight (g): 16.0

Variants

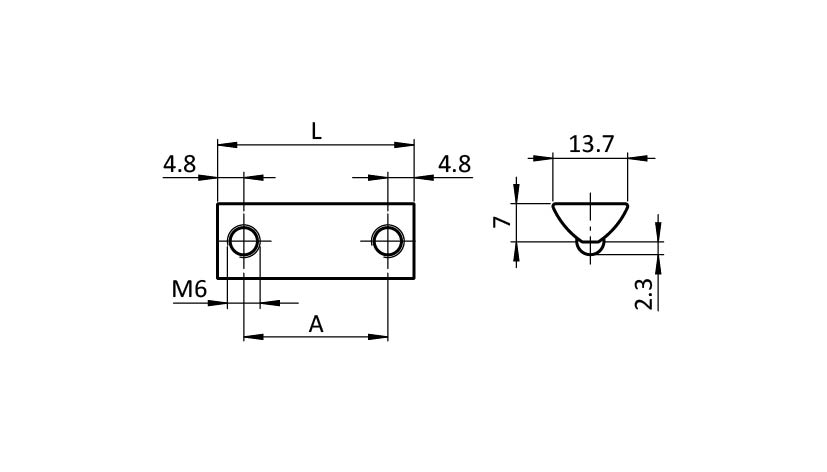

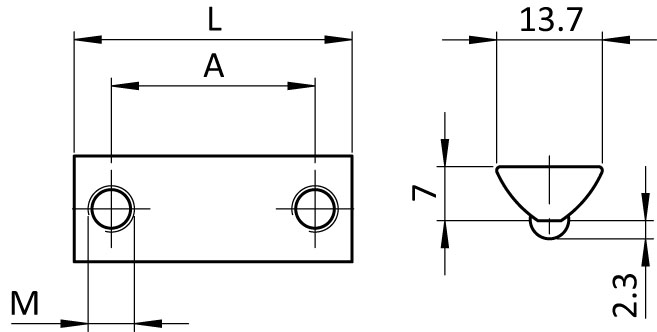

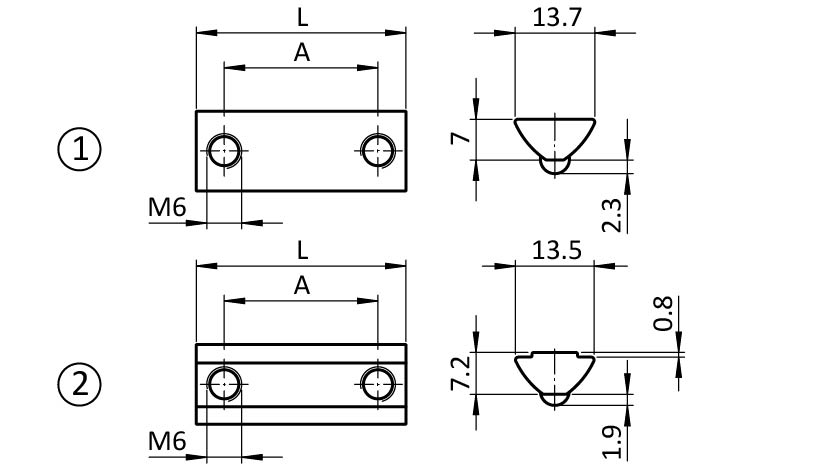

Product ID A (mm) Profile M L (mm)
096006D36S01 26.4 I M6 36.0
096006D76S01 66.4 I M6 76.0
