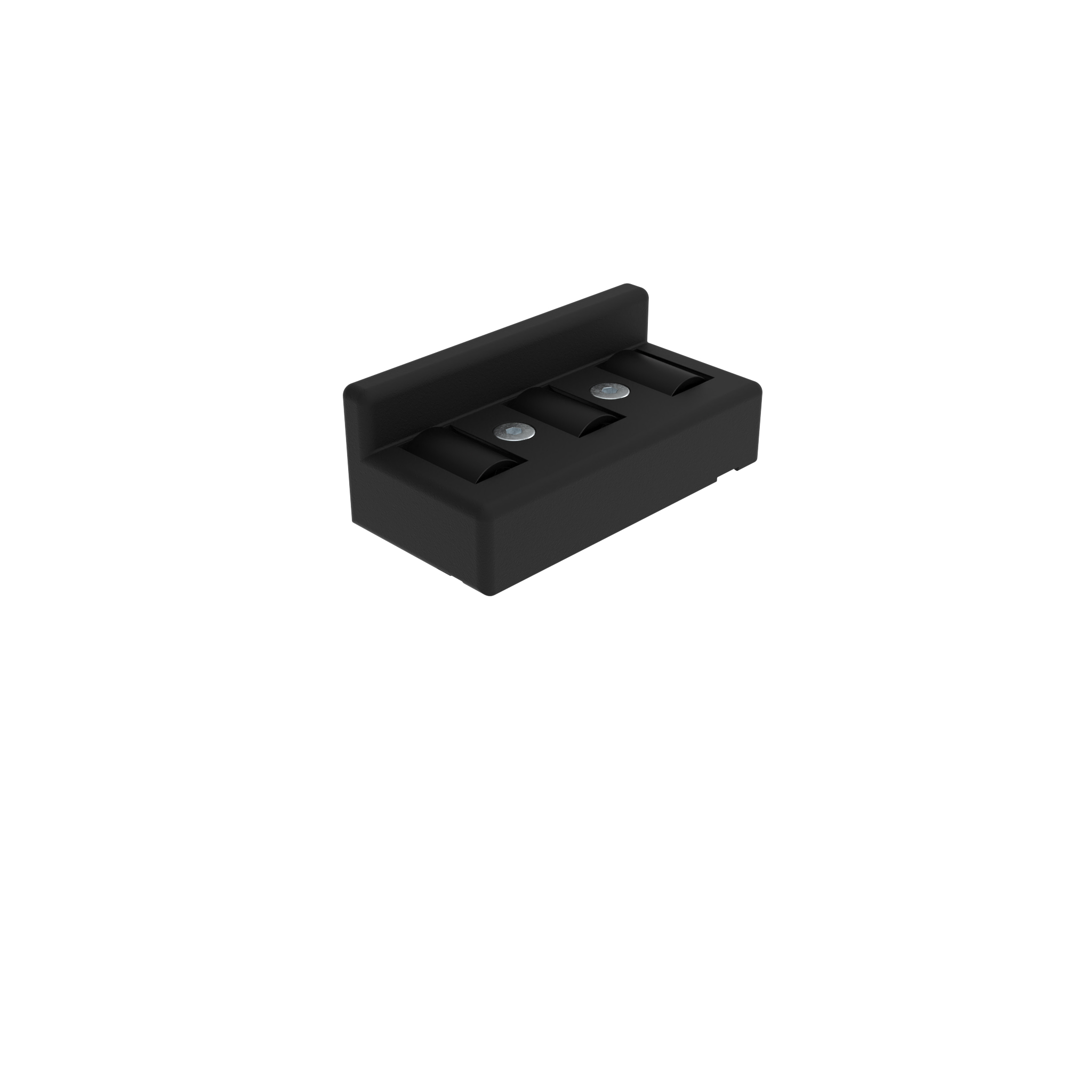

Roller Element, Screw-on Version

Product information "Roller Element, Screw-on Version"

Assembly Set 1:
2 hammer nuts slot 8 - M5

Assembly Set 2:
2 hammer nuts slot 10 - M5

Color:
Black

Delivery Countries:
Worldwide

Description:
For manufacturing roller conveyors in any width and length, incl. 2 Screws M5 x 25

Material:
Casing: Plastic PA, glass ball reinforced
Rollers: Plastic POM
Assembly set: Steel

Surface:
Assembly set: Zinc plated

Tip:
* ESD delivery of electrostatical discharging version without clamp hammer, to fasten with ESD electrostatical discharging hammer nuts or T-slot nuts

Zolltarifnummer:
39269097900
(ECLASS 6.0): 36129290
(ECLASS 7.0): 36129290
(ECLASS 8.0): 36129290
(ECLASS 9.0): 36129290
(ECLASS 10.0): 36129290
(ECLASS 11.0): 36123690
(ECLASS 12.0): 36123690
(ECLASS 13.0): 36123690
Fastening: With clamp hammer: To be fastened by screw-in or knock-in 2 screws M5 x 25 Without clamp hammer: Using 2 screws M5 x 25 and T-slot nuts or hammer nuts
Model: Without slot, slot 8, slot 10
Pack Quantity: 10 pieces / 10 set
Weight (g): 69.0

Variants

Product ID ESD Slot N (mm) Profile Fig. Version
09309302 8 / 10 Without lateral guide
09309302S01 ESD electrostatical discharging 8 / 10 Without lateral guide
09309302S02 ESD electrostatical discharging 10 B Without lateral guide
09309302S03 ESD electrostatical discharging 8 I Without lateral guide
09309304 8 / 10 With lateral guide
09309304S01 ESD electrostatical discharging 8 / 10 With lateral guide
09309304S03 ESD electrostatical discharging 10 B With lateral guide
09309304S04 ESD electrostatical discharging 8 I With lateral guide
