Roller Mounting Blocks
Regular price:
€0.00
Part #:
093200
Pack Quantity:
100 pieces
Description:

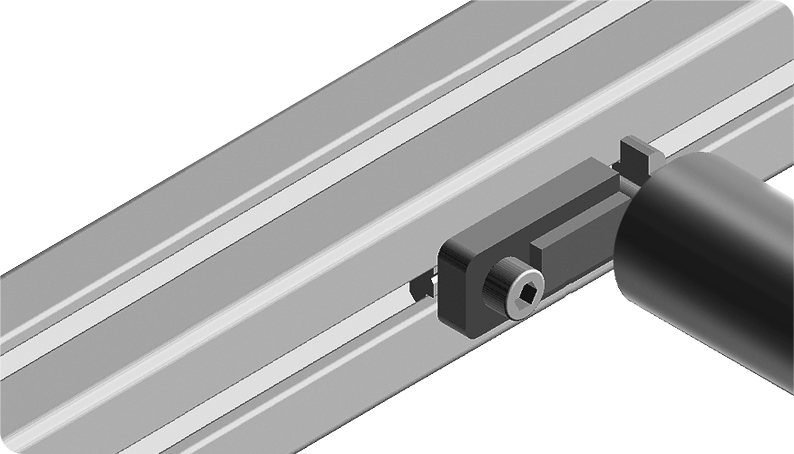

To mount track rollers on aluminum profiles; individual rollers can be replaced without dismantling the entire system; can be used for slot 8 and slot 10 by simply turning it
To mount track rollers on aluminum profiles; individual rollers can be replaced without dismantling the entire system; can be used for slot 8 and slot 10 by simply turning it
Material:
Standard version: Plastic PA, glass fiber reinforced
ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
Surface:
Assembly set: Zinc plated
Color:
Roller Mounting Block: Black
Assembly Set 1:
1 screw DIN 7984 - M6 x 12,
1 hammer nut M6 - slot 8
Assembly Set 2:
1 screw DIN 7984 - M6 x 16,
1 hammer nut M6 - slot 10
Specials:
Other colors on request
Delivery Countries:
Worldwide
Standard version: Plastic PA, glass fiber reinforced
ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
Surface:
Assembly set: Zinc plated
Color:
Roller Mounting Block: Black
Assembly Set 1:
1 screw DIN 7984 - M6 x 12,
1 hammer nut M6 - slot 8
Assembly Set 2:
1 screw DIN 7984 - M6 x 16,
1 hammer nut M6 - slot 10
Specials:
Other colors on request
Delivery Countries:
Worldwide
| Pack Quantity: | 100 pieces |
|---|---|
| Model: | Plastic PA, profile 30 and up |
| Weight (g): | 8.2 |
| ERP Number: | 100446 |
Classifications
- ECLASS 6.0
- 36129290
- ECLASS 7.0
- 36129290
- ECLASS 8.0
- 36129290
- ECLASS 9.0
- 36129290
- ECLASS 10.0
- 36129290
- ECLASS 11.0
- 36123692
- ECLASS 12.0
- 36123692
- ECLASS 13.0
- 36123692
- Zolltarifnummer
- 39269097900
- Customs Tariff Number Export
- 39269097
Certificates
