Roller Mounting Blocks

Product information "Roller Mounting Blocks"

Assembly Set 1:
1 screw DIN 7984 - M6 x 12,
1 hammer nut M6 - slot 8

Assembly Set 2:
1 screw DIN 7984 - M6 x 16,
1 hammer nut M6 - slot 10

Color:
Roller Mounting Block: Black

Delivery Countries:
Worldwide

Description:
To mount track rollers on aluminum profiles; individual rollers can be replaced without dismantling the entire system; can be used for slot 8 and slot 10 by simply turning it

Material:
Standard version: Plastic PA, glass fiber reinforced
ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced

Specials:
Other colors on request

Surface:
Assembly set: Zinc plated

Zolltarifnummer:
39269097900
(ECLASS 6.0): 36129290
(ECLASS 7.0): 36129290
(ECLASS 8.0): 36129290
(ECLASS 9.0): 36129290
(ECLASS 10.0): 36129290
(ECLASS 11.0): 36123692
(ECLASS 12.0): 36123692
(ECLASS 13.0): 36123692
Model: Plastic PA, profile 30 and up
Pack Quantity: 100 pieces / 100 set
Pack Quantity (1): 10
Weight (g): 22.0

Variants

Product ID Slot N (mm) Version ESD
093200 8 / 10
093200S01 8 / 10 ESD
093200S03 8 With assembly set 1

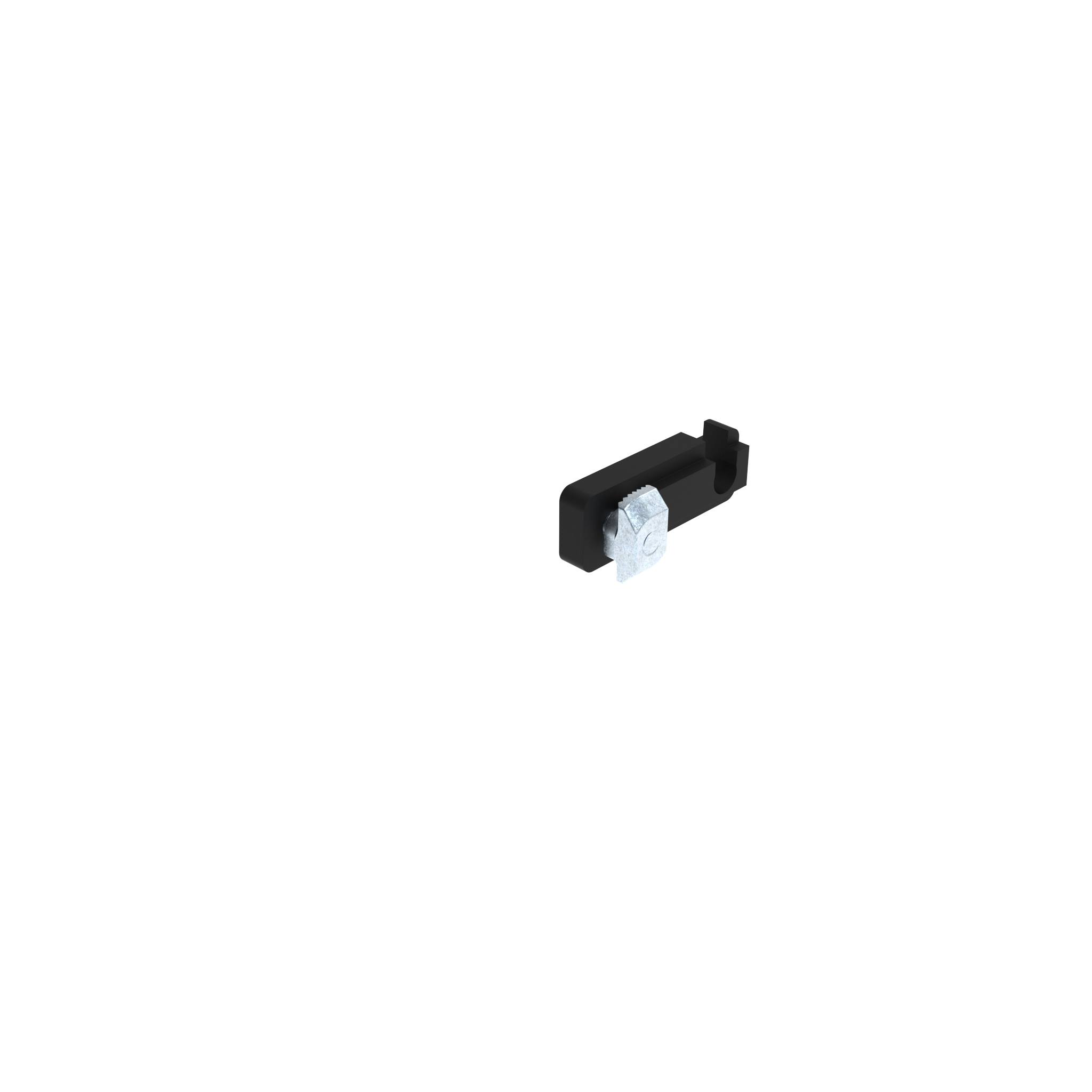

093200S04 10 With assembly set 2
