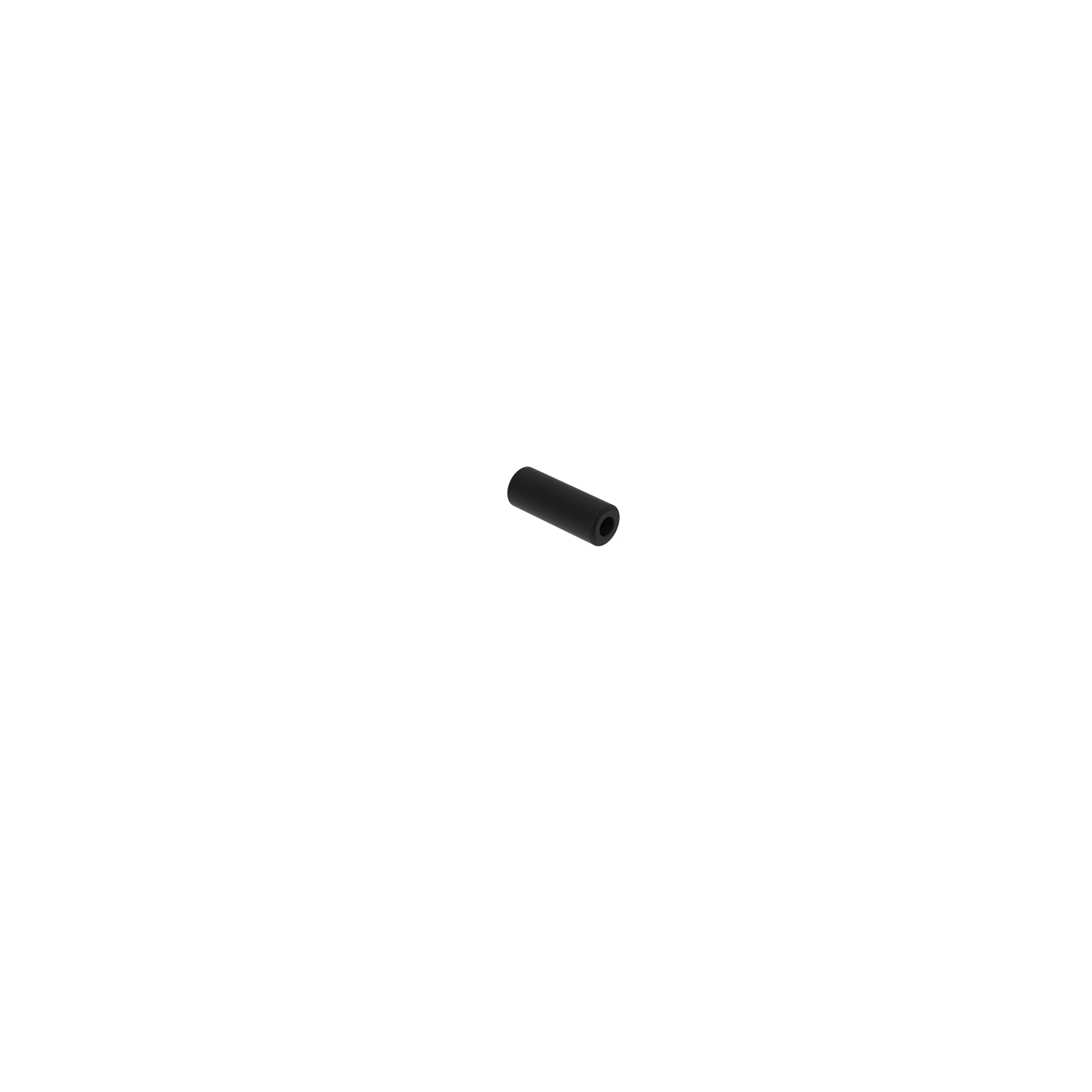

Roller R9 for Roller Units

Product information "Roller R9 for Roller Units"

Color:
Black, yellow, red, green, gray

Delivery Countries:
Worldwide

Description:

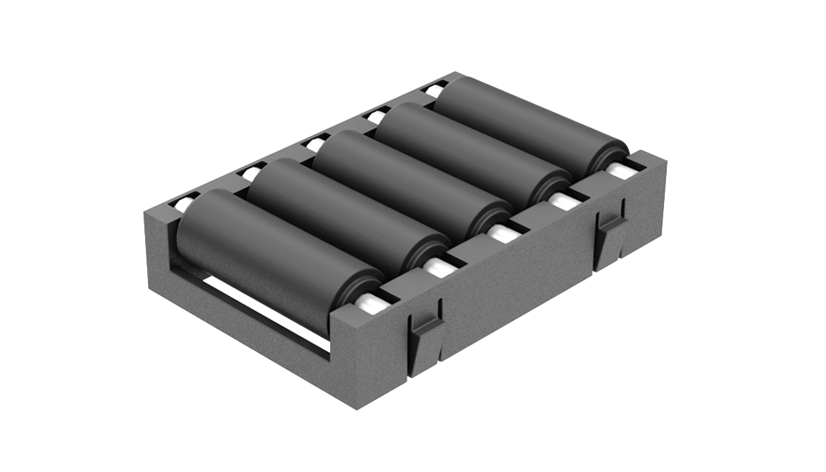

A compact roller for roller tracks AL, very small center distance and maximum number of axles for minimum vibrations and reduced point load on the goods, quickly replaceable

Material:
Standard version:
Plastic PA, glass ball reinforced
ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced

Specials:
Other materials, other colors on request

Tip:

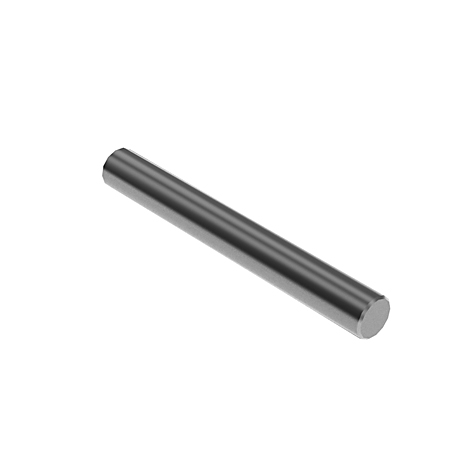

Compatible Axle see 062AXM;

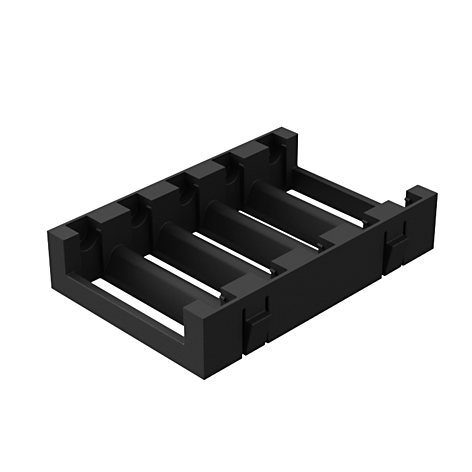

Compatible Cage see 062ACR991.50;

Zolltarifnummer:
39269097900
(ECLASS 6.0): 36129104
(ECLASS 7.0): 36129104
(ECLASS 8.0): 36129104
(ECLASS 9.0): 36129104
(ECLASS 10.0): 36129104
(ECLASS 11.0): 36120491
(ECLASS 12.0): 36120491
(ECLASS 13.0): 36120491
Model: For roller tracks AL
Pack Quantity: 100 pieces
Weight (g): 1.0

Variants

Product ID ESD Color
062RR911 Yellow ≈ RAL 1003
062RR931 Red ≈ RAL 3020
062RR961 Green ≈ RAL 6032
062RR974 Gray ≈ RAL 7042
062RR991 Black
062RR991ESD ESD Black
