Side Protection Profile 40, Slot 8

Description:

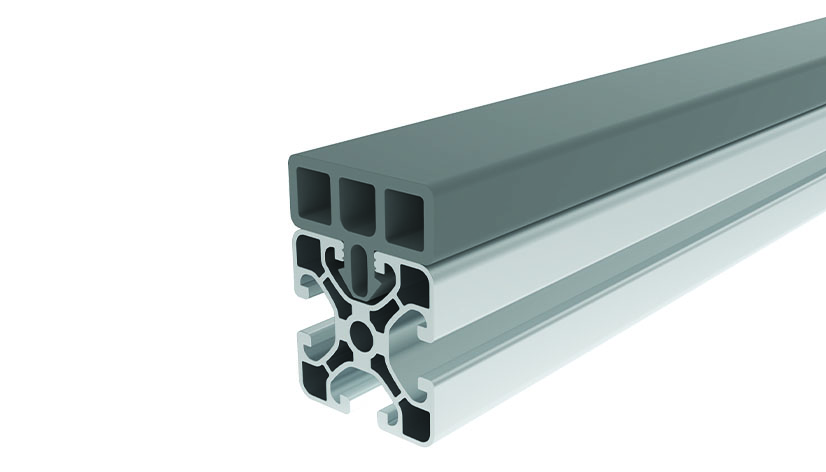

To prevent damages and injuries, impact protection by hollow chamber profile on aluminum profiles

Material:
Plastic TPE, ≈ 70 Shore A

Color:
Black, gray

Tip:
Compatible Cover Cap for Side and Corner Protection Profile 40 see 091385S01
Compatible Corner Protection Profile 40, slot 8 see 092325S01

Tip 2:
Please note: You are ordering in meters!

Delivery Countries:
Worldwide

Pack Quantity:	20 pieces at 2 meters (40 meters)
Model:	Plastic TPE
Weight (g/m):	590.5
ERP Number:	161705

Variants

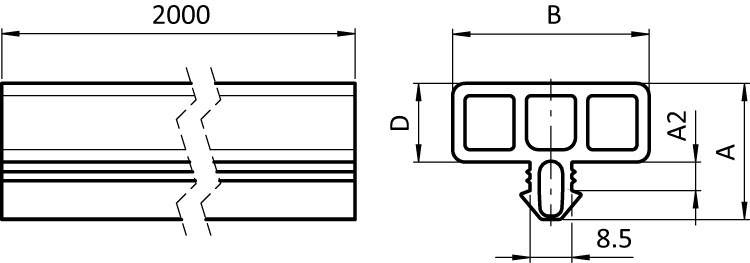

Part #	D (mm)	Profile	A (mm)	B (mm)	Fig.	Color	Slot N (mm)	A2 (Profile) (mm)	CAD
092324	16.0	I	28.0	40.0	②	Gray ≈ RAL 7042	8	5.7 (4.5)
092324S01	16.0	I	28.0	40.0	①	Black	8	5.7 (4.5)

Classifications

ECLASS 6.0: 23360192
ECLASS 7.0: 23360192
ECLASS 8.0: 23360192
ECLASS 9.0: 23360192
ECLASS 10.0: 23360192
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 40082900900
Customs Tariff Number Export: 40082900

Certificates

Tags

Profile Type	Profile Type I
Slot Size	Slot size 8
Profile Form	T-slot Profiles
