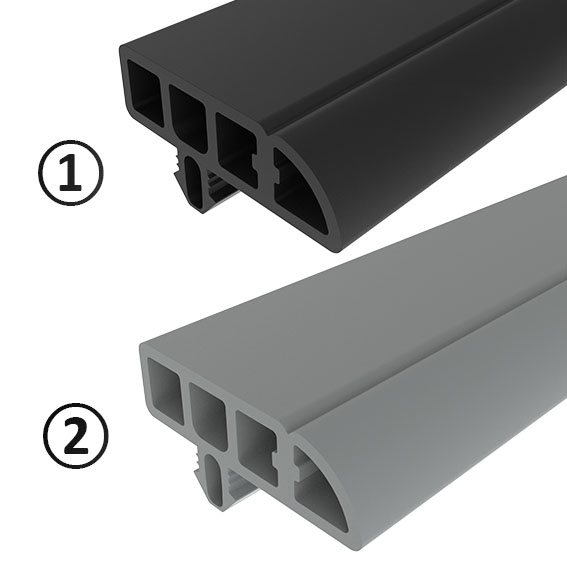

Corner Protection Profile 40, Slot 8

Product information "Corner Protection Profile 40, Slot 8"

Color:
Black, gray

Delivery Countries:
Worldwide

Description:
To prevent damages and injuries - also on the outer edge, impact protection by hollow chamber profile on aluminum profiles

Material:
Plastic TPE, ≈ 70 Shore A

Tip:
Compatible Cover Cap for Side and Corner Protection Profile 40 see 091385 and 091386
Compatible Side Protection Profile 40, Slot 8 see 092324S01

Tip 2:
Please note: You are ordering in meters!
Pack Quantity: 40 meters (20 pieces at 2 m)
Model: Plastic TPE
Weight (g/m): 453.0
ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 40082900900
Customs Tariff Number Export: 40082900
ERP Number: 161452

Variants

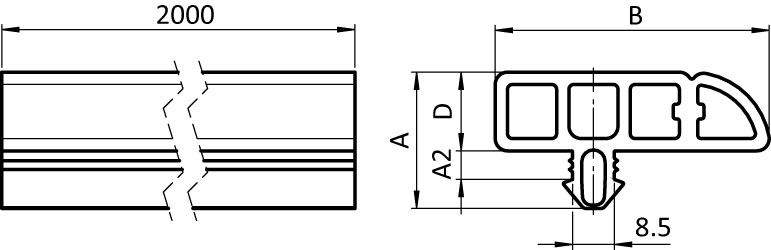

Part # D (mm) Profile A (mm) B (mm) Fig. Color Slot N (mm) A2 (Profile) (mm)
092325 16.0 I 28.0 56.0 Gray ≈ RAL 7042 8 5.7 (4.5)
092325S01 16.0 I 28.0 56.0 Black 8 5.7 (4.5)
