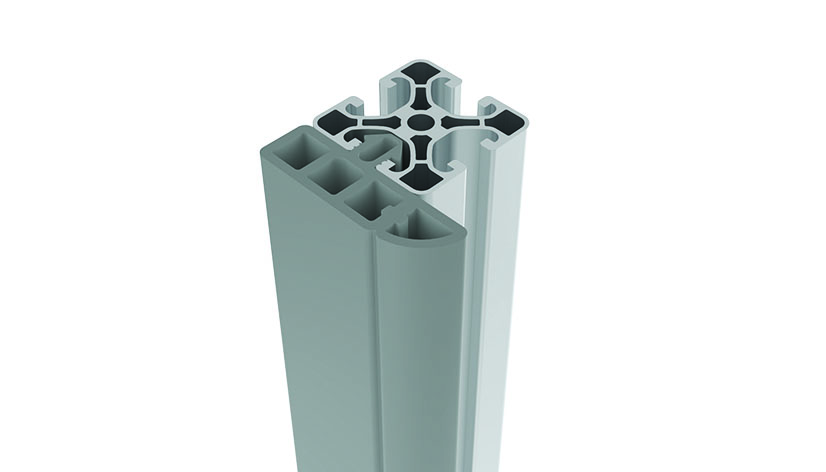

Corner Protection Profile 40, Slot 8

Description:
To prevent damages and injuries - also on the outer edge, impact protection by hollow chamber profile on aluminum profiles

Material:
Plastic TPE, ≈ 70 Shore A

Color:
Black, gray

Tip:
Compatible Cover Cap for Side and Corner Protection Profile 40 see 091385 and 091386
Compatible Side Protection Profile 40, Slot 8 see 092324S01

Tip 2:
Please note: You are ordering in meters!

Delivery Countries:
Worldwide

Pack Quantity:	20 pieces at 2 meters (40 meters)
Model:	Plastic TPE
Weight (g/m):	453.0
ERP Number:	162788

Variants

Part #	D (mm)	Profile	A (mm)	B (mm)	Fig.	Color	Slot N (mm)	A2 (Profile) (mm)	CAD
092325	16.0	I	28.0	56.0	②	Gray ≈ RAL 7042	8	5.7 (4.5)
092325S01	16.0	I	28.0	56.0	①	Black	8	5.7 (4.5)

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 40082900900
Customs Tariff Number Export: 40082900

Certificates

Tags

Profile Type	Profile Type I
Slot Size	Slot size 8
Profile Form	T-slot Profiles

Matching accessories

Cover Cap for Side and Corner Protection Profile 40

D (mm): 16.0 A (mm): 8.0 B (mm): 40.0 Fig.: ② Color: Gray ≈ RAL 7042

Description:To cover the end of the side protection profile 40, slot 8Material:Plastic TPE, ≈ 70 Shore AColor:Black, grayTip:Compatible Side Protection Profile 40, Slot 8 see 092324Tip 2:Other colors on requestDelivery Countries:Worldwide

€0.00

Cover Cap for Corner Protection Profile 40

D (mm): 15.0 A (mm): 8.0 Fig.: ② Color: Gray ≈ RAL 7042

Description:To cover the end of the corner protection profile 40, slot 8Material:Plastic TPE, ≈ 70 Shore AColor:Black, grayTip:Compatible Corner Protection Profile 40, Slot 8 see 092325Tip 2:Other colors on requestDelivery Countries:Worldwide

€0.00

Side Protection Profile 40, Slot 8

D (mm): 16.0 Profile: I A (mm): 28.0 B (mm): 40.0 Fig.: ① Color: Black Slot N (mm): 8 A2 (Profile) (mm): 5.7 (4.5)

Description:To prevent damages and injuries, impact protection by hollow chamber profile on aluminum profilesMaterial:Plastic TPE, ≈ 70 Shore AColor:Black, grayTip:Compatible Cover Cap for Side and Corner Protection Profile 40 see 091385S01 Compatible Corner Protection Profile 40, slot 8 see 092325S01Tip 2:Please note: You are ordering in meters!Delivery Countries:Worldwide

€0.00
