Sign Holder AL (Set)
€0.00
Durable mounting of signs
Sign holder: Aluminum
Sign foil: Plastic PET
Cover caps: Plastic PA, glass ball reinforced
Screws: Steel
Surface:
Sign holder: Anodized
Screws: Zinc plated
Color:
Cover Caps: Gray
Set:
1 Sign Holder
1 Sign foil
2 Cover Caps
8 Screws 3.9 x 16
Tip:
Compatible Direct Connector I, see 099DC084040N08 et sq.,
Compatible T-connector Plate see 093VAD28V

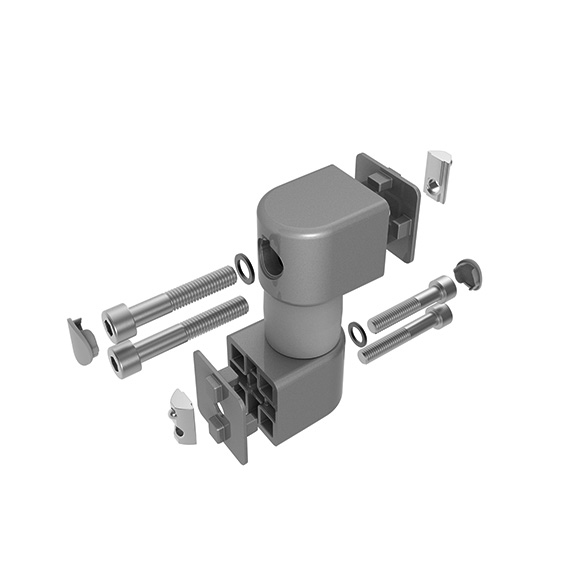

Compatible Friction Joints I40H see 061FGZ40LN08

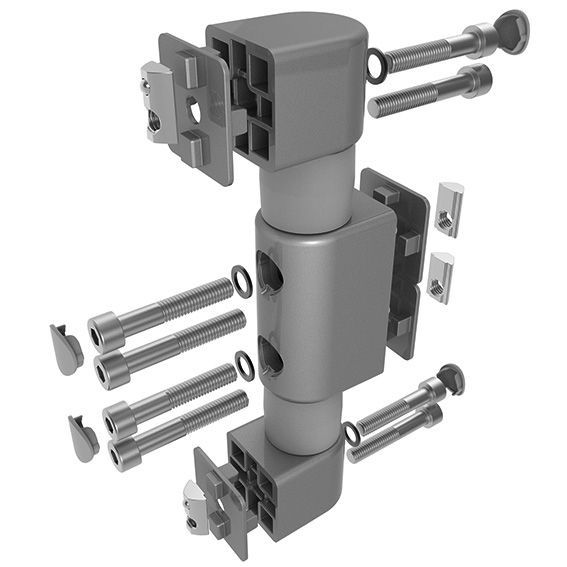

Compatible Friction Joints I80H see 061FGZ80HN08
Delivery Countries:
Worldwide
| Pack Quantity: | 1 piece |
|---|---|
| Model: | Aluminum |
| Weight (g): | 1786.81 |
| ERP Number: | 149604 |
Product Portraits
Classifications
- ECLASS 6.0
- 24292205
- ECLASS 7.0
- 24292205
- ECLASS 8.0
- 24292205
- ECLASS 9.0
- 24292205
- ECLASS 10.0
- 24292205
- ECLASS 11.0
- 24292205
- ECLASS 12.0
- 24292205
- ECLASS 13.0
- 24292205
- Zolltarifnummer
- 76169990990
- Customs Tariff Number Export
- 76169990
Certificates
Matching accessories
Description:To cross or parallely connect two aluminum profiles; assembly without machiningMaterial:SteelSurface:Zinc platedDelivery Countries:Worldwide
Description:To connect a tubular frame profile with Ø 28 mm outer diameter with an aluminum profile at right angles; screw connetion to the core hole of the Ø 28 mm profile or to the threaded sleeve for D28 M8 for Ø 28 mm tubular profilesMaterial:SteelSurface:Zinc platedFastening:With countersunk screws 1x M8 and 2x M6Tip:Compatible Threaded Sleeve D28 M8 see 099RV28AS02Delivery Countries:Worldwide
Description:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSurface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedColor:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 8 - M8Delivery Countries:Worldwide
Description:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSurface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedColor:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorSet:1 friction joint 4 cover caps 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 4 washers 8-FSt 4 centering plates 4 T-slot nuts - slot 8 - M8Delivery Countries:Worldwide
