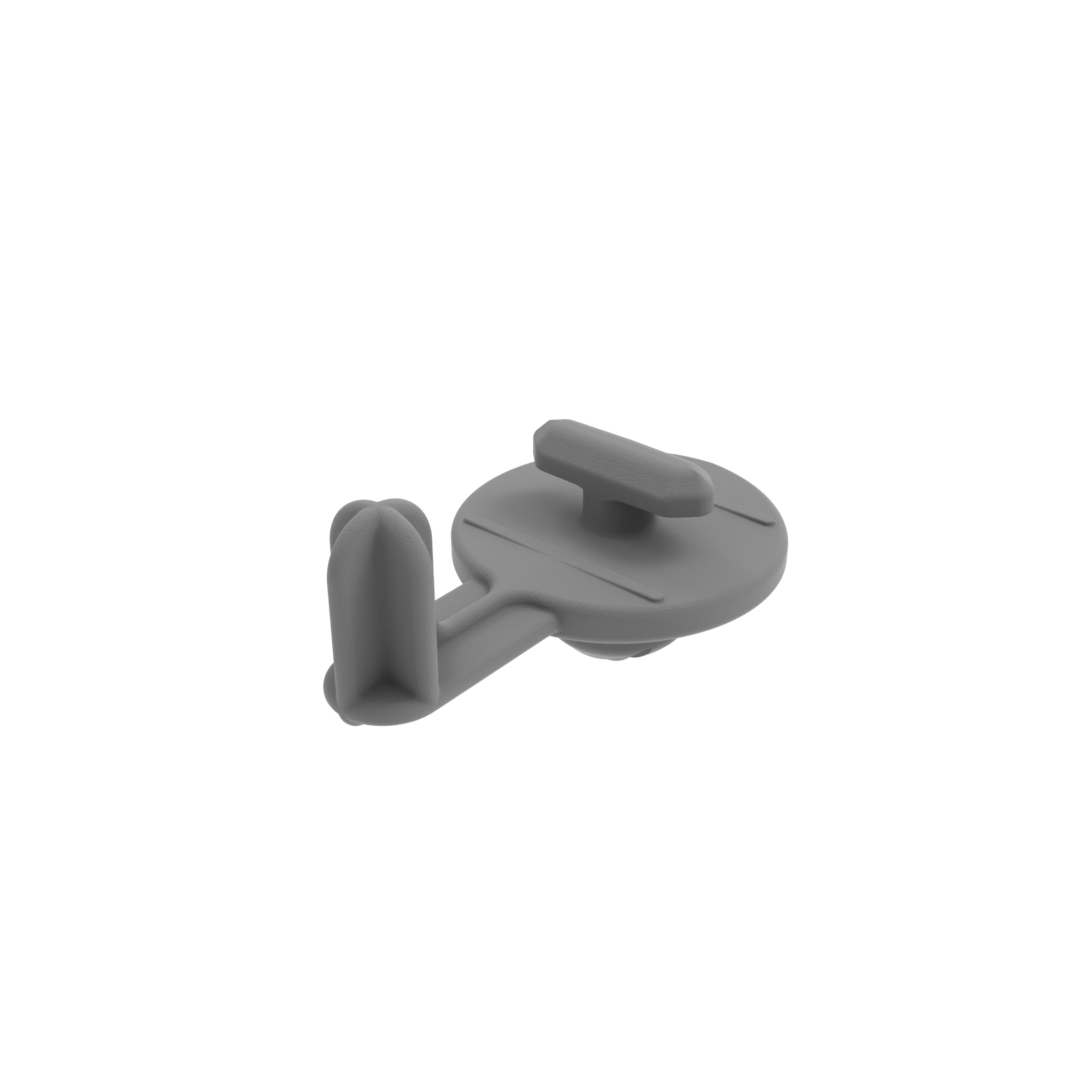

Slot-on-Slot Connector SOS I8 360°

Product information "Slot-on-Slot Connector SOS I8 360°"

Color:
Gray

Delivery Countries:
Worldwide

Description:

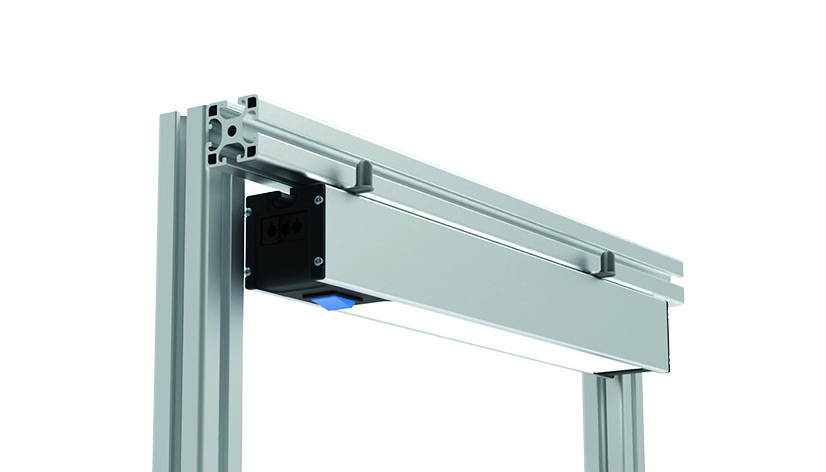

To cross or parallel connect two aluminum profiles at various angles; fast, tool-free assembly without machining

Material:
Plastic PA, glass fiber reinforced

Specials:
Customized hammer, other colors on request

Tip:
Compatible Power Strip see 6SBEU04I.264
Compatible LED Lamp see 6SL0040I.953
Compatible Shelf Board AL see 061AS300N08.788

Tip 2:

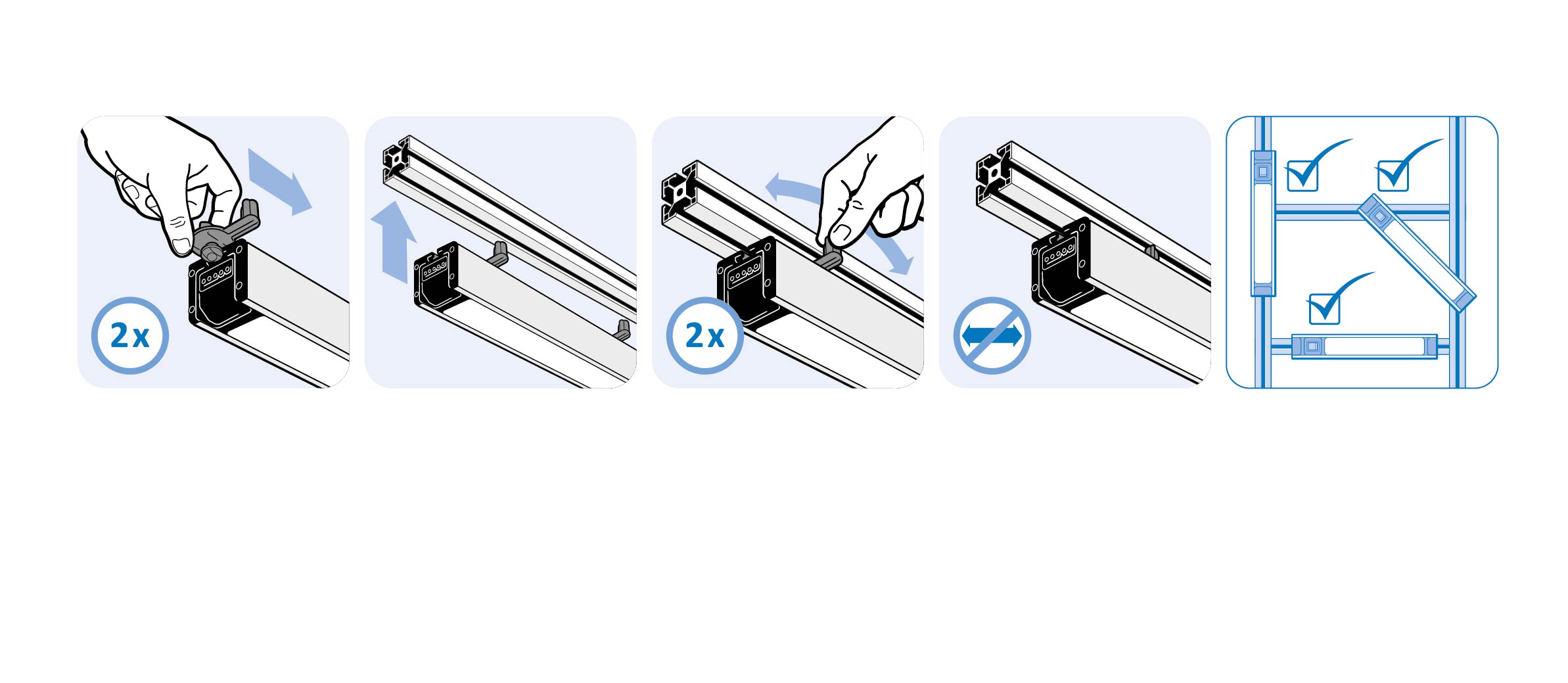

For one connection at least two Slot-on-Slot connectors SOS 360° are required

Zolltarifnummer:
39269097900
Model: Plastic PA
Pack Quantity: 2 pieces
Weight (g): 9.9

Variants

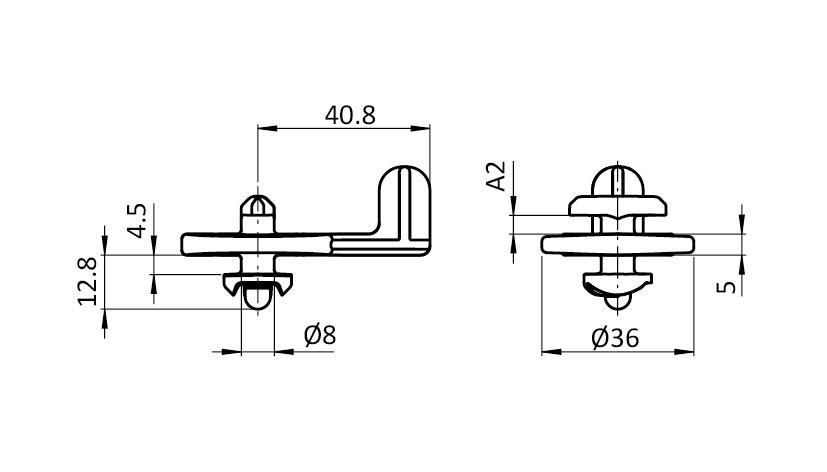

Product ID Color Version A2 (Profile) (mm)
099DC08V30N08 Gray ≈ RAL 7004 I8 / B8 2.05 (2.2)
099DC08V40N08 Gray ≈ RAL 7042 I8 / I8 4.4 (4.5)
099DC08V45N08 Gray ≈ RAL 7012 I8 / M8 4.4 (4.5)
099DC08V45N10 Gray ≈ RAL 7004 I8 / B10 5.9 (6.0)
