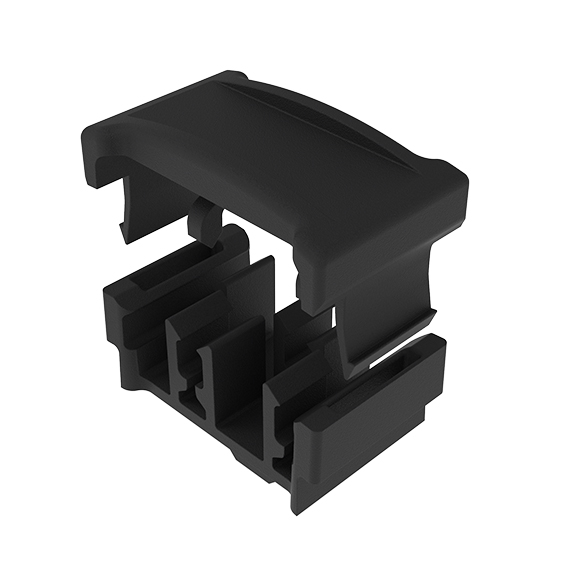

Snap-Cable-Binding with Hammer

Product information "Snap-Cable-Binding with Hammer"

Color:
Black

Delivery Countries:
Worldwide

Description:

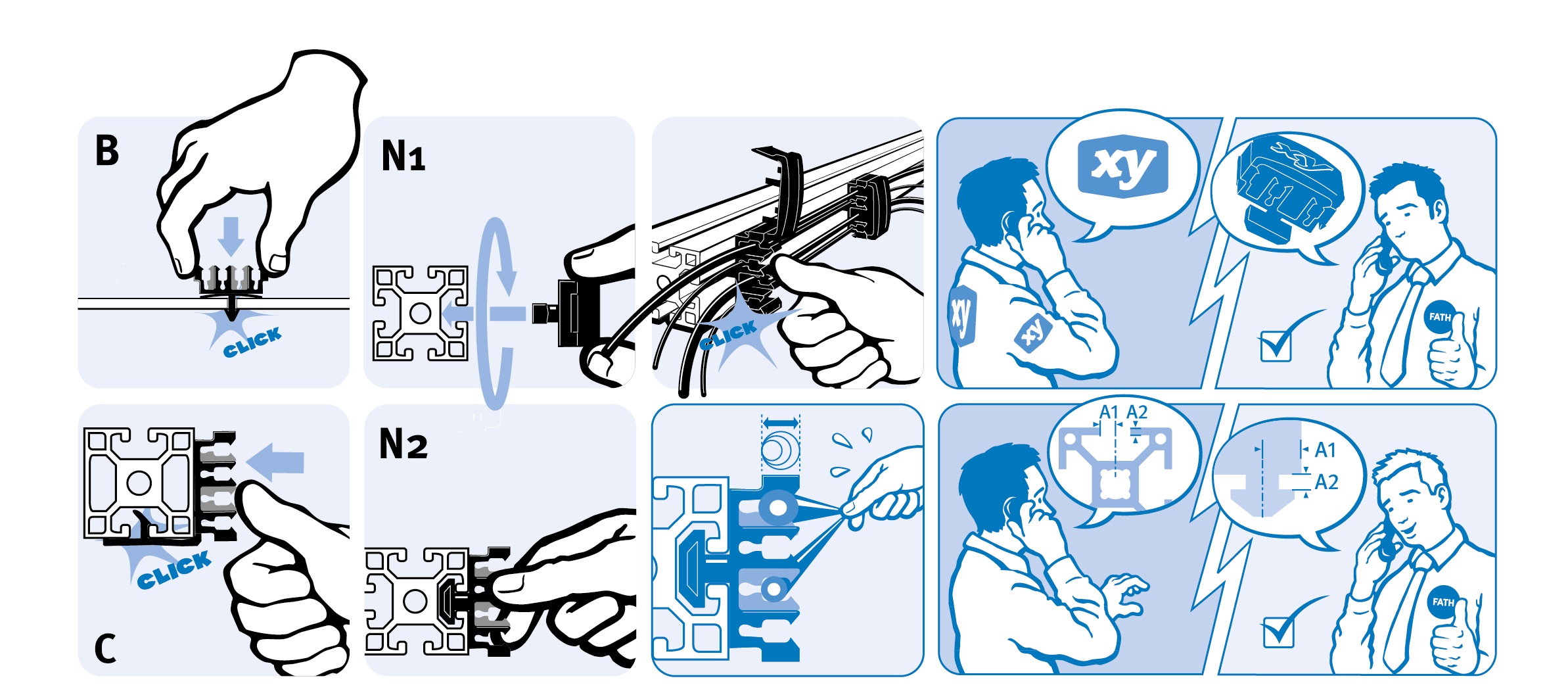

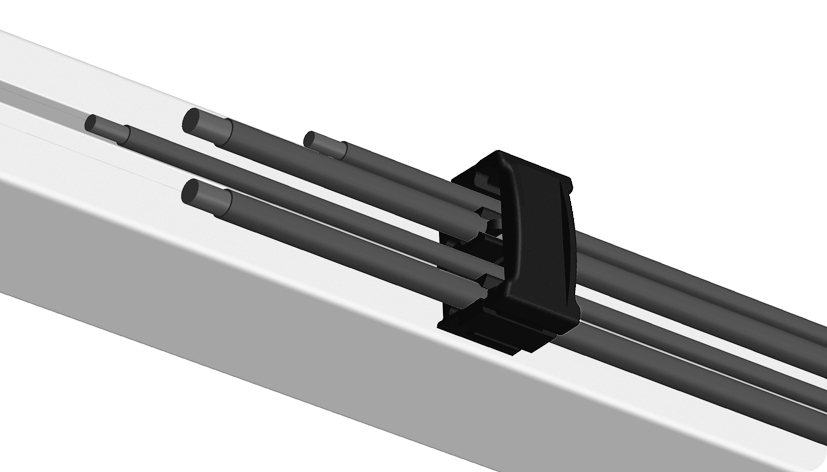

To attach of cables securely and quick and without cable ties, with strain relief; can be mounted into the slot by a quarter turn or by snapping in

Material:
Plastic PA

Specials:
Customized hammer, other sizes, other colors, material additives and with individual logo on request
Pack Quantity: 100 pieces
Model: Ø 5.0 - 7.6 mm outside diameter
Weight (g): 11.5, 11.7
ECLASS 6.0: 27140790
ECLASS 7.0: 27140790
ECLASS 8.0: 27140790
ECLASS 9.0: 27140790
ECLASS 10.0: 27140790
ECLASS 11.0: 27140790
ECLASS 12.0: 27140790
ECLASS 13.0: 27140790
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097
ERP Number: 122748

Variants

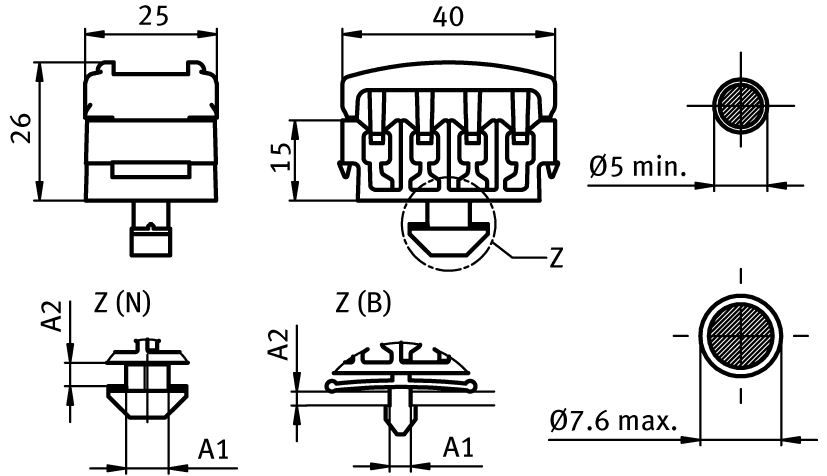

Part # Version Profile Slot N (mm) A2 (Profile) (mm) A1 (mm) Hole
093600AB06 (B) Snap-hammer for hole incl. cover cap - - 0.7 - 3.0 - Ø 6.0 +0.3
093600AB08 (B) Snap-hammer for hole incl. cover cap - - 0.7 - 3.0 - Ø 8.0 +0.3
093600B06 (B) Snap-hammer for hole - - 0.7 - 3.0 - Ø 6.0 +0.3
093600B08 (B) Snap-hammer for hole - - 0.7 - 3.0 - Ø 8.0 +0.3
093610AN10 (N) Hammer for slot incl. cover cap B 10 5.7 (6.0) 10.0 -
093610N10 (N) Hammer for slot B 10 5.7 (6.0) 10.0 -
093611AN08 (N) Hammer for slot incl. cover cap I 8 4.4 (4.5) 8.0 -
093611N08 (N) Hammer for slot I 8 4.4 (4.5) 8.0 -
