Snap-Cable-Binding with Hammer

Product information "Snap-Cable-Binding with Hammer"

Color:
Black

Delivery Countries:
Worldwide

Description:

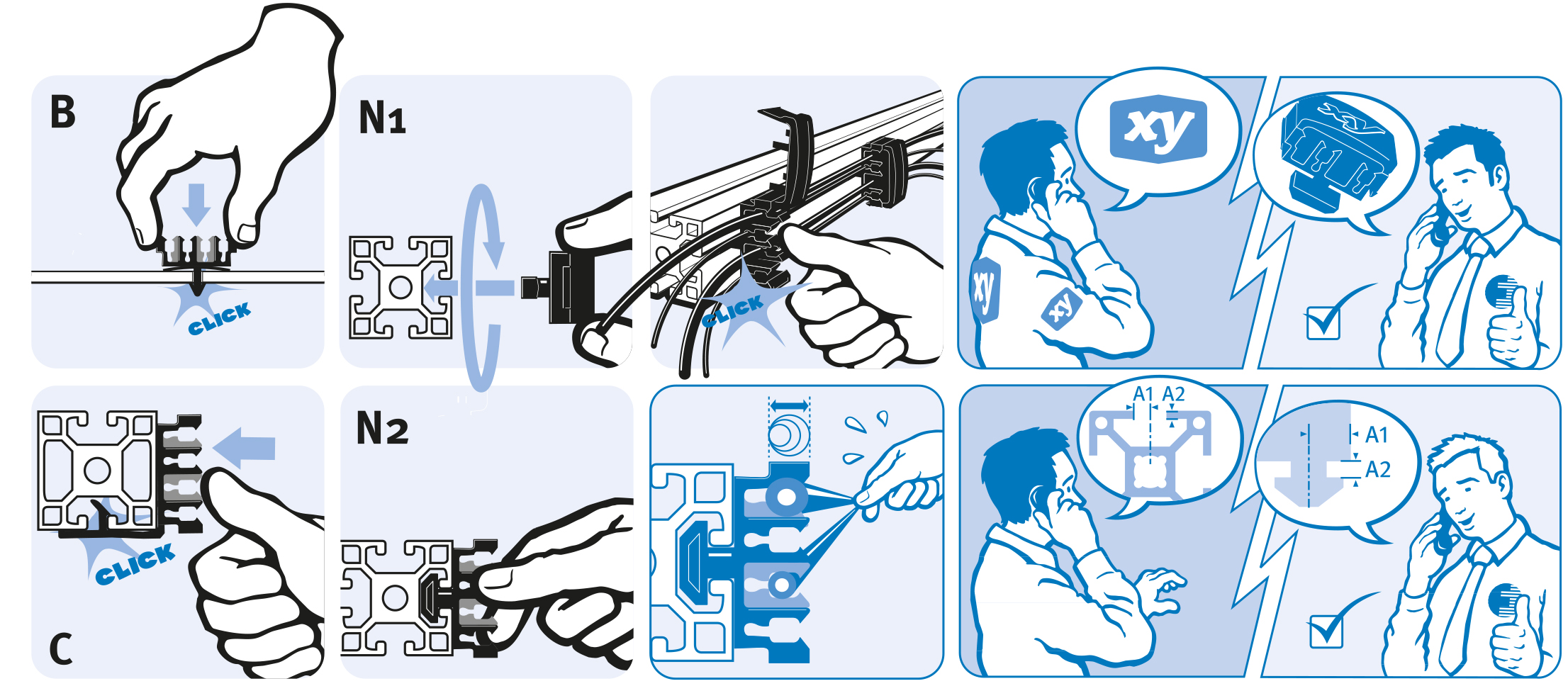

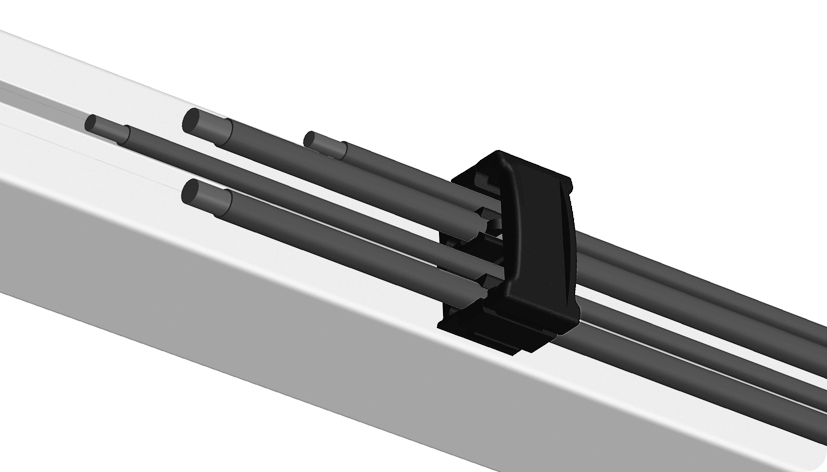

To attach of cables securely and quick and without cable ties, with strain relief; can be mounted into the slot by a quarter turn or by snapping in

Material:
Plastic PA

Specials:
Customized hammer, other sizes, other colors, material additives and with individual logo on request

Zolltarifnummer:
39269097900
(ECLASS 6.0): 27140790
(ECLASS 7.0): 27140790
(ECLASS 8.0): 27140790
(ECLASS 9.0): 27140790
(ECLASS 10.0): 27140790
(ECLASS 11.0): 27140790
(ECLASS 12.0): 27140790
(ECLASS 13.0): 27140790

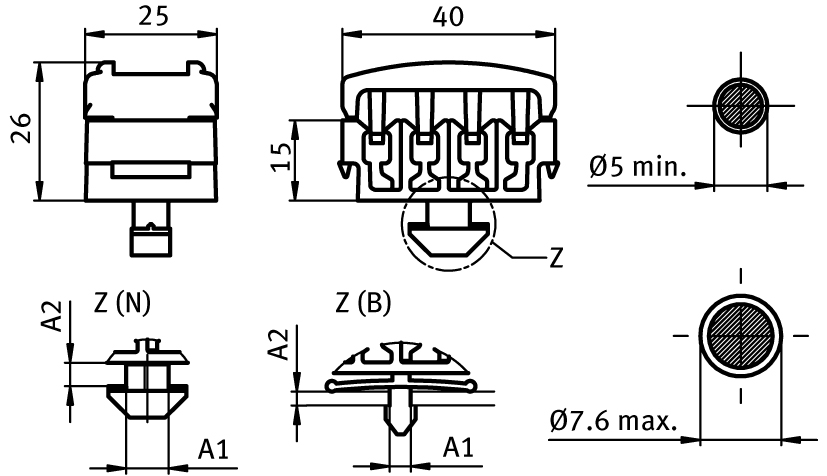

Model: Ø 5.0 - 7.6 mm outside diameter
Pack Quantity: 100 pieces
Weight (g): 10.4

Variants

Product ID A2 (Profile) (mm) Profile Version Slot N (mm) A1 (mm)
093610N10 5.7 (6.0) B (N) Hammer for slot 10 10.0
093611N08 4.4 (4.5) I (N) Hammer for slot 8 8.0
